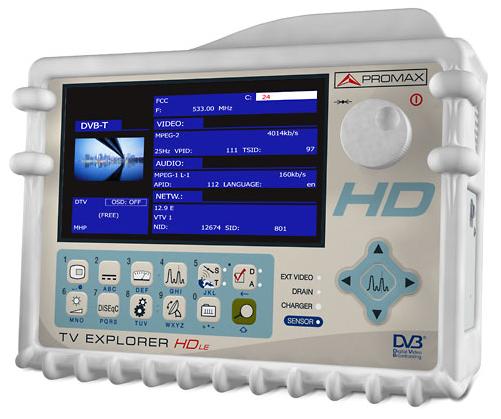

Analizor TV Digital HDTV inalta definitie cu decodare Video/ Audio MPEG Promax TV EXPLORER HD LE
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax TV EXPLORER HD LE




Brosura produs PDF, 0.34 Mb

Descriere

  • Video decoding: MPEG-2 and MPEG-4 H.264 for 1080i, 720p and 576i
  • Audio decoding: AAC, MPEG-2 and MPEG-1. Dolby Digital Plus optional
  • Video formats: SD (standard definition) and HD (high definition)
  • Screen formats: 16:9 and 4:3
  • DVB-T2 (optional), DVB-T/H, DVB-C and DVB-S/S2
  • CAM module (Conditional Access) for encrypted channels





The TV EXPLORER HD LE is an equipment formula that allows you to measure High Definition signals and display the broadcasted image, focusing on the most important part valued by the installer. Some features, which can be considered expendable, have been removed or are optional. Thus, its price has substantially improved and there is an open option to extend the equipment if necessary.







FREQUENCY MARGIN

From 5 to 1000 MHz and from 950 to 2150 MHz

VIDEO
  Digital modulations
  Resolutions
  Video formats
  Colour system
  TV standard
  Aspect ratio


DVB-T, DVB-H, DVB-S, DVB-S2, DVB-C
1080i, 720p, 576 i
MPEG-2, MPEG-4 H.264
PAL, NTSC, SECAM
M, N, B, G, I, D, K, L
16:9, 4:3

CONNECTIONS

RF, SCART, USB, Common Interface

DIGITAL MEASUREMENTS

Power, CBER, VBER, MER, C/N, Link margin, Noise Margin

DVB-S2 SIGNAL PARAMETERS

Symbol rate (QPSK) 1 to 45 Mbaud.
Symbol rate (8PSK) 1 to 45 Mbaud.

ANALOGUE MEASUREMENTS

Level, V/A, C/N, desviación, FM deviation and demodulation

OPTIONAL FUNCTIONS

DVB-T2 compatibility
Dolby Digital Plus audio decoder

ADVANCED FUNCTIONS

Channel searching and channel tables generation (EXPLORER)
Signal type automatic identifying (AUTO ID)
Constellation diagram for DVB-T/H, DVB-C, DVB-S and DVB-S2
Echoes analyser mode
Built-in spectrum analyser with direct access keys
Datalogger (measurements automatic acquisition and storage) for digital and analogue channels
SAT IF test (IF distribution network response for satellite band)
Attenuation test function (signal distribution network response for terrestrial band)
DiSEqC generator and LNB supply
Audio and Video recording and playing



Optiuni recomandate

OP-006-K  8VSB Constellation for US TV EXPLORER II



OP-005-19  Rack mount option for TV EXPLORER range



OP-009-D  DDP option



OP-009-T  DVB-T2 option for TV EXPLORER HD



OP-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factury built-in



PA-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-OS  5-2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-OS  -2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center
