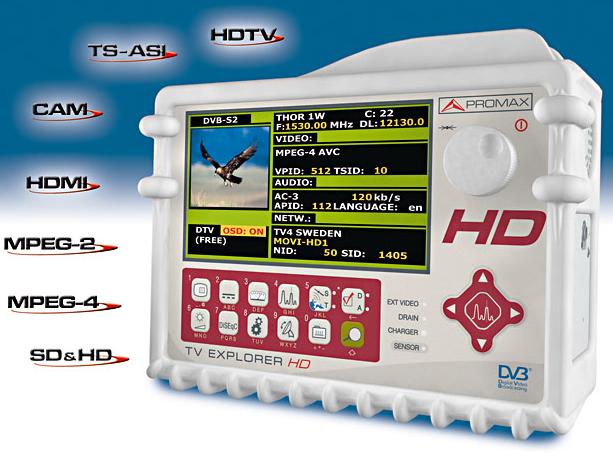

Analizor TV Digital HDTV inalta definitie cu decodare Video/ Audio MPEG Promax TV EXPLORER HD
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax TV EXPLORER HD




Brosura produs PDF, 0.43 Mb

Descriere

This new jewel of the PROMAX range will become a reference in the industry for being the very first meter of its kind to actually meet the requirements to be called a real HDTV instrument.

Would it be possible to have all those features in a 2 kg meter?

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: MPEG-1, MPEG-2 and AAC
  • Video formats: SD (standard definition) and HD (high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • DVB-T/H, DVB-C and DVB-S/S2
  • CAM module (Conditional Access) for encrypted channels
  • TS-ASI input and output



FREQUENCY MARGIN

From 5 to 1000 MHz and from 950 to 2150 MHz

VIDEO
  Digital modulations
  Resolutions
  Video formats
  Colour system
  TV standard
  Aspect ratio


DVB-T, DVB-H, DVB-S, DVB-S2, DVB-C
1080i, 720p, 576 i
MPEG-2, MPEG-4 H.264
PAL, NTSC, SECAM
M, N, B, G, I, D, K, L
16:9, 4:3

CONNECTIONS

RF, SCART, HDMI, TS-ASI (input and output), USB, Common Interface

DIGITAL MEASUREMENTS

Power, CBER, VBER, MER, C/N, Link margin, Noise Margin

DVB-S2 SIGNAL PARAMETERS

Symbol rate (QPSK) 1 to 45 Mbaud.
Symbol rate (8PSK) 1 to 45 Mbaud.

ANALOGUE MEASUREMENTS

Level, V/A, C/N, desviación, FM deviation and demodulation

ADVANCED FUNCTIONS

Channel searching and channel tables generation (EXPLORER)
Signal type automatic identifying (AUTO ID)
Constellation diagram for DVB-T/H, DVB-C, DVB-S and DVB-S2
Echoes analyser mode
Built-in spectrum analyser with direct access keys
Datalogger (measurements automatic acquisition and storage) for digital and analogue channels
SAT IF test (IF distribution network response for satellite band)
Attenuation test function (signal distribution network response for terrestrial band)
DiSEqC generator and LNB supply
Audio and Video recording and playing



Optiuni recomandate

OP-006-K  8VSB Constellation for US TV EXPLORER II



OP-005-19  Rack mount option for TV EXPLORER range



OP-009-D  DDP option



OP-009-T  DVB-T2 option for TV EXPLORER HD



OP-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factury built-in



PA-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-OS  5-2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-OS  -2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center
