This new jewel of the PROMAX range will become a reference in the industry for being the very first meter of its kind to actually meet the requirements to be called a real HDTV instrument.

Would it be possible to have all those features in a 2 kg meter?

Video decoding: MPEG-2 and MPEG-4 H.264
Audio decoding: MPEG-1, MPEG-2 and AAC
Video formats: SD (standard definition) and HD (high definition)
Video resolutions: 1080i, 720p and 576i
Screen formats: 16:9 and 4:3
HDMI interface
DTMB, DVB-C and DVB-S/S2
CAM module (Conditional Access) for encrypted channels
TS-ASI input and output

VIDEO Digital modulations Resolutions Video formats Colour system TV standard Aspect ratio	DTMB, DVB-S, DVB-S2, DVB-C 1080i, 720p, 576 i MPEG-2, MPEG-4 H.264 PAL, NTSC, SECAM M, N, B, G, I, D, K, L 16:9, 4:3
CONNECTIONS	RF, SCART, HDMI, TS-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS	Power, CBER, VBER, MER, C/N, Link margin, Noise Margin
ANALOGUE MEASUREMENTS	Level, V/A, C/N, desviaci�n, FM deviation and demodulation
ADVANCED FUNCTIONS	Channel searching and channel tables generation (EXPLORER) Signal type automatic identifying (AUTO ID) Constellation diagram Echoes detection Built-in spectrum analyser with direct access keys Datalogger (measurements automatic acquisition and storage) for digital and analogue channels SAT IF test (IF distribution network response for satellite band) Attenuation test function (signal distribution network response for terrestrial band) DiSEqC generator and LNB supply Audio and Video recording and playing

Optiuni recomandate

OP-006-K 8VSB Constellation for US TV EXPLORER II

OP-005-19 Rack mount option for TV EXPLORER range

OP-009-D DDP option

OP-009-T DVB-T2 option for TV EXPLORER HD

OP-009-OP Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factury built-in

PA-009-OP Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center

OP-009-OS 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in

PA-009-OS -2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center

OP-009-PS Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in

PA-009-PS Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center

Alte produse PROMAX

ANALIZOR DE SPECTRU OPTIC PORTABIL 1250..1650 NM PROMAX PROLITE-60

• WAVELENGTH RANGE : 1250 - 1650 nm
• SPAN RANGE: 10 nm - 400 nm
• RESOLUTION: 0.15 nm
• INPUT RANGE: -60 dBm to 10 dBm
• 3 HOURS AUTONOMY

TRANSMODULATOR DVB-T -> DVB-T PROMAX DT-212

• RF INPUTS: 2 independent DVB-T inputs
• RF OUTPUT: 2 combined independent DVB-T multiplexes
• PID Filtering with Filtering Table up to 32 PID
• direct COFDM input that can be tuned to any multiplex
• ouput in the UHF band
• regenerate the quality of the multiplex when received from a noisy source
• change the input channel to another channel with total quality preservation

SISTEM TRAINING PC CALCULATOR PERSONAL PROMAX EO-865

• assembly, installation and configuration of all the components composing a multimedia PC
• composed of widely spread and high reliability hardware components
• multiple test points enable the main electrical signals
• establish failure diagnostic and repairing methods

GENERATOR VIDEO ANALOG + TRANSPORT STREAM DIGITAL MPEG-2 PROMAX GV-998

• Multi-standard and multi-system analogue TV signals
• Test Signal generation in MPEG-2, SPI or ASI format
• Test Signal contains valid audio and video programs
• Moving MPEG-2 video pattern generation
• MPEG logos
• RS-232 remote operation

MPEG-2 TRANSPORT STREAM RECORDER, PROCESSOR, PLAYER PROMAX TG-130

• integrated DVB-T tuner that allows the TS capture in real time
• record a transport stream continuously for several minutes and then play it back
• work in the field where maybe it is not possible to find electricity available
• ASI Transport Stream Input: Maximum data rate 40 Mb/s
• RF Input: DVB-T from 35 to 100 dBµV
• ASI & SPI parallel Transport Stream Output: Maximum data rate 32 Mb/s
• Storing Capacity: Memory card 4 GB, 20 minutes approx (20 Mbits/s)

ANALIZOR CATV RETEA CABLU TV PROMAX-4

• measure the basic parameters to determine the quality of the signal in a CATV system
• different options depending on the needs
• one hand operation instrument with direct reading of the measurement
• illuminated LCD screen
• audio demodulator together with an speaker
• exchangeable input connector so to avoid damaging the instrument

SISTEM TRAINING AMPLIFICATOARE DE PUTERE PROMAX EP-834

• comprension of amplifier circuits and practices repairing it
• 6 audio inputs, a block diagram (input signal sources, filters, equalizers)
• RIIA Correction
• Loudness filter
• Subsonic filter

COMBINER 16 X DVB-T -> 4 X DVB-T PROMAX DT-700

• INPUTS FOR EACH COMBINER: 4 BNC female inputs 75 ? (16 total)
• OUTPUTS FOR EACH COMBINER: 1 BNC female output 75 ? (4 total)
• allows many different combinations to adapt to the needs of each system as best as possible
• used to mix the output RF signals of the COFDM modulators and transmodulators
• preserves better the original quality and maintains lower noise levels

AMPLIFICATOR PUTERE RF DVB-T SEMNAL COFDM 1W 30DBM PROMAX DT-730

• FREQUENCY BANDS: UHF from 470 MHz ~ 862 MHz
• 1 W RF power amplifier for COFDM signals
• both for single carrier or multicarrier system
• provides an amplified output of 30 dBm (137 dBµV)
• preserves the original signal quality and maintains a low noise levels

APARAT SUDURA FIBRA OPTICA PROMAX PROLITE-40B

• Automatic fusion splicing on 3 axis (X,Y, Z)
• Maximum accuracy
• Fibre aligning by means of core aligning method
• Single or simultaneous axis view.
• Fibre core can be display clearly.
• 5.7" colour LCD display.
• Temperature and atmospheric pressure indicators.
• Auto check quality of cleaved end face.

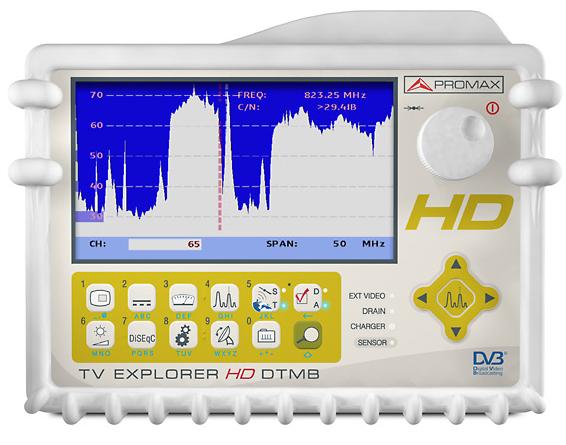

Analizor TV Digital HDTV China cu decodare Video/ Audio MPEG Promax TV EXPLORER HD DTMBPRODUS OBSOLET ( * SCOS DIN UZ )
