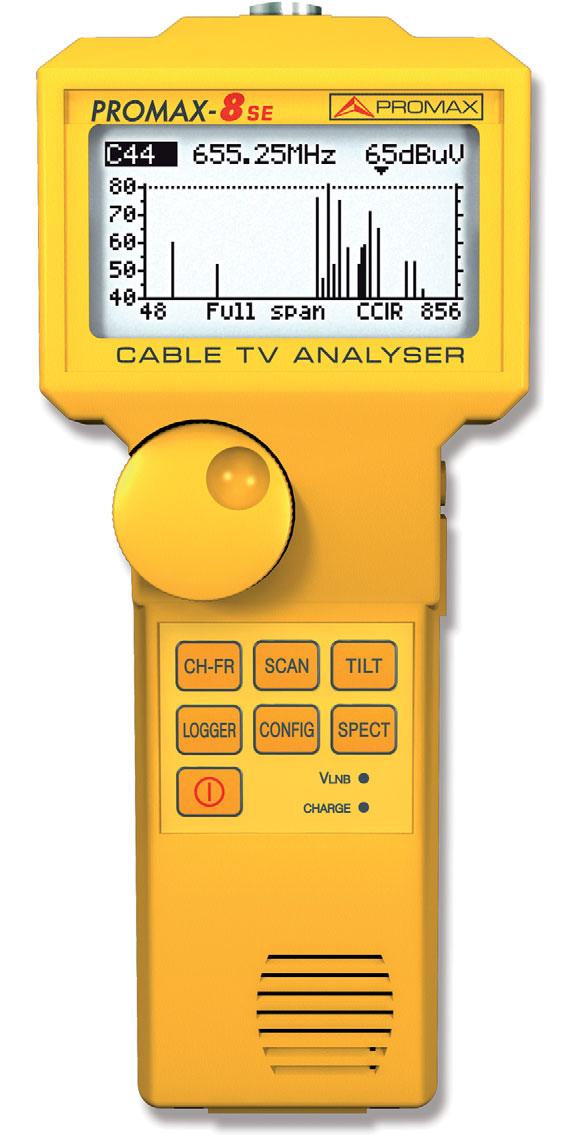

Analizor CATV retea cablu TV Promax-8 SE
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax-8 SE




Brosura produs PDF, 0.46 Mb

Descriere

  • MULTISTANDARD ANNEX A / B / C
  • ANALOGUE CHANNELS
  • DIGITAL CHANNELS
  • BROADBAND POWER DETECTION
  • SCAN
  • C/N, CSO, CTB
  • TRANSIENT DETECTOR
  • MAX AND MIN HOLD
  • CHANNEL POWER BY INTEGRATION
  • TILT
  • DATALOGGER
  • PRINTING
  • CONNECTION TO PC



Analyser that incorporates all the functions for the installation, verification and maintenance of CATV systems. It includes different configurations to measure in channel parameters such as Signal Level, Channel Power, V/A, C/N, CSO and CTB. Many different ways of presenting the information can be selected such as Channel measurements, SCAN, Spectrum with max. and min. hold, Datalogger, TILT, etc.



MEASUREMENTS

Digital Channel Power, Signal Level, V/A, C/N, CSO & CTB

PRESENTATION MODES

Channel measurements, channel sweep, spectrum with Max-Min hold, data acquisition, tilt

RESOLUTION

10 kHz
