Omicron OMS 605 System Portable on-line partial discharge diagnosis and monitoring system for various electrical assets

Cod: Omicron OMS 605




Brosura produs PDF, 2.06 Mb


Descriere

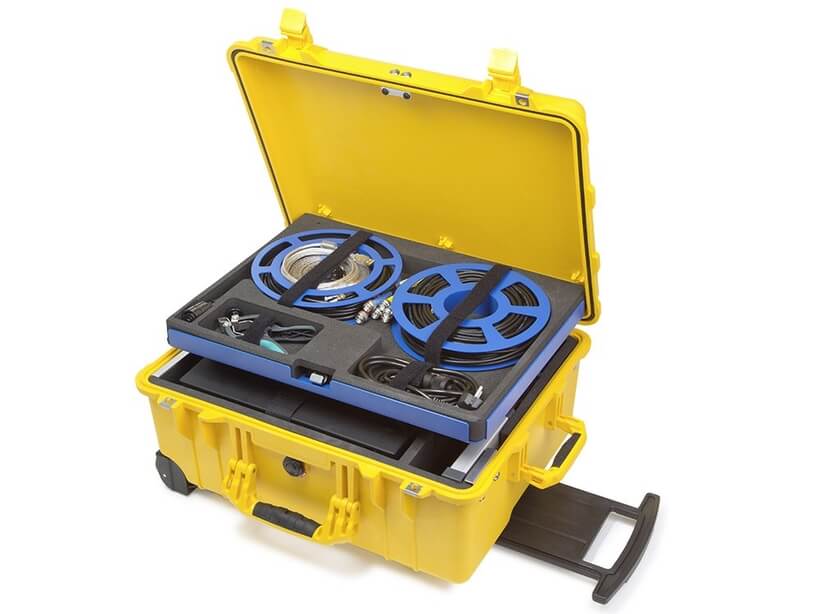

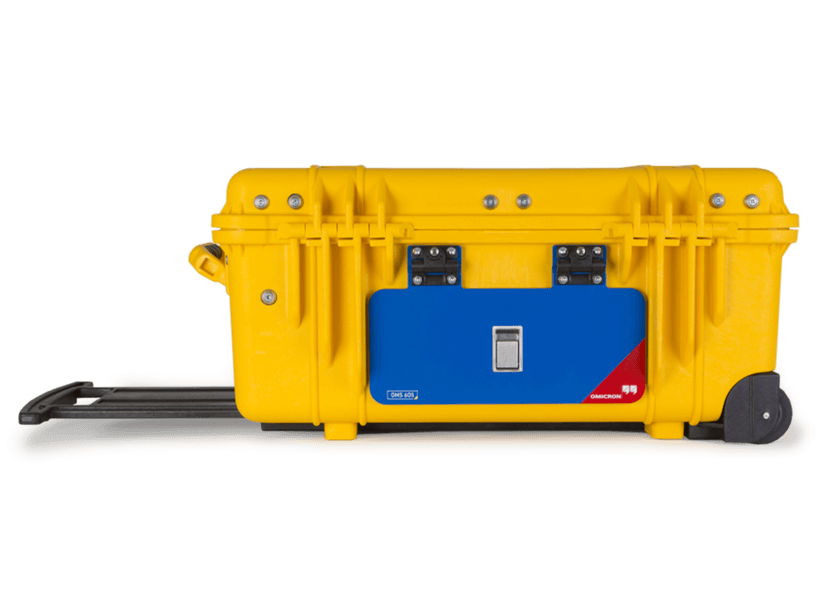

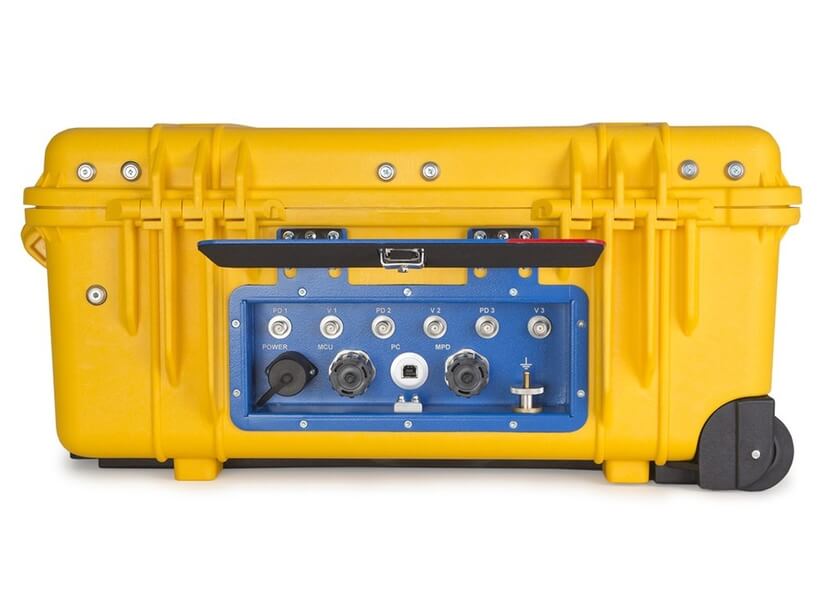

The OMS 605 is a portable, IEC 60270 compliant on-line partial discharge (PD) diagnosis and monitoring system designed for the periodic evaluation of the insulation condition in medium-voltage and high-voltage assets under load. All of the required hardware for periodic PD diagnosis and monitoring is contained in a wheeled case for easy transport to different locations. The OMS 605 can be used with a variety of capacitive and inductive PD sensors for the entire frequency range relevant to PD signals, including the ultra-high frequency range. Synchronous three-channel PD data acquisition ensures complete PD data acquisition. A fourth channel is available for an additional PD sensor or for noise gating hardware. Advanced noise and PD source separation techniques ensure reliable PD detection. The OMS 605 software visualizes the data and allows users to record live data streams and to conduct detailed post-analysis.



Features:

  • All-in-one solution for on-line PD diagnosis and monitoring
  • Easy to transport to different locations
  • Plug-and-play modules for fast system set-up
  • Compatible with a variety of PD sensors
  • Rugged design for reliable operation in industrial environments (IP65)
  • Advanced noise and PD source separation for reliable PD detection
  • Powerful software for PD data display and analysis


Alte produse OMICRON

OMICRON CMC 353 COMPACT AND VERSATILE THREE-PHASE RELAY TEST SET

• Compact design and light weight
• High current amplitudes for 5 A relay testing
• Powerful current sources for testing electromechanical relays



OMICRON TANDO 700 PRECISE MEASUREMENT OF DISSIPATION FACTOR, POWER FACTOR AND CAPACITANCE

• Reliable measurement accuracy in heavy interference environments
• Galvanic isolation for optimum safety during setup and operation
• Large input measurement range for a wide variety of test objects



OMICRON CMC 850 PROTECTION TEST SET DEDICATED TO IEC 61850

• Embedded functions accessible with standard Web browser
• Test Universe software operation
• 12 low level analog outputs, e.g. for stimulating devices with low level inputs

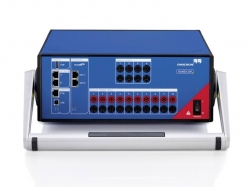

OMICRON DANEO 400 HYBRID SIGNAL ANALYZER FOR POWER UTILITY AUTOMATION SYSTEMS
