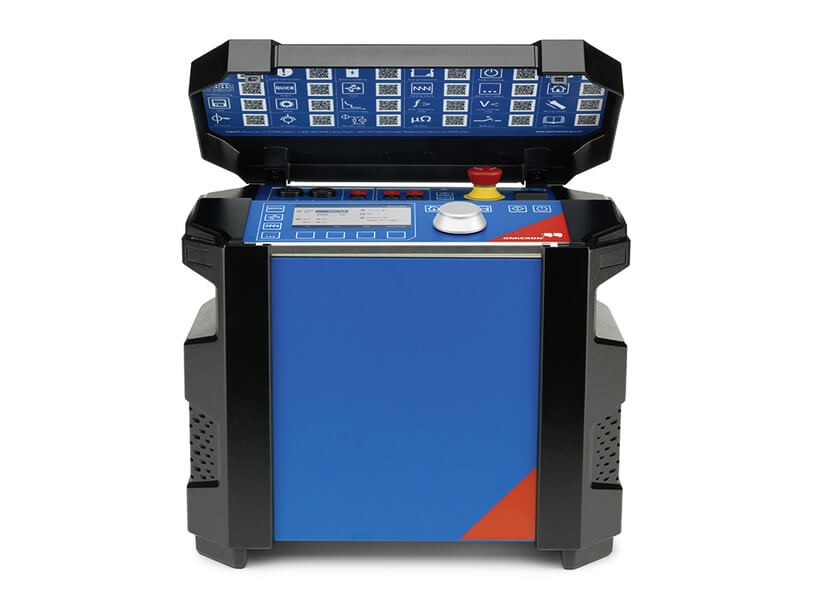

COMPANO 100 is the universal and easy to use solution for all types of basic testing duties in electrical energy systems. Controlled electronic sources allow the user to obtain exactly the desired value and to output signals with variable frequencies and other signal forms, automated ramps, and pure DC. The highly flexible inputs are configurable, for example, as binary inputs for relay testing, AC or DC voltage inputs or current inputs.

Due to its light weight (only 10 kg / 22 lbs), small size and unique battery operation, COMPANO 100 can be moved around easily and used for commissioning, maintenance and troubleshooting in substations, industry plants, railway systems or renewable energy plants.

Features:

Accurate output of desired value
Run complex predefined sequences and ramps
Polarity check signal generation for quick setup of wiring tests
Runs without mains power supply for several hours
High versatility
Portable due to light weight
