Brand: MTS

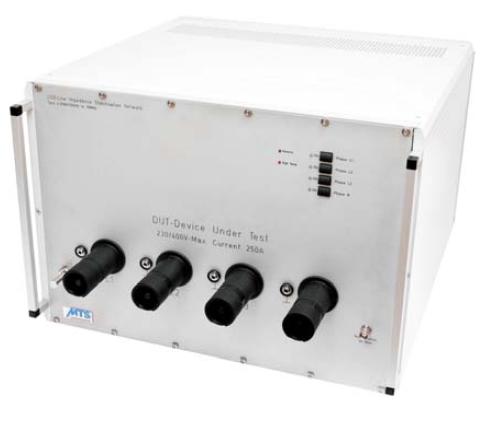

Stabilizator impedanta linie retea 150 kHz..30 MHz MTS LISN-4-250

Cod: MTS LISN-4-250




Brosura produs PDF, 0.13 Mb

Descriere

  • LISN according to CISPR, EN, VDE, ANSI
  • Frequency range 150 kHz to 30 MHz
  • Permanent current up to 4x 250 A
  • Test connection through protection conductor socket
  • Air-core coil
  • Small insertion loss
  • International style (G, GB, F, I, CH, USA)
  • Operating voltage switchable (115/ 230V)
  • 84 TE desktop case with 8 HU
  • Remote controlable over TTL-levels
  • Calibrated according to CISPR 16-1:1999


Description

Frequency range

Model

Power rating

2-Line V-LISN

9 kHz - 30 MHz

LISN-2-16

2x 16 A

4-Line V-LISN

150 kHz - 30 MHz

LISN-4-250

4x 250 A



Accesorii standard

  • High current connectors (8 pcs.)
  • Power cord, 1m
  • CD-ROM with manual, correction values and test certificate


Optiuni recomandate

  • Remote adapter (RS-232, USB or Rohde & Schwarz)
  • Cable assemblies
  • High current connect. cables
  • Calibration adapter
