Time and cost saving through fast failure search with real RF signals instead of simulations
Less error rate in test cases compared with software simulations
Independency from RF-radiation of the environment
Repeatable results
Ideal working due to customized configuration
Easy operation by manual control or by graphic user interface

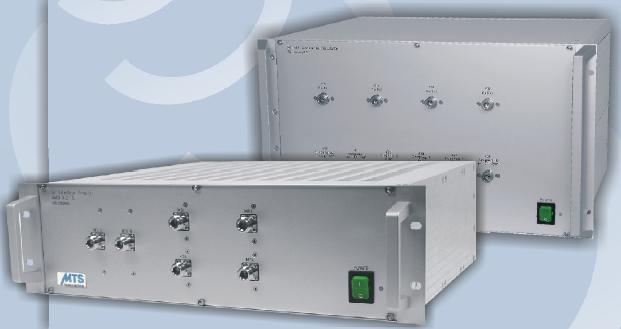

Air Interface Emulators / Adapters

Model	Configuration	Frequency range	Max. attenuation	Input power max.	Control
AIAD-2/2-LAN	2 inputs coupled to 2 outputs through 93 dB attenuators	800 MHz - 2400 MHz	93 dB	+26 dBm	LAN
AIAD-4/4-LAN	4 inputs coupled to 4 outputs through 93 dB attenuators	400 MHz - 2900 MHz	93 dB	+27 dBm	LAN and IEEE488
AIAD-4/1-1/8 TTL	4 inputs are coupled to 1 output through 93 dB attenuators, thereafter the signal is leaded with a 1 to 2 divider to one test output and to a 1 to 8 divider with 93 dB attenuators on each output	500 MHz - 6000 MHz	93 dB	+24 dBm	LAN
AIAD-4/2-DLU4/1	4 inputs are coupled to 2 outputs through 93 dB attenuators and 2x 4/1 delay lines	500 MHz - 5800 MHz	93 dB	+24 dBm	LAN
AIAD-6/6-TTL	6 inputs coupled to 6 outputs through 93 dB attenuators / test outputs	1800 MHz - 2400 MHz	93 dB	+30 dBm	LAN
AIAD-6/6-TTL-4G	6 inputs coupled to 6 outputs through 93 dB attenuators / test outputs	2000 MHz - 4000 MHz	93 dB	+30 dBm	LAN
AIAD-6/6 usable for LTE	6 inputs coupled to 6 outputs through 93 dB attenuators	800 MHz - 3000 MHz	93 dB	+30 dBm	RS-232 (optional IEEE, LAN, USB)
AIAD-6/2-Diplex	6 inputs coupled to 2 outputs through 93 dB attenuators	800 MHz - 2500 MHz	93 dB	+30 dBm	LAN, IEEE488, RS-232

Smart Antenna Simulator

Model	Configuration	Frequency range	Max. attenuation	Input power max.	Control
SAS-4/4-LAN	4 inputs and 5 outputs	2000 MHz - 4000 MHz	93 dB	+26 dBm	LAN

Standard Coupling Units

Model	Configuration	Frequency range	Max. attenuation	Input power max.	Control
SCF-0150 SCF-0151	2 paths with each 2 variable attenuators connected with 2/1 combiner to 1 output. Additional 3 hybrid couplers	800 MHz - 2900 MHz	93 dB	+30 dBm	RS-232, IEEE488, LAN and manual control
SCF-0300 SCF-0301-LAN	3 paths with each 2 variable attenuators connected with 2/1 combiner to 1 output. Additional 1 combiner 4/1 and 2 combiner 2/1	400 MHz - 2900 MHz	93 dB	+26 dBm	RS-232, and LAN

Alte produse MTS

Brand: MTS

ANTENA EMC LOG-PERIODICA DE BANDA LARGA 300..3000 MHZ MTS MTA-300-3000

• Frequency Range: 300..3000 MHz
• Type: EMC Wideband Antenna, logarithmical periodical
• Gain: 8 dBi typ.
• Power: 500 W CW (1000 W peak)

Brand: MTS

ANTENA HORN CASTIG STANDARD 500..2800 MHZ MTS MTA-SGH-1626

• Frequency Range: 500 MHz -2800 MHz
• Type: Standard Gain Horn Antenna, wideband double ridged
• Gain: 5 - 14 dBi
• Power: 300 W

Brand: MTS

ANTENA EMC HIBRIDA DE BANDA LARGA 60..6000 MHZ MTS MTA-60-6000

• Frequency Range: 60MHz - 6000 MHz (effective use 20 MHz - 6000 MHz)
• Type: EMC Wideband Antenna, hybrid
• Gain: 8 dBi typ.
• Power: 500 W CW (1000 W peak)

Brand: MTS

ANTENA BUCLA DE TRANSMISIE RADIATII FRECVENTA JOASA EMC/EMI 9 KHZ..30 MHZ MTS MTA-MLA-930R

• Frequency Range: 9 kHz - 30 MHz
• Type: Transmitting Loop Antenna
• Power: 30 W continously, 100 W for short periods (with external dummy-load)

Brand: MTS

PREAMPLIFICATOR ANTENA BANDA LARGA 30..3000 MHZ MTS MKV-822-0200

• Frequency Range: 30 MHz - 3000 MHz
• Gain: 16 dB
• Output power P at -1 dB min. -15 dBm

Brand: MTS

ANTENA EMC HIBRIDA DE BANDA LARGA 60..2000 MHZ MTS MTA-60-2000

• Frequency Range: 60MHz - 2000 MHz (effective use 20 MHz - 2000 MHz)
• Type: EMC Wideband Antenna, hybrid
• Gain: 8 dBi typ.
• Power: 500 W CW (1000 W peak)

Brand: MTS

INCINTA DE ECRANARE RADIATII ELECTROMAGNETICE 500..6000 MHZ MTS MSB-0200

• Highest quality materials for extended life time and high test appearance
• Economical solution for high RF shielding levels
• Usable for frequencies between 500 MHz to 6000 MHz
• Easy operation of the test samples directly through the built-in flexible wire mesh
• Weight optimized structure improves the mobility

Brand: MTS

ANTENA DE MASURA RADITII MAGNETICE FRECVENTE JOASE 9 KHZ..30 MZ MTS MTA-MLA-930A

• Frequency Range: 9 kHz - 30 MHz
• Type: Active Magnetical Loop, hand-guided

Brand: MTS

ANTENA EMC BICONICA DE BANDA LARGA 20..300 MHZ MTS MTA-20-300

• Frequency Range: 20..300 MHz
• Type: EMC Wideband Antenna, biconical
• Gain: 0 dBi typ.
• Power: 100 W (200 W peak)

Brand: MTS

INCINTA DE ECRANARE RADIATII ELECTROMAGNETICE 700..4200 MHZ MTS MSB-0035-VGA-LAN

• Highest quality materials for extended life time and high test appearance
• Economical solution for high RF shielding levels
• Usable for frequencies between 700 MHz to 4200 MHz, such as GSM / DCS / DECT / UMTS / RFID / ZigBee / Bluetooth /
• WLAN etc.
• Easy operation of the test samples directly through the built-in flexible wire mesh
• Weight optimized structure improves the mobility
