Highest quality materials for extended life time and high test appearance
Economical solution for very high RF shielding levels and reproducible test scenarios to avoid time-consuming and expensive tests at EMC laboratories
Usable for frequencies between 500 MHz to 6000 MHz, such as GSM / DCS / DECT / UMTS / RFID / ZigBee / Bluetooth / WLAN etc.
Interior reflections reduction by RF foamabsorber material
Optional: Additional reflection reduction byerrite absorbers beneath the foam absorber material(= Shielding Box MSB-0022)
Weight optimized structure improves themobility
Highest safety standards through increased slip resistance and gas prop cover holder
Integrated universal attachment for most types of mobile phones
A wide range of supply and communication interfaces are included as standard
Optional: interfaces and connectors to customers specifications
Shielding Boxes with other dimensions can be designed according to customers individual requirements

Shielding Boxes

Model	Frequency Range	Dimensions (without handles and connectors) (L x W x H in mm)	Connectors
MSB-0200 Standard Box	500 MHz - 6000 MHz	Outside: 418 x 268 x 163 Inside: 402 x 252 x 113 (L x W x H in mm)	2x N connections, 2x SUB-D 9-pole (RS-232), 2x2 USB 2.0, 2x banana sockets (voltage connectors) and 1x 230 V power plug
MSB-0035-VGA-LAN	700 MHz - 4200 MHz	Outside: 666 x 466 x 224 Inside: 650 x 450 x 168 (L x W x H in mm) also for notebooks	2x N connections, 1x VGA, 1x SUB-D 9-pole (RS-232), 2x USB 2.0, 1x LAN and 1x 230 V power plug

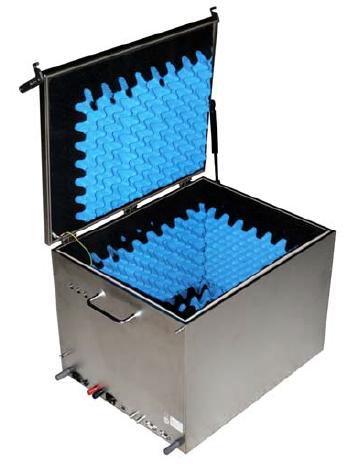

MSB-0021 with absorber MSB-0022 with absorber and ferrites	500 MHz - 6000 MHz	Outside: 550 x 450 x 400 Inside: 370 x 270 x 200 (L x W x H in mm)	3x SMA connections, 2x twinax BNC, 2x SUB-D 9-pole (RS-232), 1x XLR, 1x USB, 2x banana sockets (voltage connectors) and 1x 230 V power plug
MSB-0023 Mobile Robot	700 MHz - 4200 MHz	Outside: 12 HU x 19" x 603 Inside: 524 x 430 x 410 (L x W x H in mm)	1x N/SMA adapter, 2x SMA connections, 3x SUB-D 25-pole, 2x SUB-D 9-pole SUB-D (RS-232), 1x USB 2.0, 2x fiber optic connections, 1x 230 V power plug and door interlock
