Brand: MTS

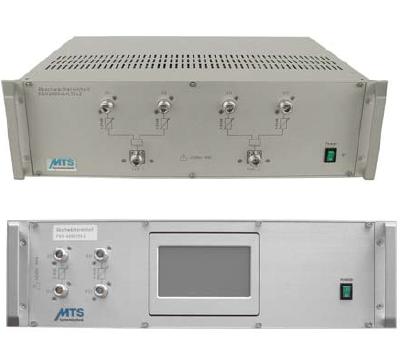

Atenuatoare programabile semnale comunicatii MTS

Cod: MTS PAH




Brosura produs PDF, 1.07 Mb

Descriere

  • Frequency ranges: 200..800 ~ 2900..4000 MHz
  • Max. attenuation: 65..93 dB
  • Input power max.: +26 dB
  • Control: RS-232, IEEE488, LAN and manual control


Model

Configuration

Frequency range

Max. attenuation

Input power max.

Control

PAH-4000x4/

LT2x2

2x paths with each 2 pcs. programmable attenuators PAH-4000 and 1 pc. power divider LT2

800 MHz - 2900 MHz

93 dB

+26 dBm

RS-232 and IEEE488

PAH-4000/93-8

8 pcs. attenuators model PAH-4000/93

800 MHz - 3000 MHz
(up to 8 GHz with reduced specifi-cations)

93 dB

+26 dBm

RS-232, IEEE488 and 3x7-segment display with up/down buttons

PAH-4000/93-2

2 pcs. programmable attenuators PAH-4000/93

200 MHz - 4000 MHz

93 dB

+26 dBm

RS-232, IEEE488, LAN and manual control (touch panel)

PAH-8000x3/

LT4

3 pcs. programmable attenuators PAH-8000 and 1 power divider LT4

400 MHz - 2900 MHz

93 dB

+24 dBm

RS-232, IEEE488, LAN and manual control (touch panel)

ELTG-4000/55-8

8x attenuation lines, 3x splitters/combiners, 4x hybrid couplers

500 MHz - 4000 MHz

65 dB

2W

LAN, RS-232 and manual control (touch panel)

Customer specified

On request!







RS-232, IEEE488, LAN, manual control or other
