Type equipping with exhaust fan and intake
As the temperature rise in box is suppressed, the ideal test environment is provided even during long time operation.

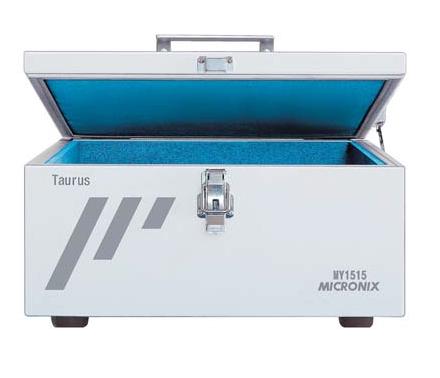

Model MY1515

Outside dimensions

Inside dimensions
Weight approx.
Shielding characteristics
Reflection loss
Fan

Connectors
I/F Module installation capacity

Type equipping with exhaust fan and intake

465(W)�465(D)�214(H)mm
400(W)�400(D)�150(H)mm
10kg (without I/F Module)
more than 60dB @ 2.4GHz
more than 20dB @ ? 2.4GHz, MYA-75
0.46m3/min
(the maximum force of the wind @ 50Hz)

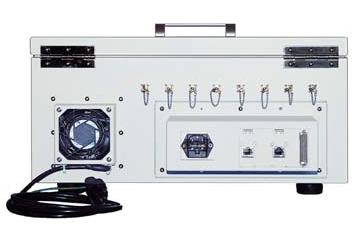

8 pcs of SMA @ back
1 module @ back

Optiuni recomandate

Small size (MY1510)	I/F Module
Medium size (MY1520)	I/F Module
	Wooden table
	Radio wave absorber(MYA-77)
	Radio wave absorber(MYA-79)
Large size (MY1530)	I/F Module
	Wooden table
	Turn table unit
	Radio wave absorber(MYA-75)
	Radio wave absorber(MYA-79)

The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted. All of the I/F modules are common to Taurus series.

Option	Mounted connectors
IFM1	IFM1 AC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc)
IFM2	IFM2 AC(1pc), LAN(2pcs), USB(2pcs), D-sub9pin(1pc)
IFM3	AC(1pc), LAN(2pcs), USB(2pcs), D-sub25pin(1pc)
IFM4	DC(1pc), LAN(1pc), USB(1pc), D-sub9pin(1pc), D-sub25pin(1pc)
IFM5	SMA(2pcs), BNC(2pcs), N(2pcs), Triaxial(2pcs)
