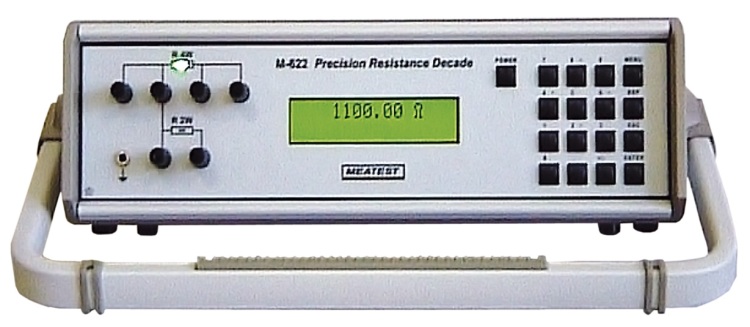

Decada rezistente de precizie Meatest M622

Cod: Meatest M622




Brosura produs PDF, 0.15 Mb

Descriere

  • Resistance range 1.000 00 O - 1.200 000 MO
  • Accuracy 0.005%
  • Resolution from 10 µO
  • Range of Pt sensor temperature simulation -200°C - +850°C
  • Connection 2, 3, 4-wire
  • Remote control RS232, optionally IEEE488
  • Internal ACCU/power line adapter





Description

Model M622 is high accuracy resistance decade box with range from 1 O to 1.2 MO. Basic accuracy is 0.005 %, best resolution on the lowest range is 10 µO. Decade is formed from high stable foil resistors switched with combination of relays. Built-in software contains function of RTD temperature sensor simulation with parameters according to IEC (DIN) or US standards, temperature setting in degree of Celsius or Fahrenheit. Decade is supplied from internal accumulator or from external power line adapter. Both model with RS232 interface and IEEE488 bus is available.

Resistance decade is determined for calibration laboratories for ohmmeter and multimetr testing and for industry as device for quality testing as well. Decade can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.







Accesorii standard

  • Precision Resistance Decade M622
  • Power line adapter
  • Cable RS 232 (for RS232 basic version only)
  • Application software
  • User’s manual


Optiuni recomandate

Bus M622-V1xxx - RS232

M622-V2xxx - IEEE488

Additional functions M622-Vx0xx - none

M622-Vx1xx - Short / Open

Housing M622-Vxx0x - table version

M622-Vxx1x - module 19", 3HE
