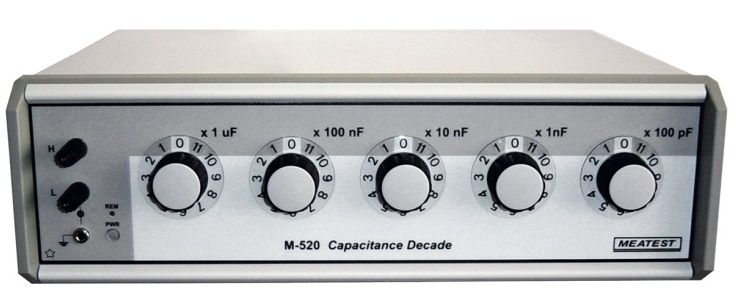

Decada capacitiva calibrare RLC-metre Meatest M520

Cod: Meatest M520

Brosura produs

PDF, 0.06 Mb

Descriere

Designed for RCL meters calibration
Range of capacitance from 100 pF to 12 mF
Basic accuracy 0.25 %
Maximal operating voltage 50 V
Power supplying from internal battery or power line adapter
Remote control RS-232

Description

Capacitance decade is designed especially for calibration of capacitance ranges of multimeters and RCL meters. Due to its versatility it can be used in cal labs, repair centers and in production lines, where remote control of capacitance is requested. Main parts of the M-520 decade create relays with high current capability and capacitors with polypropylen dielectricum. Important feature is calibration procedure, which allows to recalibrate decade easily. Process of recalibration consists of measuring of partial capacitors inside the instrument and writing new calibration values into internal calibration memory. Calibration can be performed via RS-232 interface with calibration SW. Capacitance decade contains both calibration data for floating and grounding connection. Decade can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.

Accesorii standard

Capacitance decade M-520
Power line adapter
RS 232 cable
Application SW
Operation manual
