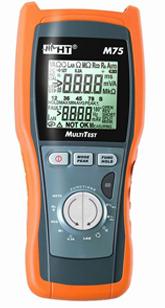

Multimetru portabil verificare cablu retea LAN VDE HT Italia M75

Cod: HT Italia M75




Brosura produs PDF, 0.42 Mb

Descriere

DMM SECTION

  • DC Voltage
  • AC TRMS Voltage
  • AC TRMS Current with External Clamp
  • AC TRMS Leakage current with external clamp (optional)
  • DC Current
  • Resistance
  • Continuity test with buzzer
  • Frequency with test leads
  • Frequency with External Clamp
  • MIN/MAX/AVG functions
  • PEAK function with response time 1ms
  • HOLD function



SAFETY TEST SECTION

  • Continuity test of protective conductors with 200mA
  • Insulation Resistance measurement with 500VDC
  • Trip-out time of RCDs type AC Standard with test current of 30mA, 30x5mA, 100mA, 300mA
  • Global Earth Resistance without RCD tripping
  • Phase sequence indication at 1 or 2 wires
  • Phase coincidence indication at 1 or 2 wires
  • Leakage current (with HT96U optional clamp + NOCANBA connector)
  • AUTOTEST function: automatic sequence test of Global Earth Resistance + RDC test + Insulation test with OK / NOT OK indications LAN SECTION
  • Test executed on twisted pairs cables UTP and STP with RJ45 connector
  • Wire mapping control of following wrong conditions:
  • OPEN, SHORT, CROSS, REVERSE, SPLIT, MISWIRE message at display
  • Quickly selection of cables pairs
  • Automatic detection of remote control units (from #1 to #8)
  • AutoPowerOFF
  • Low battery indication


Accesorii standard

  • HT4003: 400A AC clamps
  • C2075: two safety banana + Shuko plug cable
  • KIT0075: kit of 2 Test leads + 2 alligator clips
  • N° 2 Remote identifier # 1, # 2
  • N° 3 Patch cables, 30 cm, RJ45  RJ45 connectors
  • BORSA75: Carrying bag
  • Calibration Certificate ISO9000
  • Instruction manual
  • Warranty card


Optiuni recomandate

  • HT96U: leakage current clamp 1-100-1000A/1V 54mm max diameter
  • NOCANBA: adaptor for connection HT96U clamp
  • REM38: N° 6 Remote unit # 3, # 4, # 5, # 6, # 7, # 8
  • REM3: remote unit #3 + connection cable RJ45-RJ45
  • REM4: remote unit #4 + connection cable RJ45-RJ45
  • REM5: remote unit #5 + connection cable RJ45-RJ45
  • REM6: remote unit #6 + connection cable RJ45-RJ45
  • REM7: remote unit #7 + connection cable RJ45-RJ45
  • REM8: remote unit #8 + connection cable RJ45-RJ45
