Measurement of output voltage from module/string up to 1000V DC
Measurement of output current from module/string up to 10A DC
Measurement of solar irradiation [W/m2] with reference cell
Measurement of environmental/module temperature, automatic or by means probe
Measurement of output DC and nominal power from module/string
Numerical and graphical display of I-V characteristic
Measurement of the resistance of photovoltaic module series
Mechanical inclinometer for the detection of the incidence angle of solar irradiation
4-terminal measuring method
Comparison with standard conditions (STC 1000 W/m2, 25C)
Evaluation of testing result: OK / NO
Management of up to 30 types of photovoltaic modules in the internal database
Internal memory for data saving
Recalling results on the display
Optical/USB port for PC connection
Help on line at display

Accesorii standard

KITGSC4: Kit including 4 cables + 4 alligator clips
KITPVMC3: Kit including 2 Multi-Contact 3 adapters for MC3 connector
KITPVMC4: Kit including 2 Multi-Contact 3 adapters for MC4 connector
HT304: Reference cell with tilt stand and connection cable
M304 : Mechanical inclinometer
TOPVIEW2006: Software on CD-ROM and optical-to-USB connection cable C2006
BORSA2051: carrying bag
ISO9000 calibration certificate
User manual

Optiuni recomandate

SOLAR-02: remote unit for irradiance/temperature measurement
KITPVEXT25M: set of 2 banana cable 4mm, Green/Black, 25m lenght
PT300N: Double temperature probe (PT1000 + environmental)
SP-0400: free hands kit

Prezentare Video HT IV-400

Alte produse HT ITALIA

INREGISTRATOR CURENTI RETEA ELECTRICA MONO/ TRI-FAZICA HT ITALIA XL421/ XL422

• TRMS AC current measure up to 2500A
• Recording with sampling programmable period
• Manual activation of recording
• RS-232 interface
• Programming with DATALINK software

CLESTE DE CURENT POWER-METRIC CU ANALIZA PUTERE HT ITALIA HT9022

• DC, AC + DC TRMS current up to 1000A
• DC, AC + DC TRMS voltage up to 1000V
• Resistance and continuity test
• Active, Reactive, Apparent power on Single/Three phase systems
• Active, Reactive energy on Single/Three phase systems
• Power Factor on Single/Three phase systems
• Harmonic voltage/current up to 25th with THD% calculation
• PC connection via Bluetooth

TERMOMENTRE FARA CONTACT INFRAROSU HT ITALIA

• Infrared temperature measurement from -50°C to 1000 °C
• Emissivity regulation
• Distance / Spot ratio of 50:1
• Laser pointer activation

THT600 CAMERA INFRAROSU 384X288PXL

• Rezoluție IR 384x288 pxl
• Interval de temperatură -20° ÷ 650°C
• Frecvență imagine 50Hz
• Sensibilitate termică / NETD <0.05°C @ 30°C / 50mK
• Câmp vizual (FOV) 17° x 12.7°

MULTIMETRU PORTABIL VERIFICARE CABLU RETEA LAN VDE HT ITALIA M75

• DC Voltage
• AC TRMS Voltage
• Continuity test of protective conductors with 200mA
• Insulation Resistance measurement with 500VDC
• Global Earth Resistance without RCD tripping
• Test executed on twisted pairs cables UTP and STP with RJ45 connector
• Quickly selection of cables pairs

MULTIMETRU CALIBRATOR DIGITAL PORTABIL DE PROCES HT ITALIA HT8000

• Generation of output voltage signal with amplitude up to 10VDC
• Voltage measurement up to 10VDC
• Generation of output current signal with amplitude up to 24mADC
• Current measurement up to 24mAVDC
• Current measurement in percentage format (4-20mA)
• Loop current measurement of external transducers

MULTIMETRU PORTABIL MASURA REZISTENTA DE IMPAMANTARE HT ITALIA M73

• Trip out time measure on AC Standard RCD's
• Trip out current: 30, 30x5, 100, 300mA
• Global Earth Resistance with 0.1Ohm resolution
• Global Earth Resistance without RCD's tripping
• DC Voltage
• AC TRMS Voltage
• Automatic detection of AC/DC signals

MEGOHMMETRU DIGITAL PORTABIL IZOLATIE SI CONTINUITATE CONDUCTOARE IMPAMANTATE 4 GOHM 1000V HT ITALIA M70

• Insulation with test voltage 250, 500, 1000VDC
• Up to 4Gohm measurement range
• Automatic discharge of device under test
• LOCK feature for continuous measurements
• Programmable timer up to 60s
• Continuity of earth conductors with test current of 200mA
• A/DC voltage up to 600V
• Resistance and continuity test with buzzer

TESTER DIGITAL MASURARE PRIZE DE PAMANT SI REZISTENTA BUCLA IMPAMANTARE RCD HT ITALIA SPEED 418

• Tripping time on RCD type A, AC General and Selective with currents 10, 30,100, 300, 500mA
• Tripping time on RCD type AC General with currents 30, 30x5, 100, 300mA
• Tripping current on RCD type A, AC General and Selective Global earth resistance without RCD tripping
• Line/Loop impedance, also with high-resolution (0.1m )( with optional accessory IMP57)
• Optical/USB interface for connection to PC

HT PVCHECKS-ONE TESTER VERIFICARE SI PUNERE IN FUNCTIUNE SISTEME FOTOVOLTAICE PANA LA 1000V / 30A

• Continuitatea circuitului de protecție cu 200mA
• Polaritate
• Tensiunea în circuit deschis Voc a modulelor fotovoltaice și a șirurilor 1000V
• Curent de scurtcircuit Isc pe modulele fotovoltaice și șiruri 30A
• Izolația șirului/câmpului fotovoltaic cu tensiune de testare 250, 500, 1000VDC
• Măsurarea indicelui de polarizare P.I.
• Raport de absorbție dielectrică D.A.R
• Funcție GFL pentru localizarea poziției defectului în șir
• Categorie de măsurare CAT III 1000V
• Funcție OPT pentru testarea izolației pe șiruri fotovoltaice în prezența dispozitivelor MLPE

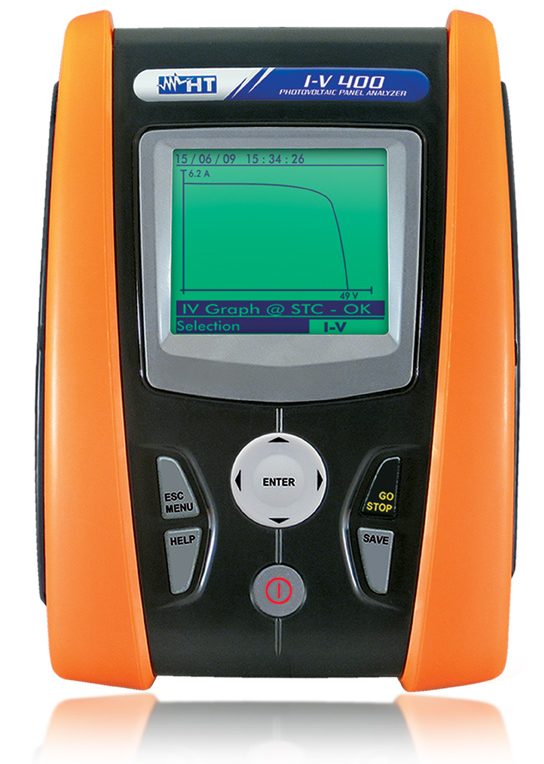

Tester verificare caracteristica I-V in panouri fotovoltaice si celule solare HT I-V400PRODUS OBSOLET ( * SCOS DIN UZ )
