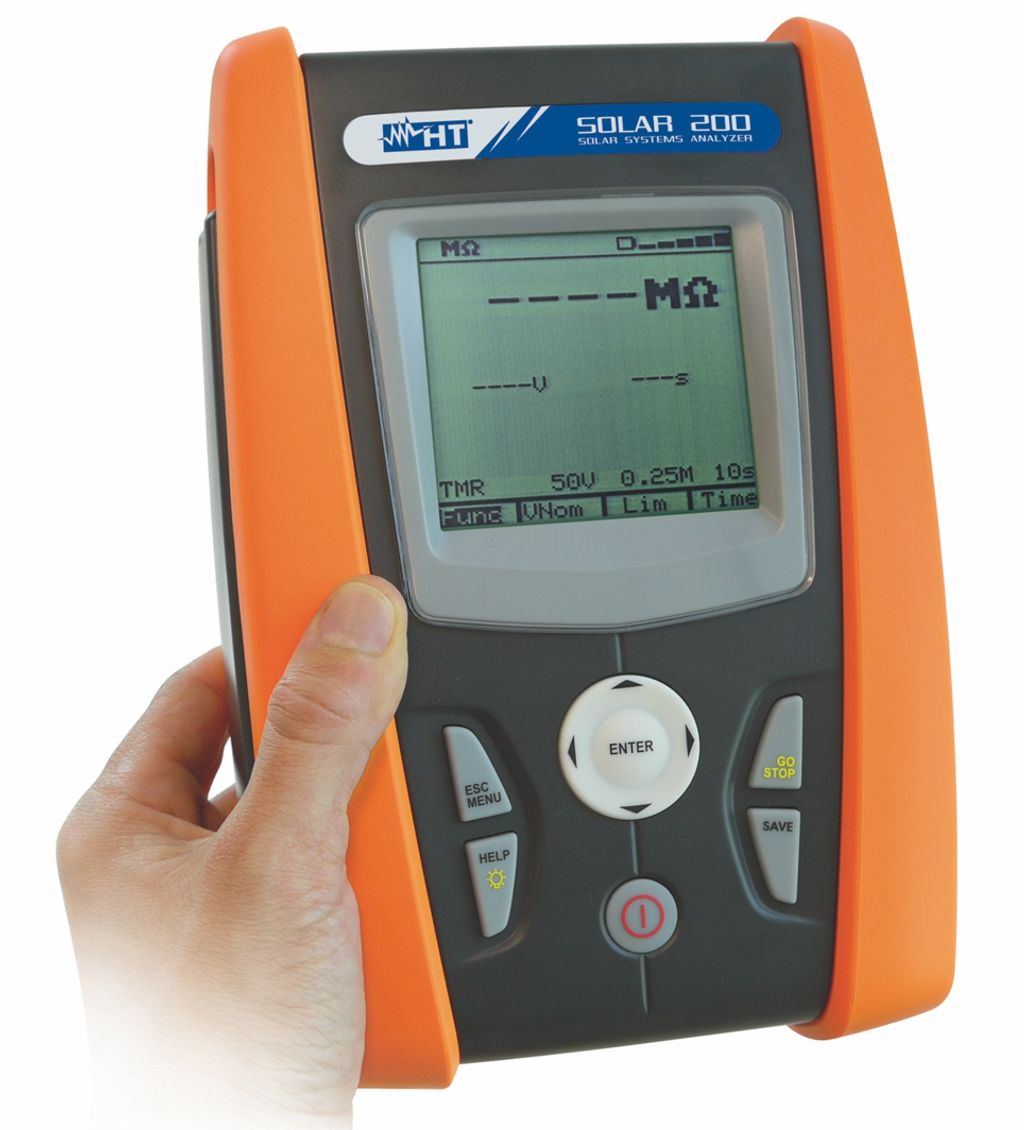

Tester securitate electrica sisteme si izolatie instalatii fotovoltaice HT Italia Solar200
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: HT Italia Solar200




Brosura produs PDF, 0.38 Mb


Descriere

  • Continuity of protective conductors with 200mA
  • Insulation with test voltages of 50, 100, 250, 500, 1000VDC
  • Tripping time of RCDs type A, AC, general and selective up to 500mA
  • Tripping current of RCDs type A, AC, general and selective up to 500mA
  • Impedance of Loop/Line P-N, P-P, P-PE, also with high resolution (0,1mOhm)
  • Ipsc calculation.
  • Total earth resistance with no RCD tripping
  • Contact voltage
  • Phase sequence
  • Activation of measurements with optional remote probe PR400
  • Saving of results
  • Recalling results on the display
  • Optical/USB interface for PC connection
  • Help on line on the display


Accesorii standard

  • C2033X: 3-banana to Shuko plug cable
  • UNIVERSALKIT: Kit including 3 cables + 3 alligator clips + 1 test lead
  • BORSA75: Carrying bag
  • User manual
  • Calibration certificate ISO9000


Optiuni recomandate

  • TOPVIEW2006: Software on CD-ROM and optical-to-USB connection cable C2006

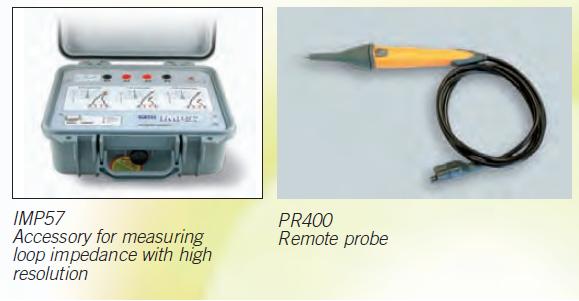

  • PR400: Test lead with remote START button
  • IMP57: High resolution impedance measurements adapter
  • SP-0400: Free hands kit
