PV-ISOTEST Tester securitate electrica panouri solare cu functie detectie panou defect

Cod: HT PV-ISOTEST




Brosura produs PDF, 1.42 Mb
Brosura produs PDF, 0.25 Mb


Descriere

Multifunction instrument for electrical safety testing and troubleshooting of photovoltaic systems up to 1,500V DC.

- Insulation measurement up to 1,500V DC even on live systems
- Localization of the faulty module through the new GFL function
- Continuity of the protective conductor with 200mA

PV-ISOTEST represents a real innovation in the panorama of PV verification and testing instrumentation. PV-ISOTEST measures the insulation resistance of a single module, a string or even an entire photovoltaic field up to 1,500 V DC according to IEC/EN62446 standard. Traditional insulation meters would require a DC-rated switch-box to short-circuit the positive and negative terminals of the module/string/PV field under test. With PV-ISOTEST the use of any external device is not required, PV-ISOTEST carries out the measurements in full autonomy and self-sufficiency. In addition, through the new GFL (Ground Fault Locator) function, PV-ISOTEST indicates the position of any poor insulation on a string of the photovoltaic system, due, for example, to water or humidity leakage.


Functions

Measurement category

CAT III 1500V DC / CAT III 1000V AC

AC TRMS voltage measurement

3 ÷ 1000V

DC voltage measurement

3 ÷ 1500V

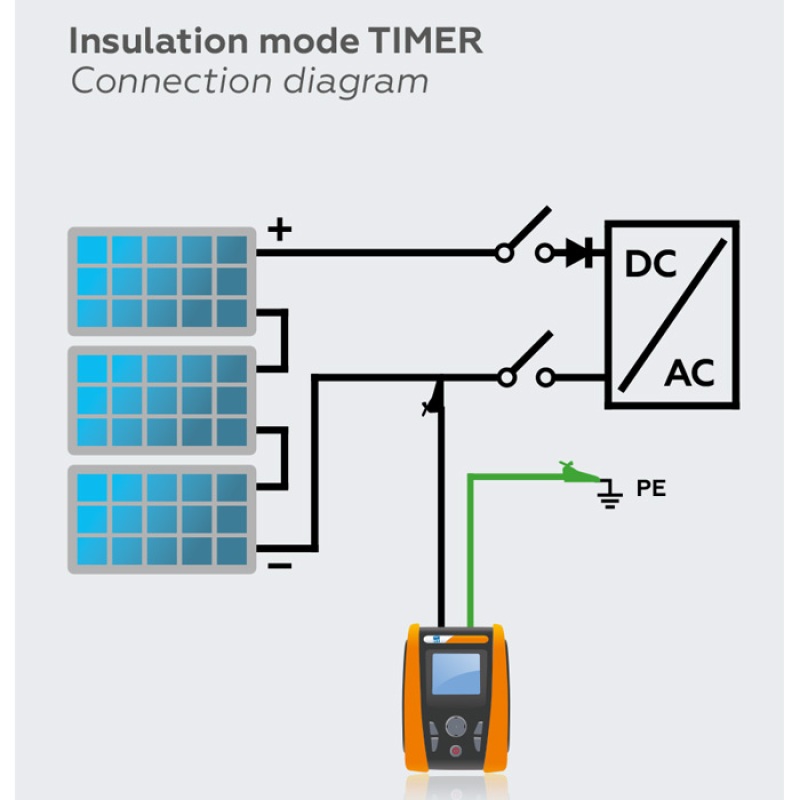

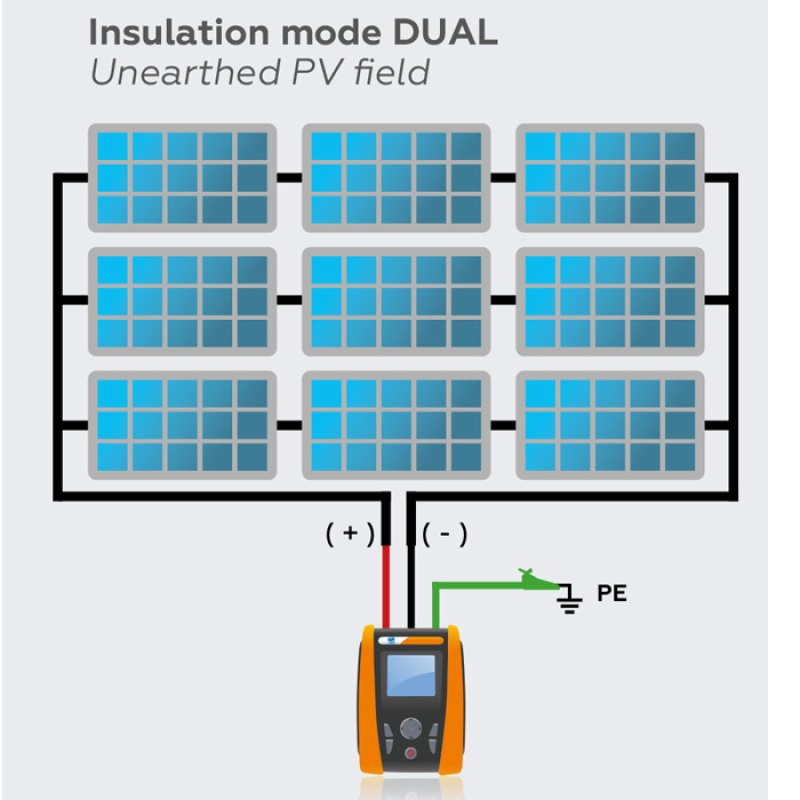

Insulation resistance

250, 500, 1000, 1500V

GFL function to locate the fault position in the string



Measurement of polarization index P.I.



Dielectric absorption ratio D.A.R



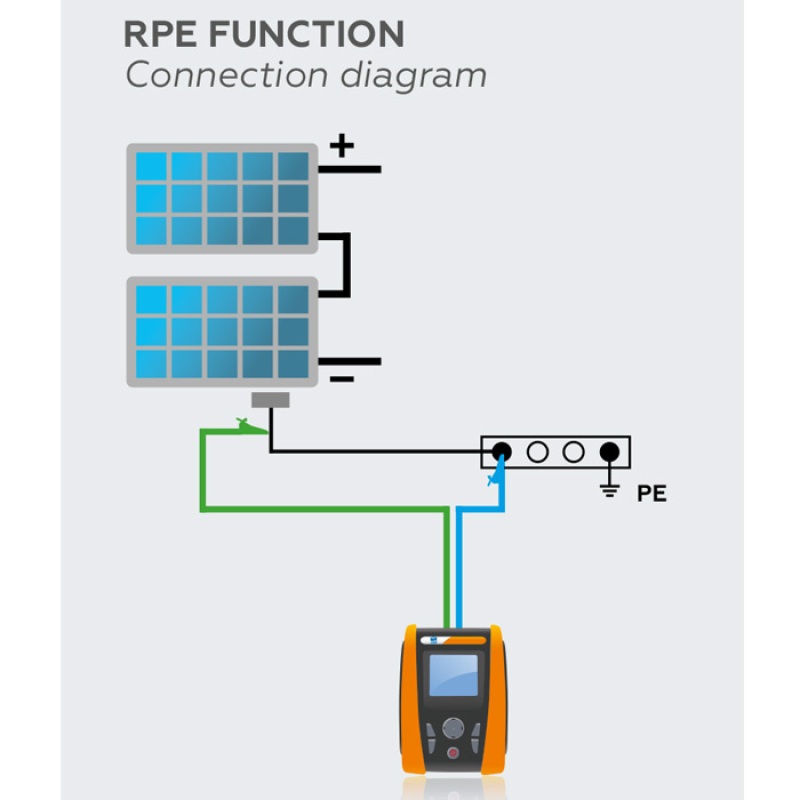

Continuity of protective conductors with 200mA



Size (LxWxH) (mm)

235 x 165 x 75mm

Weight

1.2kg





Guidelines

  • IEC/EN61010-031
  • IEC/EN61010-1
  • IEC/EN61010-2-030
  • IEC/EN61010-2-033
  • IEC/EN61010-2-034
  • IEC/EN61326-1
  • IEC/EN61557-2
  • IEC/EN61557-4
  • IEC/EN62446-1

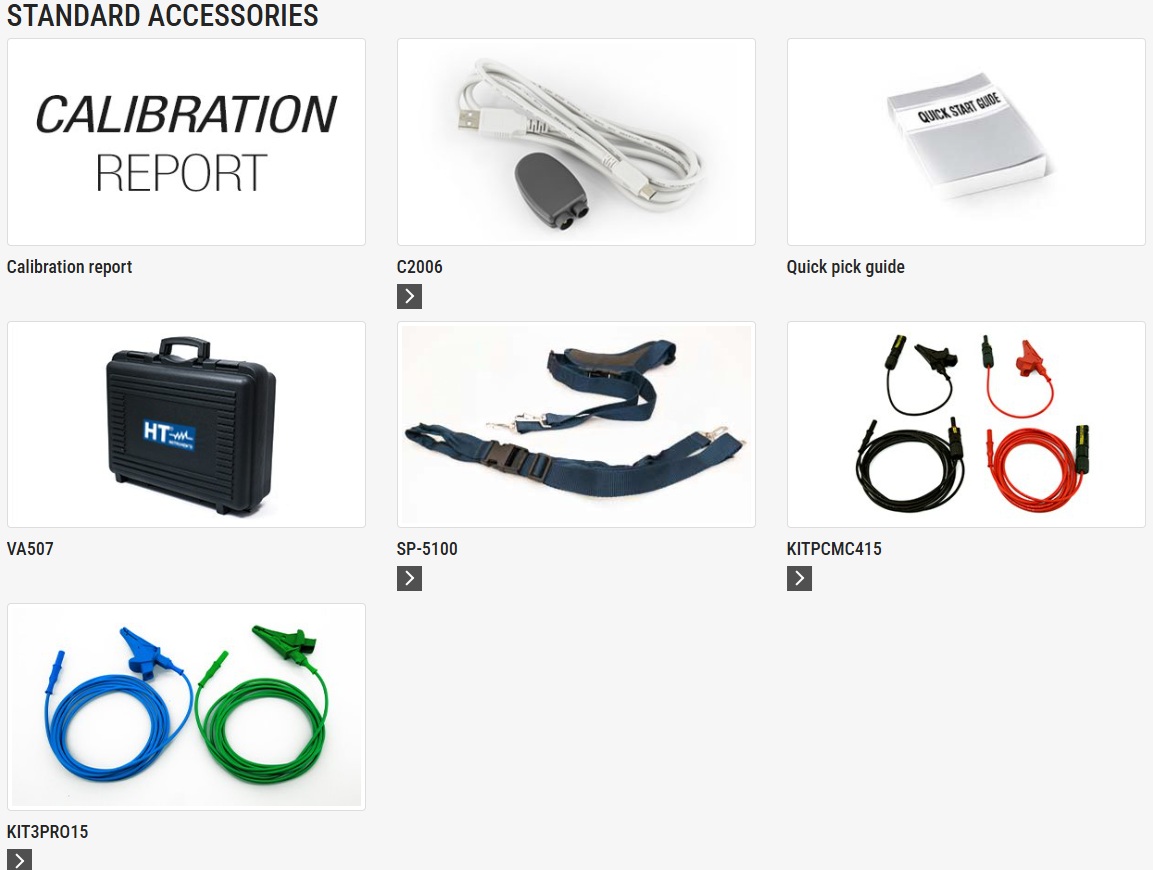

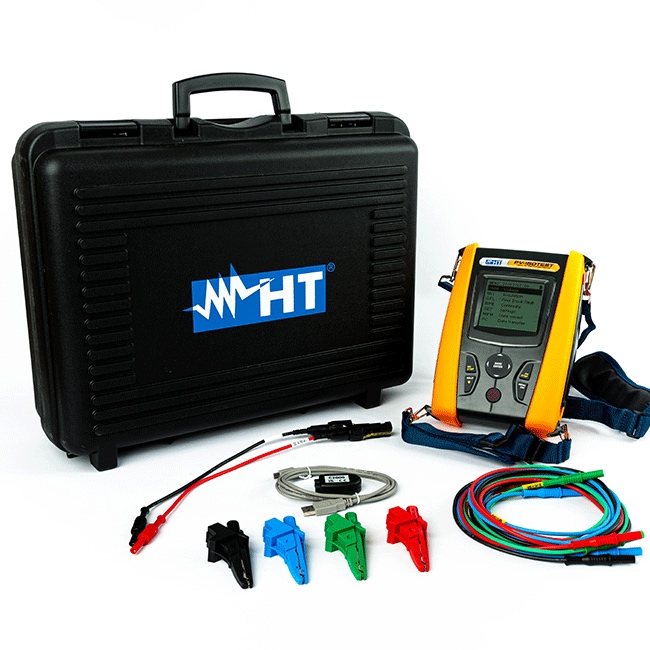

Accesorii standard

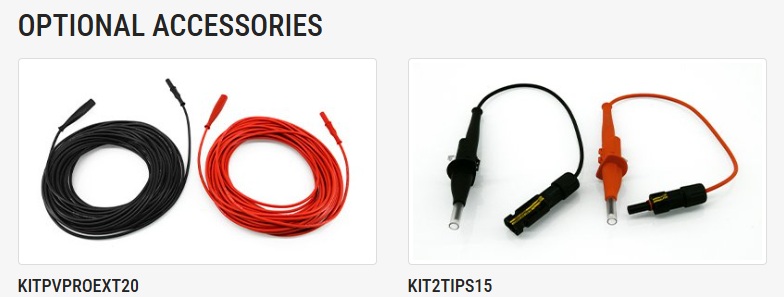

Optiuni recomandate



Alte produse HT ITALIA
