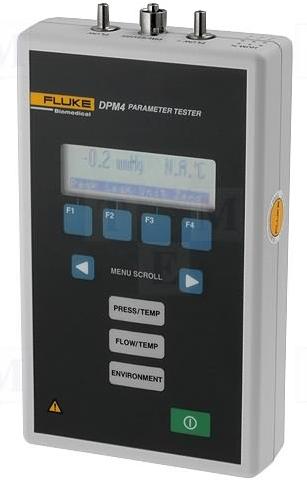

DPM4 Parameter Tester is a highly accurate meter for testing a wide range of medical devices. Key features include its lightweight, compact size and battery operation.

The DPM4 is available in four models: 1H, 1G, 2H, and 2G. The DPM4-1G is the replacement for the popular, but now obsolete DPM3. Basic parameters cover pressure, vacuum, and temperature measurements (Models 1H and 1G). Gas flow, barometric pressure and humidity measurements are included in the enhanced Tester (Models 2H and 2G). The Tester is menu-driven and simple to operate. All functions are set from a 128 x 32 pixel graphical display

DPM4 is ideal for the testing done as part of preventive maintenance or repair processes whenever measurement of pressure, flow, or relative humidity is required.

Palm size
High accuracy
Differential pressure, vacuum, and temperature measurements
Multiple user-selectable units of measurement
Simultaneous display of multiple parameter measurements
Leak detection/leak-rate calculation
RS232 for computer control
Pressure measurements from -700 mmHg to +5000 mmHg range (applies to the 1G and 2G models only)
Barometric-pressure, flow, and humidity measurements (applies to the 2G and 2H models only)

Accesorii standard

Model Name

Description

DPMD4-1H

DPM4 1H Parameter Tester Pressure: ± 350 mmHg (Part #2583121)
Includes:

User Manual (Part #2572323)
Power Cord (country specific)
Battery Eliminator (Part #2547372)
One 9 Volt Alkaline Battery

DPM4-1G

DPM4 1G Parameter Tester Pressure: -700 to 5000 mmHg (Part #2631330)
Includes:

User Manual (Part #2572323)
Power Cord (country specific)
Battery Eliminator (Part #2547372)
One 9 Volt Alkaline Battery

DPM4-2H

DPM4 2H Parameter Tester Pressure: ±350 mmHg, Press, Temp, Flow, RH (Part #2637760)
Includes:

User Manual (Part #2572323)
Power Cord (country specific)
Battery Eliminator (Part #2547372)
One 9 Volt Alkaline Battery

DPM4-2G

DPM4 2G Parameter Tester Pressure: -700 to 5000 mmHg, Press, Temp, Flow, RH (Part #2637772)
Includes:

User Manual (Part #2572323)
Power Cord (country specific)
Battery Eliminator (Part #2547372)
One 9 Volt Alkaline Battery

Optiuni recomandate

Cables

17449 17449, RS232 Cable(Part#2462335)

Carrying Cases

17192 17192, Carrying Case, double pocket, soft

Miscellaneous Accessories

14619 14619,Expansion Chamber(Part#2461905)
14611 14611,PT-100 Temperature Probe(Part#2461910)
14612 14612,PT-1000 Temperature Probe(Part#2461922)
14622 14622,Tubing Kit with Inflation Bulb(Part#2461946)
