Testere de mediu | FLUKE

Brand: FLUKE BIOMEDICAL

Tester camere ionizare presurizate radiatii gamma, raze X Fluke Biomedical 451P

Cod: Fluke Biomedical 451P

Brosura produs

PDF, 0.37 Mb

Descriere

The auto-ranging 451P features a pressurized ion chamber, providing enhanced sensitivity (µR resolution) and improved energy response to measure radiation rate and dose from x-ray and gamma sources. Originally designed to measure leakage and scatter around diagnostic x-ray and radiation therapy suites, the 451P’s site surveying capabilities make it well-suited for a wide range of end users, including: x-ray manufacturers, government agencies, state inspectors, biomedical technicians, and maintenance technicians for airport baggage scanners.

The ion chamber detector allows for a fast response time to radiation from leakage, scatter beams and pinholes. Additionally, the low noise chamber bias supply provides for fast background settling time.

The digital display features an analog bar graph, 2.5 digit digital readout, low battery and freeze ("peak hold") mode indicators, and an automatic backlight function. User controls consist of an ON/OFF button and a MODE button. The case is constructed of lightweight, high strength materials and is sealed against moisture. The RS-232 interface can be connected directly to a computer for use with the Excel add-in for Windows (451EXL), enhancing the functionality of the instrument. This software allows for data retrieval, user parameter selection and provides a virtual instrument display with audible (requires sound card) and visual alarm indication.

High sensitivity µR measurements of rate and dose simultaneously, with the capability to record peak rate
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Programmable flashing LCD display and audible alarm
Easily-accessible battery door (operated by two 9-volt alkaline batteries) on the outside of the bottom case
RS-232 communications interface with optional Windowsbased Excel add-in for data logging
Available with dose equivalent energy response (SI units)
CE Tested. Meets applicable standards

Accesorii standard

Models:

451P-RYR Pressurized µR Ion Chamber Survey Meter with standard chamber

451P-DE-SI-RYR Pressurized µR Ion Chamber Survey Meter with dose equivalent chamber

Alte produse FLUKE

Brand: FLUKE BIOMEDICAL

RATMETRU DIGITAL UNIVERSAL MONITORIZARE RADIATII FLUKE BIOMEDICAL 942A/ 946A/ 952A

• User adjustable alarm set-points; retained indefinitely on power outage, keylock protection available
• Front panel pushbuttons for check source activation, high voltage indication, alarm setpoint indication, alarm acknowledge, and power ON/OFF
• Small front panel size allows dedicated display for each channel while minimizing panel space
• Ability to use existing cables when replacing most analog readouts

Brand: FLUKE BIOMEDICAL

TESTER DETECTOR RADIATII ALFA, BETA, GAMMA, RAZE X FLUKE BIOMEDICAL ASM-990

• Auto-scaling measurement of rate and dose simultaneously, with the capability to record peak rate
• Up to [5] different probes can be calibrated with one unit
• Survey Mode data logging feature allows user to store up to 5 separate survey sequences
• Saved data can be uploaded to a PC via included Infrared Data (IrDA) transmitter
• Easy-to-use multifunction keypad for intuitive menu navigation
• Backlit analog/digital LCD display with full-range audio output capability

Brand: FLUKE BIOMEDICAL

SIMULATOR PLAMAN PORTABIL DE PRECIZIE FLUKE BIOMEDICAL ACCU LUNG

• Small, lightweight and portable
• User-selectable compliance and resistance settings
• Calibrated accuracy for both resistance and compliance
• Complies with IEC standard for breathing- circuit connection
• Certified test lung for test system traceability to standards

Brand: FLUKE BIOMEDICAL

ANALIZOR SECURITATE ELECTRICA FLUKE BIOMEDICAL DALE 601E

• Small, lightweight, self-contained portable instrument
• Master range meter delivers accurate measurment for each test
• Accurate test measurements with 4-wire Kelvin bridge
• Test method complies with AAMI load per ANSI/AAMI ES1-1993 or IEC601-1
• Leakage Current can be measured in Open/Closed Neutral, Normal/Reversed Polarity and Open/Closed Ground
• All Leakage Current measurements are displayed directly in µAmps
• Broad range of external measurements
• Five (5) Universal EKG Lead Connectors
• The DALE601E is designed for 230 V operation

Brand: FLUKE BIOMEDICAL

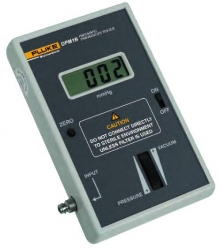

TESTER MULTIFUNCTIONAL PARAMETRI PRESIUNE DIFERENTIALA, VACUUM, TEMPERATURA FLUKE BIOMEDICAL DPM4

• Palm size
• High accuracy
• Differential pressure, vacuum, and temperature measurements
• Multiple user-selectable units of measurement
• Simultaneous display of multiple parameter measurements
• Leak detection/leak-rate calculation
• RS232 for computer control

Brand: FLUKE BIOMEDICAL

TESTER ULTRASUNETE SECURITATE ELECTRICA FLUKE BIOMEDICAL ULT800

• Handheld
• Stand-alone operation
• Direct measurement of leakage current
• Battery-operated
• Independent of 120 V or 240 V systems
• Built-in self-test circuit
• Auto shut-off to conserve battery

Brand: FLUKE BIOMEDICAL

SCOPMETRU MEDICAL DIGITAL PORTABIL 200 MHZ FLUKE BIOMEDICAL 199XRAY

• Dual input - 200, 100 or 60 MHz bandwidth
• Up to 2.5 GS/s real-time sampling per input
• Connect-and-View™ automatic triggering and a full range of manual trigger modes
• Digital Persistence for analyzing complex dynamic waveforms, similar to an analog scope
• Fast-display update rate for seeing dynamic behavior instantaneously
• Automatic capture and replay of 100 screens
• 27,500 points-per-input record length using ScopeRecord mode

Brand: FLUKE BIOMEDICAL

ANALIZOR SECURITATE ELECTRICA SALI MEDICALE FLUKE BIOMEDICAL ESA612

• Portable, ergonomic, lightweight, and easy to use
• Large, easy-to-read display with adjustable contrast
• Human-factors-designed user interface
• Tilt stand design for stand-up testing in field environments
• Five applied parts jacks and easy ECG snap connection

Brand: FLUKE BIOMEDICAL

TESTER PRESIUNE GAZ/ LICHID ECHIPAMENTE MEDICALE FLUKE BIOMEDICAL DPM2PLUS

• Handheld
• Battery operated
• 1 % accuracy
• Five selectable scale ranges
• Voltage output to drive a recorder for assessing electronics of pressure measurement circuit
• Air or liquid measurement

Brand: FLUKE BIOMEDICAL

RADIOMETRU FOTOTERAPIE MASURA RADIATIE LUMINA FLUKE BIOMEDICAL DALE40

• Large LCD
• Accurate to ±5% of full scale
• Spectral range of 429-473 nm
• Complete portability
