Brand: FLUKE BIOMEDICAL

Detector digital monitorizare radiatii Fluke Biomedical PRIMALERT 05-443/ 05/444

Cod: Fluke Biomedical PRIMALERT 05-443/ 05/444




Brosura produs PDF, 1.14 Mb

Descriere

Introduction

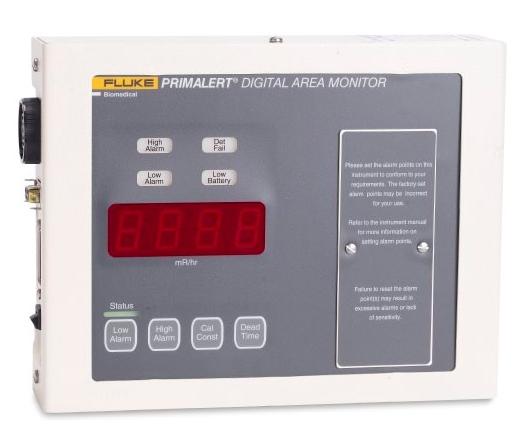

The PRIMALERT Digital Area Monitors are designed for a wide range of radiation area monitoring applications. They are completely self-contained units with energy compensated GM detectors, AC powered with internal battery backup and have user settable low and high alarms. An optional remote alarm is available for added security.



Applications
The PRIMALERT Digital Area Monitors can be used wherever there is a need to detect and warn personnel of increasing radiation levels and to control the exposure of personnel to gamma radiation. The versatility of the PRIM ALERT allows it to be used from industrial applications to medical settings.


  • LED digital display
  • Low and High alarm indicators
  • Programmable alarm indicator
  • Optional remote
  • Detector Fail indicator
  • Battery backup
  • Data output/RS-232
  • Two configurations available with internal energy compensated GM detectors:
  • mR/hr to 1 R/hr (05-443)
  • 1 mR/hr to 4 R/hr (05-444)
  • Simple installation and setup
  • Anti-jam circuitry prevents erroneous readings at tube saturation
  • Calibration controls easily accessed through front panel


Accesorii standard

  • 05-443 PRIMALERT Digital Area Monitor with internal energy compensated 0.1 mR/hr to 1 R/hr GM detector
  • 05-444 PRIMALERT Digital Area Monitor with internal energy compensated 1 mR/hr to 4 R/hr GM detector
