Kit calibrare hidraulica presiune Fluke 700HTPK

Cod: Fluke 700HTPK




Brosura produs PDF, 0.29 Mb

Descriere

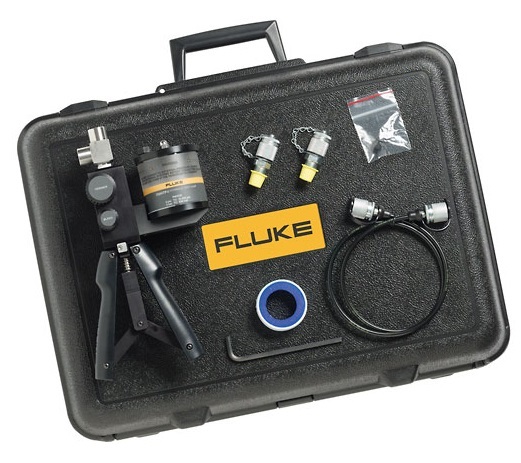

Fluke-700HTPK Hydraulic Test Kit



                     Combine with any Fluke-700G Series Gauge, 1,000 psi range or greater, to make a complete pressure testing kit

                     Generates pressure up to 10,000 psi range or greater, to make a complete pressure testing kit

                     Connect the 700G Series gauge directly to the HTP-2 hand pump

                     Includes 700HTH-1 hose kit and adapters for connecting to the pressure device to be tested

                     Hard case protects pump and gauge and allows gauge to remain connected to the pump





Accesorii standard





Optiuni recomandate



700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR


Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter



Fluke-700G01 Pressure Gauge, +-10 inH2O    -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, +-30 inH2O    -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, +-15 PSIG  -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG   -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG  -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG  -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG  -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG  -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG  -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG  -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA  0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA  0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA  0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG  -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG  -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG  -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG  -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG  -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG  -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG  -0.97 to 690 bar





700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR



Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
