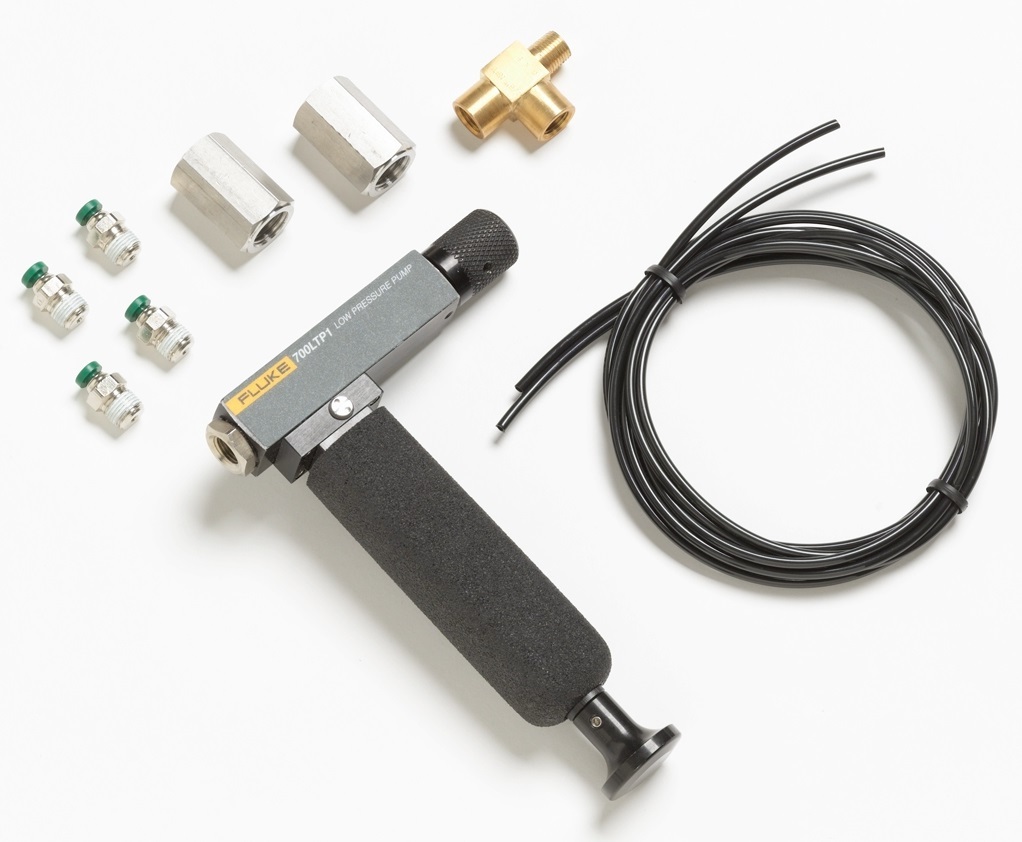

The Fluke 700LTP-1 is a hand operated pressure pump designed to generate either vacuum to -13 psi / -.90 bar or pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are terminated with 1/4-NPT female fittings that can be adapted using the BSP/ISO adapters.

For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low pressure applications requiring accurate low pressure testing.

• Pump can be easily cleaned without disassembly

• Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate

• Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test

• Slim design, easy to carry and use

Mechanical and General Specifications
Size	Length 5.9 in (150 mm), width 4 in (100 mm), depth 1.25 in (32 mm)
Weight	226 grams or .5 lbs (pump only)
Warranty	One year
Material	Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N

Accesorii standard

Includes:

• (2) adapters to convert the reference and UUT port hose fitting to 1/4" BSP female

• Adapter to convert the reference port hose fitting to 1/4" NPT female for connection to 700 series pressure modules

• One seal kit

• Instruction sheet in English

Optiuni recomandate

700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR

Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter

Fluke-700G01 Pressure Gauge, �+-10 inH2O -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, �+-30 inH2O -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, �+-15 PSIG -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA 0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA 0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA 0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG -0.97 to 690 bar

700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR

Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
