Telemetru laser portabil 80m Fluke 419D

Cod: Fluke 419D




Brosura produs PDF, 1.99 Mb


Descriere

Instantly measures up to 80m (260 ft) with accuracy of +/- 1mm

3-line display plus storage for 20 complete displays

Tripod mountable





  • Measure up to 80 m (260 ft)
  • Higher accuracy: +/-1 mm (0.04 in)

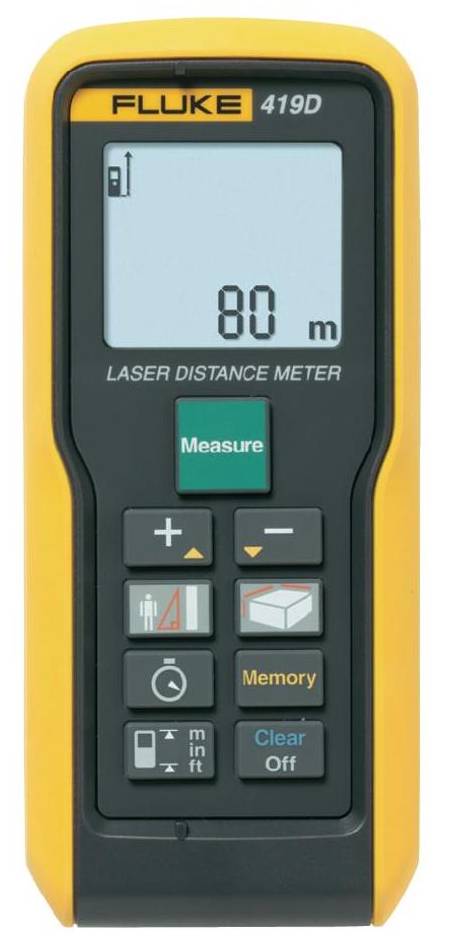

  • View more data with backlit, three-line display
  • Full Pythagoras function for height measurements
  • Storage of 20 complete displays for quick recall
  • Audible keypad feedback
  • Minimum/Maximum function
  • Tripod mode for mounting meter on a tripod when measuring long distances
  • Stake Out feature helps you mark out defined lengths such as when constructing wooden frames

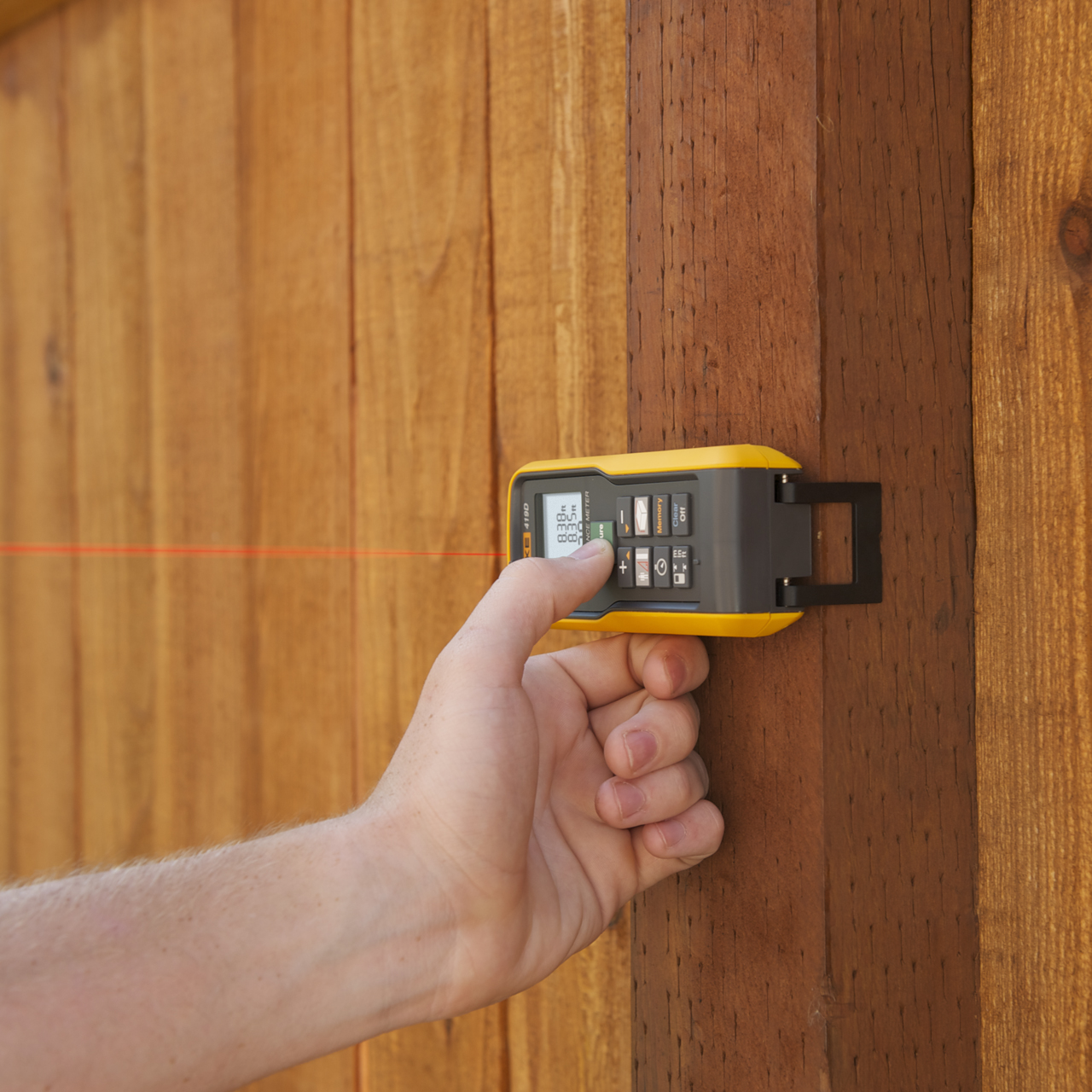

  • Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point.
  • Enhanced environmental protection:IP54-rated as dust and water spray resistant
  • Improved battery life of 5000 measurements with auto laser off and auto power off features.

Like all new Fluke laser distance meters, the 419D offers instant, one-button measurement of the distance between two objects plus:

  • Bright laser for easy targeting
  • Quick calculations of area (square feet/meters) and volume
  • Easy-to-use addition and subtraction function
  • Carrying pouch secures to tool belt





  • Reduction of estimation errors, saving both time and money
  • The most advanced 2 laser technology for distance measurement
  • Instant measurement with one-button operation
  • Easy addition and subtraction function
  • Quick calculation of area (square footage) and volume
  • Easy addition and subtraction of measurements
  • Minimum/maximum function
  • Improved battery life from automatic shut-off feature
  • Pythagoras calculation for determining distance indirectly from two other measurements
  • Pouch with Fluke logo
  • Three-year warranty





  • Improved visibility with backlit screen
  • Ability to measure up to 80 m (260 ft) for 419D, 100 m (330 ft) for 424D
  • Tripod mode allows you to mount to a tripod for measuring long distances
  • Stake out function
  • Enhanced Pythagoras calculation for determining distance indirectly from three other measurements
  • Audible keypad feedback
  • Storage of the last twenty measurements for quick recall of distance
  • Strong environmental protection with IP54 (water spray and dust proof) sealing


Accesorii standard

  • 419D Laser Distance Meter
  • Two AAA batteries
  • Users manual on CD
  • Quick reference guide
  • Vinyl carrying pouch
  • Lanyard
  • Three-year warranty
