Inregistrator calitate tensiune si putere Fluke VR1710

Cod: Fluke VR1710




Brosura produs , 0.33 Mb

Descriere

  • Fast and easy recording of voltage trends, dropouts, and power quality - Easily pinpoint the root cause of single phase voltage problems
  • Extremely easy to use - Plug directly into the mains power socket and capture data
  • Continuous recording of all values with no gaps - Save testing time by getting the whole picture with one instrument that records both events and voltage
  • Clear graphical summary of data and quick overview of key power quality parameters - Take the guesswork out of diagnosing voltage quality problems
  • Min, Max, and Average RMS values (1/4 cycle) with time stamp - Quickly see what happened and when
  • Actual transient display (>100 µs) with time stamp - Identify power quality issues quickly with included graphical software
  • Flicker recording to EN 61000-4-15, individual harmonic and THD values with trends - Easily identify if the problem is power quality or equipment related
  • Statistical analysis of single phase voltage events - Reduces analysis time by tracking event quantities and magnitudes
  • Includes PowerLog software package for quick download, analysis, and automatic reporting - Save time by generating power quality reports automatically with pre-set templates

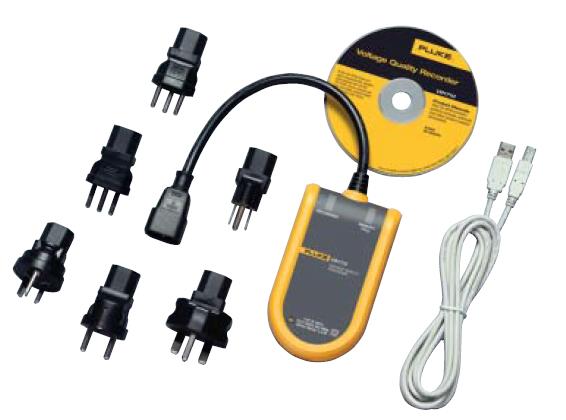

Accesorii standard

  • Plug-in Fluke VR1710
  • USB cable
  • PowerLog software CD
  • Universal power cord adapters


Optiuni recomandate





Alte produse FLUKE

MULTIMETRU DIGITAL PORTABIL 3.5 DIGIT FLUKE 179

• 3.5 digit
• 6000 count resolution
• 0.09% basic accuracy
• True RMS voltage and current measurements
• Digital display with analog bargraph and backlight
• Temperature measurements



CLESTE AMPERMETRIC DE CURENT TRUE-RMS AC/DC FLUKE 374

• iFlex fexible current probe compatible
• 600 A AC and DC current measurement with fxed jaw
• 2500 A AC current measurement with iFlex (sold separately)
• 600 V AC and DC voltage measurement
• True-rms AC voltage and current
• 6000 O resistance measurement
• 1000 µF capacitance measurement



CALIBRATOR DE PRESIUNE FLUKE 721

• 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor
• 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
• Ideal for gas flow calibration (custody transfer) applications
• Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
• Pt100 RTD input for temperature measurement, (probe optional)
• Measures 4 to 20 mA signals
• Internal 24 V loop power supply can power a transmitter under test
• Measure up to 30 V dc, check 24 V loop power supplies



LOGGER MONITORIZARE ENERGIE TRIFAZATA FLUKE MEMOBOX 1745

• monitor & logging: V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD
• measures voltage & current harmonics, interharmonics, mains signaling, unbalance, frequency
• Plug and play
• Determines the root cause
• Monitors power for the long-term
• 0.1% voltage accuracy IEC61000-4-30 Class-A compliant
• five hour UPS
• IP50 advanced protection



TESTER TENSIUNE SI CONTINUITATE FLUKE T140

• Resistance measurement
• Backlight
• LED Bargraph
• Display: 3½ digit LCD
• Voltage test
• Optical and acoustical continuity test



INREGISTRATOR MONITORIZARE PUTERE TRIFAZATA FLUKE 1735

• Record power and associated parameters for up to 45 days
• Measure harmonic distortion caused by electronic loads
• Voltage event capture
• View graphs and generate reports



TESTER PRIZA DE PAMANT FLUKE 1621

• 3-pole Fall-of-Potential earth testing for basic measurements
• 2-pole resistance measurements for added versatility
• 600 V Cat II



MULTIMETRU DIGITAL PORTABIL 3.5 DIGIT FLUKE 177

• 3.5 digit
• 6000 count resolution
• 0.09% basic accuracy
• True RMS voltage and current measurements
• Digital display with analog bargraph and backlight



CLESTE AMPERMETRIC DE CURENT TRUE-RMS AC/DC FLUKE 381

• Detachable digital display, read measurements up to 30 feet away
• iFlex fexible current probe included, 18-inch circumference
• 2500 A AC current measurement with iFlex
• 1000 A AC current measurement with fxed jaw
• 1000 V AC and DC voltage measurement
• True-rms AC voltage and current
• Frequency measurement to 500 Hz
• 60-k O resistance measurement
• 500 mV DC measurement range
• 1000 µF capacitance measurement



KIT INREGISTRARE TENSIUNE AC LA DISTANTA FLUKE FLK-CNX V3000 KIT

• masuratori de tensiune c.a. si c.c. true-rms, la 1.000 V
• curent c.a. si c.c. true-RMS, cu o rezolutie de 0,01 mA
• Masuratori de tensiune c.a. true-RMS pâna la 1000 V
• memorie de înregistrare de pâna la 65.000 de masuratori
• CAT III 1000 V; CAT IV 600 V; IP42
