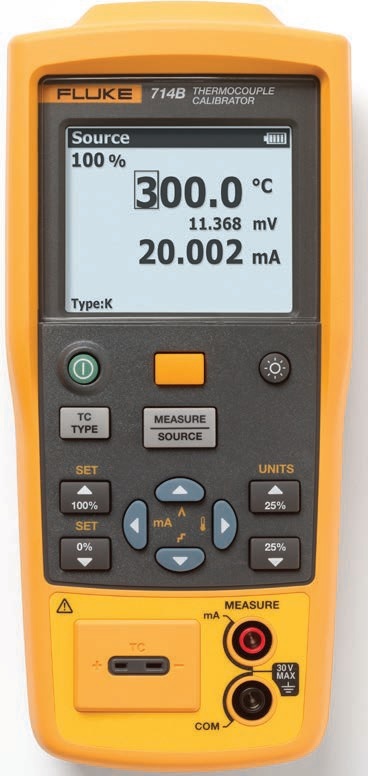

Calibrator termocuple Fluke 714B

Cod: Fluke 714B




Brosura produs PDF, 1.87 Mb

Descriere

Highly accurate, easy-to-use single function thermocouple temperature calibrator

 For the temperature calibration professional who wants a highly accurate, easy-to-use, single function thermocouple temperature calibrator the Fluke 714B is the ideal test tool.





  • The 714B can measure and simulate (17) different thermocouple types and millivolts
  • Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
  • Hanging tool designed in and included with every unit
  • Configurable 0 % and 100 % source settings for quick 25 % linearity checks
  • Linear ramp and 25 % step auto ramp based on 0 % and 100 % settings
  • Dual inputs and backlit display for easy interpretation of measurements
  • Power down settings remembered at power up for easy restart of tests
  • 1-year and 2-year specifications and traceable certification of calibration


General Specifications

Maximum voltage applied between any terminal and earth ground or between any two terminals

30 V

Operating temperature

-10 °C to 50 °C

Storage temperature

-30 °C to 60 °C

Operating altitude

2,000 meters

Storage altitude

12,000 meters

Relative humidity (% RH operating without condensation)

Non condensing

90% (10 °C to 30 °C)

75% (30 °C to 40 °C)

45% (40 °C to 50 °C)

(Without condensation)

Vibration requirements

MIL-T-28800E, Class 2

Drop text requirements

1 meter

IP Rating

IEC 60529: IP52

Electromagnetic environment

IEC 61326-1, Portable

Safety

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

Power supply

4 AA NEDA 1.5A IEC LR6 batteries

Size (H x W x L)

52.5 mm x 84 mm x 188.5 mm

Weight

515 g



Accesorii standard



Included equipment

  • Magnetic hanging tool
  • batteries,
  • manual,
  • traceable calibration certificate,
  • test leads
