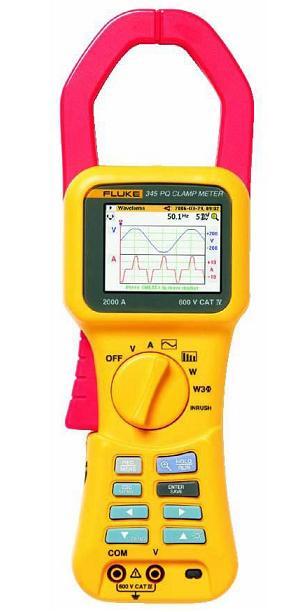

Cleste powermetric cu Analizor putere Fluke 345

Cod: Fluke 345




Brosura produs PDF, 0.38 Mb

Descriere

  • AC/DC current: Clamp-on measurement of ac current up to 1400 A rms and dc current up to 2000 A without breaking the circuit
  • Highest safety rating: 600 V CAT IV power analyzer is rated for use at the service entrance
  • Accurate in noisy environments: Clamp meter performs even with distorted waveforms present on electronic loads with low-pass filter
  • Data logging: Identify intermittent faults by logging any power quality parameter for minutes, or over a month, including harmonics
  • Verify batteries: Direct measurement of dc ripple (%) for battery and dc systems
  • Troubleshoot harmonics: Analyze and log harmonics digitally or graphically
  • Inrush current: Capture and analyze nuisance tripping, from 3 seconds to 300 seconds
  • Easy to use: Easily confirm power meter setup with large backlit color display of waveforms and trends
  • 3-Phase power: Built in capability for balanced loads
  • View graphs and generate reports: Use power analyzer with included Power Log software


Accesorii standard

  • 345 Power Quality Clamp Meter
  • Soft carrying case
  • Power Log software
  • Test leads
  • Alligator clips
  • Test probes
  • USB cable
  • International ac adapter / battery eliminator
  • Printed English language user manual
  • Multi-language manual CD


Optiuni recomandate

  • AC220 SureGrip™ Alligator Clip Set
  • TLK291  Fused test probe set
  • TP1  Slim Reach Test Probe (flat blade)
  • TP220  SureGrip™ Industrial Test Probes


Alte produse FLUKE

MEGOHMETRU DIGITAL MULTIMETRU IZOLATIE 50/ 1000V FLUKE 1587

• Insulation test: 0.01 MO to 2 GO
• Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V



CLESTE AMPERMETRIC DE CURENT TRUE-RMS AC/DC FLUKE 381

• Detachable digital display, read measurements up to 30 feet away
• iFlex fexible current probe included, 18-inch circumference
• 2500 A AC current measurement with iFlex
• 1000 A AC current measurement with fxed jaw
• 1000 V AC and DC voltage measurement
• True-rms AC voltage and current
• Frequency measurement to 500 Hz
• 60-k O resistance measurement
• 500 mV DC measurement range
• 1000 µF capacitance measurement



MODUL WIRELESS ACHIZITIE MASURA TENSIUNE FLUKE CNX V3000

• Masuratori de tensiune c.a. true-RMS la 1.000 V
• Precizie de ±1% la 500 Hz si de ±2% la 1 kHz
• Înregistrare în memorie a pâna la 65.000 de masuratori
• Afisaj LCD cu lumina de fundal
• CAT IV 600 V, CAT III 1.000 V; IP42


FLUKE TIX560 CAMERA DE TERMOVIZIUNE 320X240

• Fluke TiX500 320x240 pixels, -20 °C..+650 °C
• Fluke TiX520 320x240 pixels, -20 °C..+850 °C
• Fluke TiX560 320x240 pixels, -20 °C..+1200 °C



TESTER INSTALATII ELECTRICE 50V-1000V FLUKE 1653B

• Test voltage: 50V, 250V, 500V, 1000V
• Two measurements at once and a dual display
• PEFC/PSC and loop impedance
• Fast voltage measurement between L-N, L-PE and N-PE
• PASS/FAIL indication for RCD test results
• Earth resistance



SISTEM DE MASURA LA DISTANTA CONFIGURABIL SERIA FLUKE CNX 3000

• Multimetru wireless Fluke CNX 3000
• Modulul de curent c.a. wireless Fluke CNX i3000 iFlex
• Modul de tensiune c.a. wireless Fluke CNX v3000
• Modul cu cleste de curent c.a. wireless Fluke CNX a3000
• Modul de temperatura tip K wireless Fluke CNX t3000


FLUKE 190-104 190-104/S OSCILOSCOP PORTABIL DIGITAL 4X100 MHZ

• 4-canale izolate 100MHz
• Clasa de protectie CAT III 1000 V, CAT IV 600 V
• Multimetru digital dedicat cu 5000 de numărări la modele cu două canale
• Măsurători automate avansate, energie (Vpwm, VA, W, PF) ™ timp (mAs, V/s, w/s)
• Clasa de protectie IP-51 pentru praf şi lichide pentru a rezista in medii dificile
• Porturi USB izolate



ANALIZOR REZISTENTA INTERNA BATERII FLUKE BT521

• Masuratori cheie: Rezistenta, tensiunea c.c. si c.a., intensitatea c.a. si c.c., variatia de tensiune ale bateriei, frecventa si temperatura bateriei.
• Analiza îmbunatatita a datelor: Comparati rapid tendinte, analizati rezultate si creati rapoarte cu ajutorul software-ului de gestionare a bateriei.
• Raportare usoara: Generati rapoarte PDF pe software-ul PC cu grafice de analiza si tabeluri de date sau trimiteti formatul raportului prin e-mail cu un fisier csv pe aplicatia mobila.
• Comunicatie wireless
• Port USB



SISTEM MENTENANTA SI INTRETINERE INSTALATII INDUSTRIALE FLUKE CNX 3000 GM

• • masuratori de tensiune c.a. si c.c. true-rms, la 1000 V
• • curent c.a. si c.c. true-RMS, cu o rezolutie de 0,01 mA
• • Masuratori de tensiune c.a. true-RMS pâna la 1000V
• • Masuratori de curent c.a. true-RMS la 2500 A


TERMOMETRU INFRAROSU DE PRECIZIE FLUKE 574

• Backlit display for poorly lit areas
• Last ten temperature readings displayed on bar graph for easy reference
• Enhanced optics (distance to spot ratio up to 60:1) allow measurements of smaller objects from farther away
• Coaxial three-dot laser sighting system highlights the true diameter of measurement spots at all distances (90% energy)
• MIN/MAX measurements calculations instantly computed
• Audible and visible HI temperature alarm for instant recognition
• 100 temperature data logging capability for easy route review
