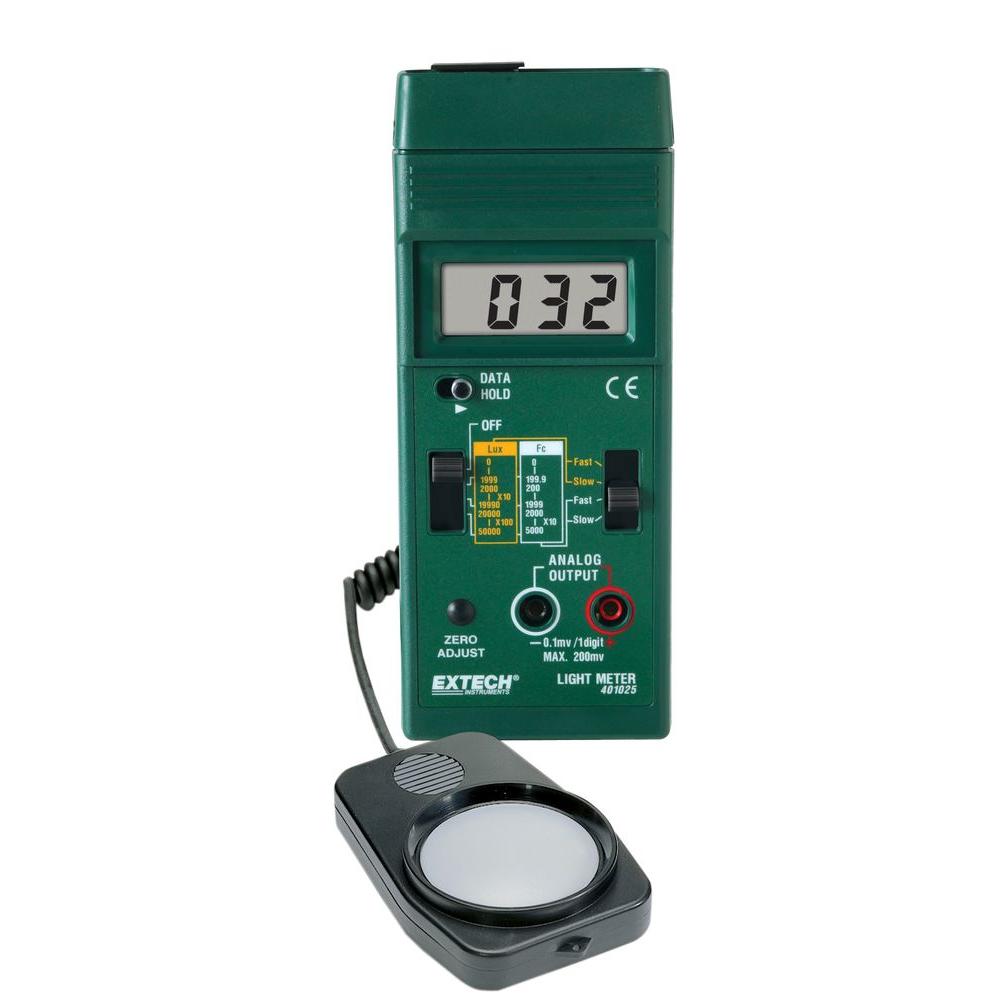

Extech 401025 Luxmetru

Cod: Extech 401025




Brosura produs PDF, 0.12 Mb

Descriere

Includes analog output and fast/slow response feature

401025 is a Foot Candle/Lux Meter which measures light level to 5000FC (foot-candles) and 50,000 Lux with a 5% accuracy using a precision photo diode and color correction filter. Meter features fast/slow response time and an analog output (1mV per count) for capturing readings to a recorder. Comes complete with 9-Volt battery.



·         Accurately displays light level in terms of Fc or Lux over three ranges

·         Select fast (1 second) or slow (2 seconds) response time

·         Analog output of 1mV per count for capturing readings to a recorder
