Detector semnal satelit DVB-S/S2 Satfinder Deviser S30
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Deviser S30



Brosura produs PDF, 0.2 Mb


Descriere

Deviser S30 este un aparat de masura portabil pentru satelit, cu analizor de spectru, de dimensiuni mici ai usor de utilizat.

  • Aparat masura semnal satelit DVB-S/S2, analog si digital
  • LCD iluminat 128x64 pixeli
  • Acumulator capacitate mare, peste 4 ore de functionare
  • Interfata USB pentru update de soft si configurare parametrii



Caracteristici principale:

  • Standard DVB-S/S2
  • Banda C, Ku, Ka sau L
  • Masurare MER & BER
  • Functie de spectru
  • Suport DiSEqC 1.0/1.1
  • Afisare simultana a nivelului si calitatii semnalului
  • Afisaj LCD iluminat, matrice 128x64
  • Acumulator cu litiu de mare capacitate, cu peste 4 ore de functionare
  • Actualizare software si configurare parametrii (sateliti, transpondere) via interfata USB



Specificatii tehnice

  • Frecventa de lucru: 950 - 2150 MHz
  • Nivel de semnal de intrare: 30 - 110 dBuV
  • Symbol Rate: 1 - 45 Msps (QPSK, 8PSK)
  • Tensiune de alimentare LNB: 13V, 18V (max. 400 mA), Oprit
  • Capacitate acumulator: 7.2V, 1600 mAh, litiu
  • Dimensiuni: 153x93x42 mm
  • Greutate: 358 g
  • Durata de functionare: > 4 ore (13V)

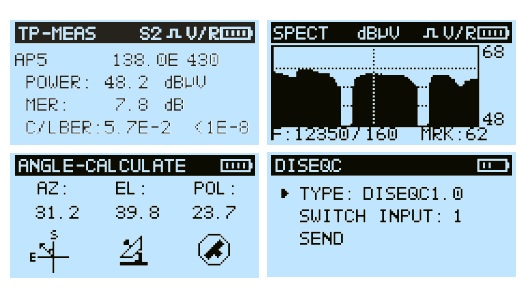

        Aparatul de masura pentru satelit S30 este un instrument ideal de testare si reglare a instalatiilor (antenelor) de receptie prin satelit, cu un timp de raspuns foarte rapid si afisaj stabil si precis. De asemenea, poate afisa masurarea MER pentru determinarea corecta a existentei semnalului.

        Cu ajutorul acestui produs se pot calcula automat Azimutul (directia), Elevatia (inclinatia) si unghiul de polarizare al antenei, in conformitate cu longitudinea si latitudinea locatiei de instalare.

         Planul de canale de satelit poate fi editat cu ajutorul software-ului gratuit PC Edit.
