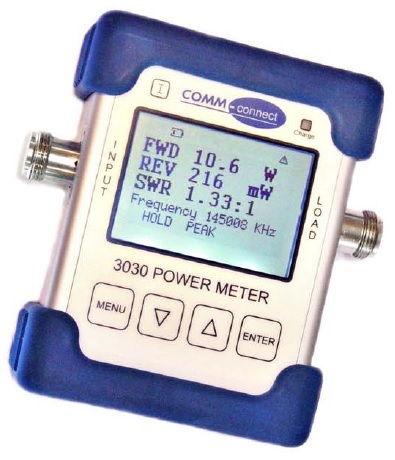

The 3030 RF Power Meter is a modern version of the traditional Antenna Watt and VSWR instrument. The instrument cover communication bands from 30MHz to 500MHz / 1000MHz. The 3030 RF Power Meter will measure forward and reflected power in the range from milliWatts up to 100Watts. Built in frequency counter. The counter will show the transmit frequency and will call the calibration table for the actual frequency. Outside the range of the counter the instrument can be set into manual mode giving a wider dynamic range. The 3030 RF Power Meter will calculate VSWR or Return Loss, and features Peak and Hold mode. Accessory kit with soft or hard carrying bag, car charger and coax adapters for standard types are available

Features:

� Antenna and Cable VSWR
� Antenna and Cable Return Loss
� Measure forward power
� Measure reflected power
� Use in direct Sunlight
� Back light for dim areas
� Auto Power off
� Setup by Menu system
� Operate while charging

Specifications:

� Frequency range: 30MHz - 500MHz / 1000MHz
� VSWR: < 1.05:1
� 50Ohms "N" Female connector
� Power Range: 1.5mW to 100W
� Display resolution: 128x64 pixels
� Calibration stored in EEPROM
� USB Serial device (B type)
� Operation time: > 5 hours

Applications:

� Fast and cost effective

� Handheld

� Light weight

� Rugged design

� Graphical swept analysis

� Store sweeps on memory stick

Accesorii standard

3030 Power Meter 30 - 500MHz

Box contents: 1 x 3030, 1 x Manual, 1 x Wall adapter, 1 x USB Cable

3030_EXT Power Meter 30 - 1000MHz

Box contents: 1 x 3030_EXT, 1 x Manual, 1 x Wall adapter, 1 x USB Cable

3030_SOFT

Soft Pouch for PMR Power Meter

Box contents:1 x Soft Pouch for PMR Power Meter

3030_CCHG

Car charger for PMR Power Meter

Box contents:1 x Car charger for PMR Power Meter

3030_WALL

Wall adapter for PMR Power Meter

Box contents:1 x Wall adapt. for PMR Power Meter ( 4 x USB Outputs )

3030_ACC

3030 Accessory Pack, Soft Pouch, Adapters & Car charg.

Box contents: 1 x Soft Pouch, 1 x Car charger, 2 x N Male to FME Male, 2 x N Male to BNC Female2 x N Male to TNC Female, 2 x N Male to UHF Female2 x N Male to mini UHF Female

3030_PELI PMR Peli case with foam & lid compartment

Box contents:1 x Peli 1200 hardcase with CC custom foam

3030_FULL

PMR Peli case incl. 10 Adapters & Car charger

Box contents: 1 x 3030_PELI, 1 x Car charger, 2 x N Male to FME Male, 2 x N Male to BNC Female2 x N Male to TNC Female, 2 x N Male to UHF Female2 x N Male to mini UHF Female

3030_BASE

Box contents: 1 x 3030_PELI_BASE, 1 x Car charger, 2 x N Male to N Male, 2 x N Female to N Female1 x N Male to 7/16 Female, 1 x N Male to 7/16 Male1 x N Female to 7/16 Female, 1 x N Female to 7/16 Male1 x 7/16 Female to 7/16 Female,1 x N Male to N Male Adapter cable 20cm RG400
