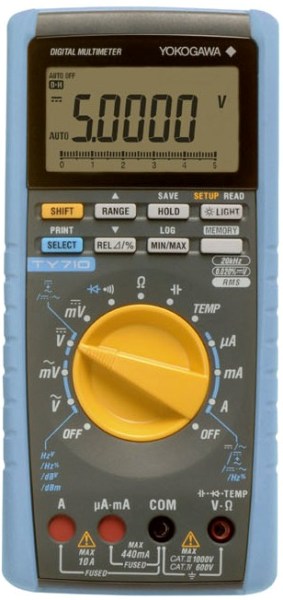

YOKOGAWA Digital Multimeter TY710

Code: YOKOGAWA Digital Multimeter TY710




Datasheet PDF, 1.46 Mb

Description

4.5-digit (50,000-count dual display, 51-segment bar graph display), RMS type Measurement Functions: Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature

Features:Category IV 600V, Category III 1000V, Large Internal Memory (1,000 data), USB Communication function, Closed Case Calibration (User calibration function).



Features:

  • Highest Precision
  • Basic accuracy 0.020%
  • True RMS measurement
  • New Functions for Electronic and Industrial Use
  • Simultaneous measurement and display of DC and AC
  • Switchable RMS/MEAN detection
  • Low-pass Filter (LPF)
  • AC50mV range
  • Lo-Power resistance measurement TY720 only
  • Full Support for Data Management
  • A large-capacity logging-mode memory
    TY720: 10,000 data
    TY710: 1,000 data
  • USB communication, application software (Optional DMM communication package)
  • Safe Design and Wide Temperature Range for Harsh Use
  • Conforms to safety standards EN61010-1 1000V CAT., 600V CAT.
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • Operating temperature range -20 to +55C
  • Storage temperature range -40 to +70
  • Closed Case Calibration
  • 3-year Warranty
