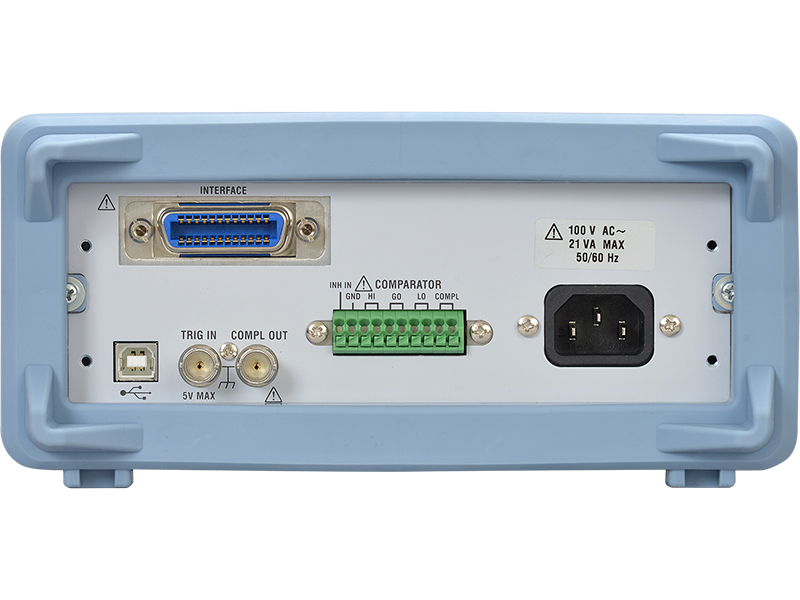

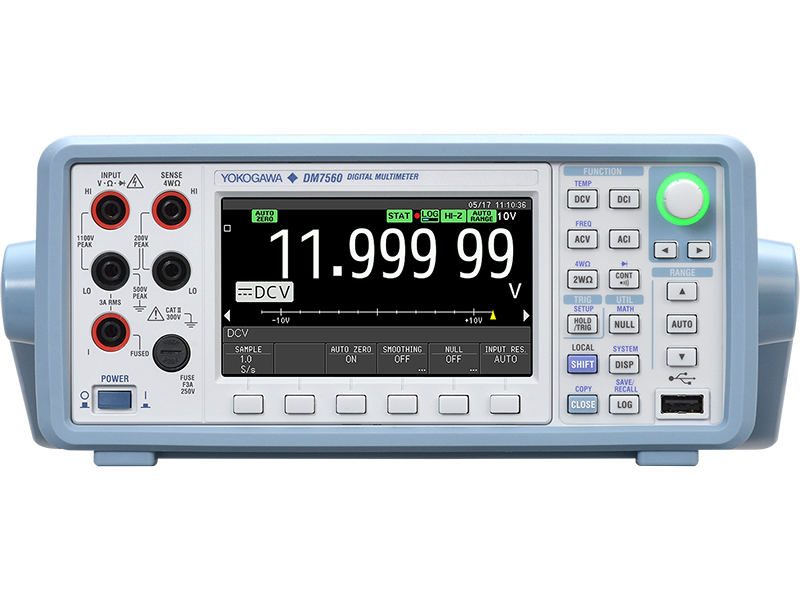

YOKOGAWA DM7560 Digital Multimeter 6.5 Digit

Code: YOKOGAWA DM7560 Digital Multimeter 6.5 Digit




Datasheet PDF, 1.94 Mb


Description

The DM7560 is a flexible 6.5-digit digital multimeter with high-accuracy, high-speed data logging (up to 30k S/s) with deep 100k reading memory and built-in statistical analysis.



Features:

  • Full-color,high-resolution display with flexible display formats
  • High-speed data logging with up to 30 k points per second
  • High-capacity internal memory up to 100 k points
  • Trend / histogram analysis available both in real-time and offline
  • Multiple PC interface options (USB, Ethernet, GP-IB, RS-232) enable automation



Application Examples

  • Monitoring battery current consumption
  • Sensor testing
  • Production testing
  • R&D / service
  • Voltage reference testing
