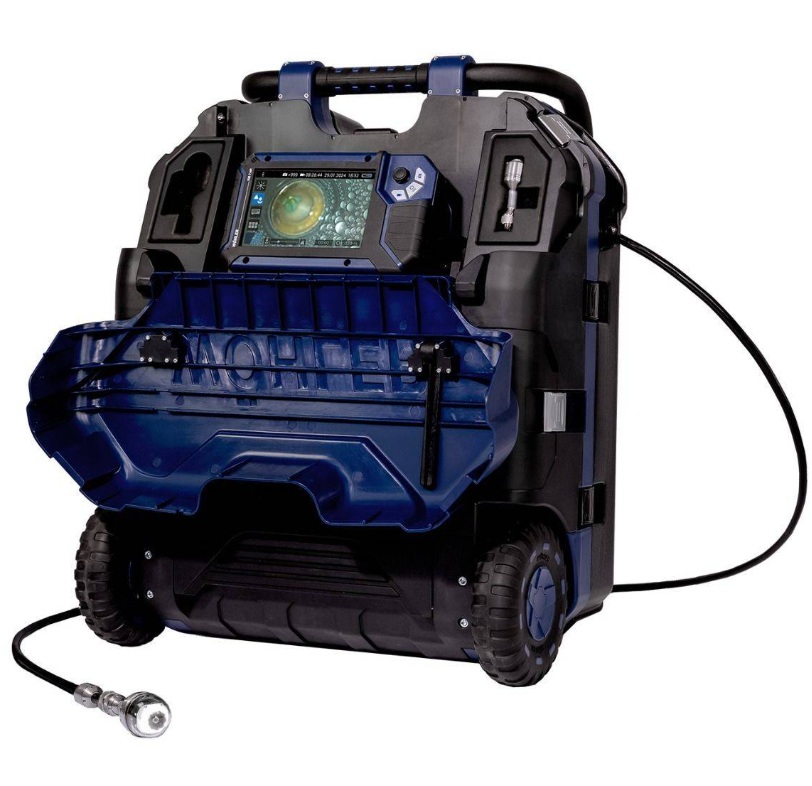

WOHLER VIS750 HD Long Distance Video Inspection Camera system

Code: VIS750 11771J 11772J



Datasheet PDF, 3.94 Mb
Datasheet PDF, 3.1 Mb


Description

Wöhler VIS 750 HD Inspection Camera HD camera head Ø 40 mm | 40 m push rod Article no. 11772 J

Wöhler VIS 750 HD Inspection Camera HD camera head Ø 40 mm | 60 m push rod Article no. 11771 J

Woehler HD inspection camera
With the Wöhler VIS 750 HD Inspection Camera, no pipe is too long and no corner too dark. You can easily spot even the tiniest leaks, the toughest blockages, and annoying root ingrowth. The easy-to-use design lets you get things done fast and effectively, because we understand that your time is super valuable. The Wöhler VIS 750 HD Inspection Camera stands out with its clever features, making it one-of-a-kind.

  • Android iOS
  • 60 or 40 m camera push rod
  • For long distances or multiple changes of direction
  • Self-leveling + HD quality
  • Shake-free, crystal-clear images
  • 360° rotation*
  • Reaches every corner of the pipe's inner wall
  • 180° pan function*
  • For precise damage location, even in junctions

FOCUS ON WHAT IS IMPORTANT

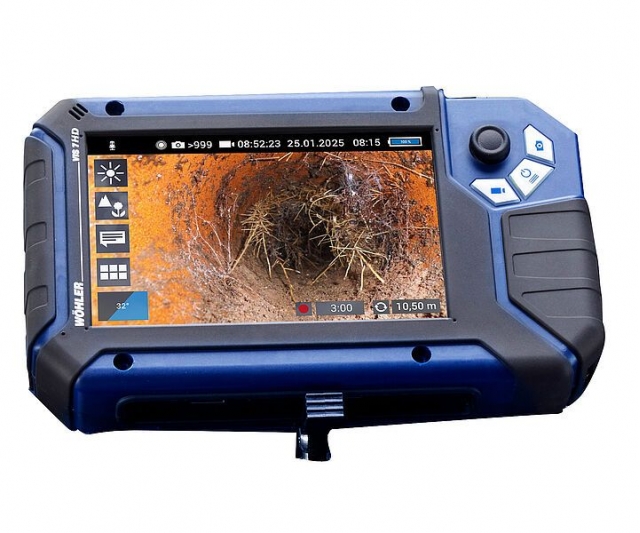

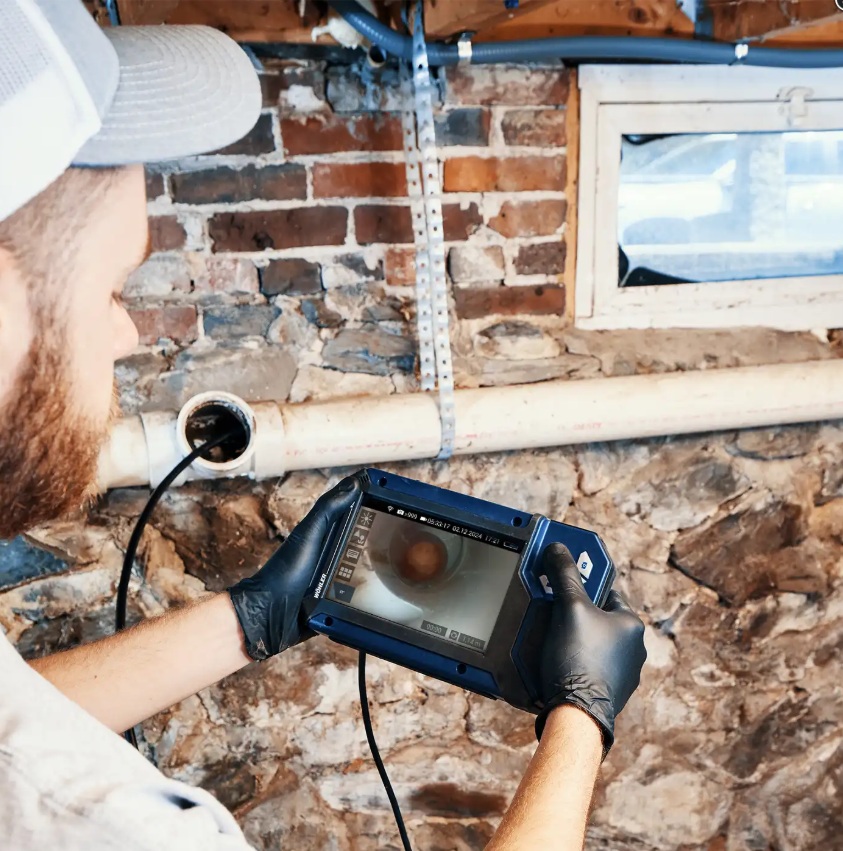

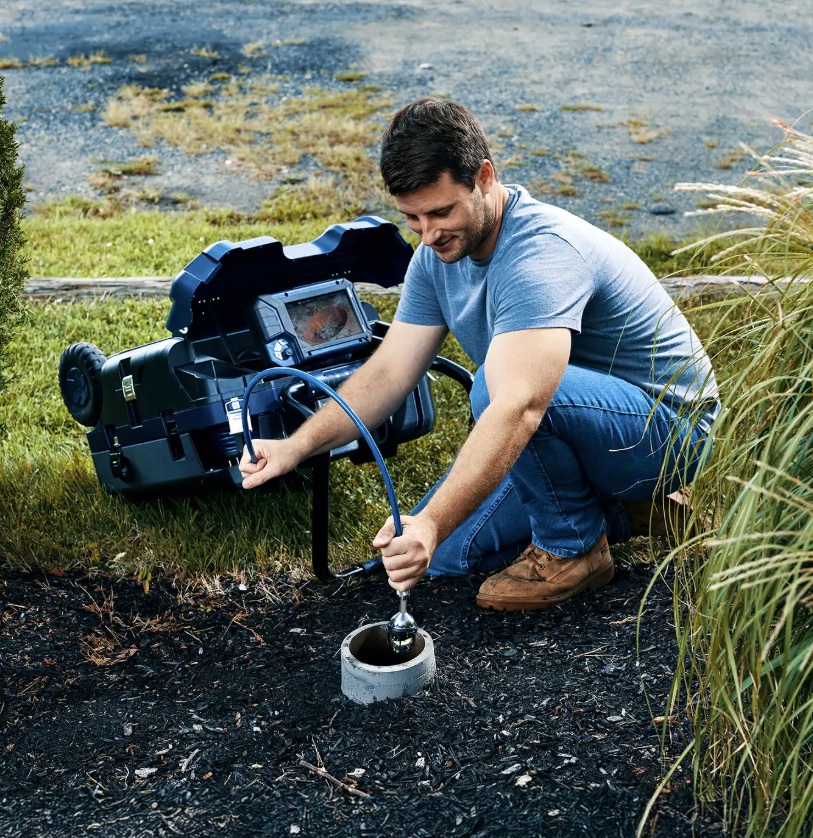

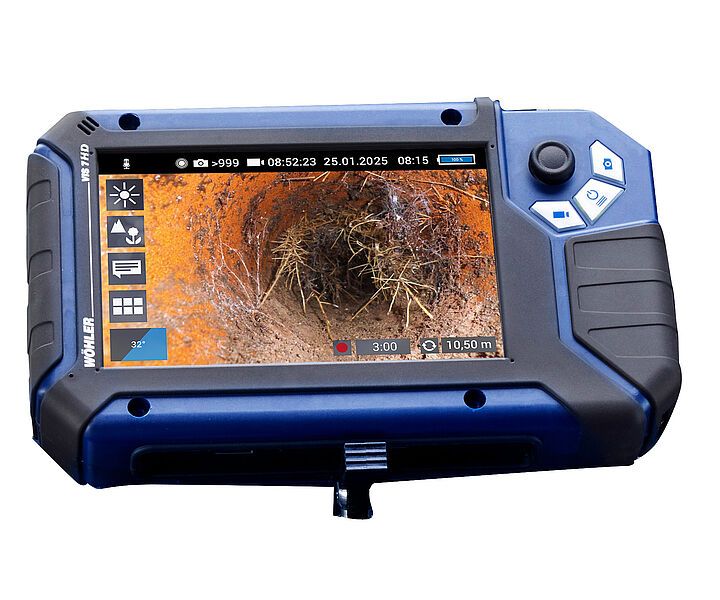

The HD monitor can be easily removed so that you have both hands free for inspection. You can attach it to magnetic surfaces or use the stand to position it wherever you need it. The detachable front flap of the monitor also serves as an integrated glare shield and protects against annoying light reflections. The camera is operated intuitively via the HD touchscreen and joystick, so you can concentrate fully on analysing the damage without having to struggle with the technology. Even hard-to-reach areas are no problem, as the camera enables razor-sharp images thanks to the adjustable focus range and the focus function.

CLEAN WORK

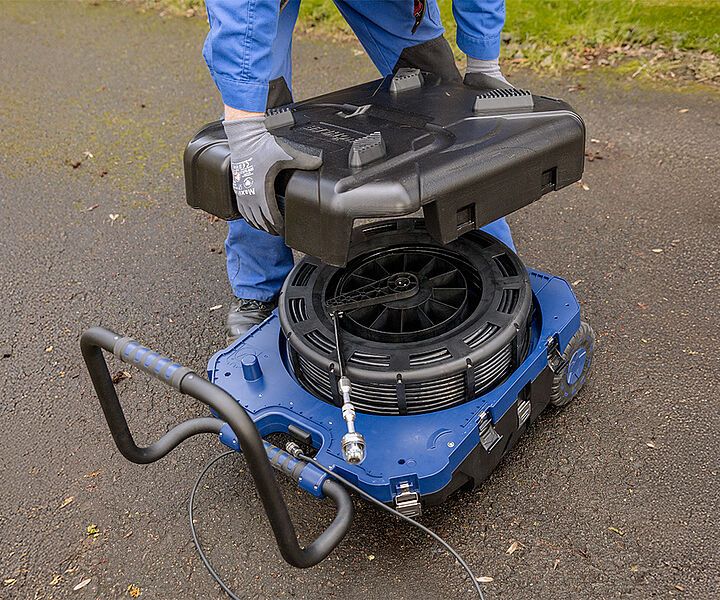

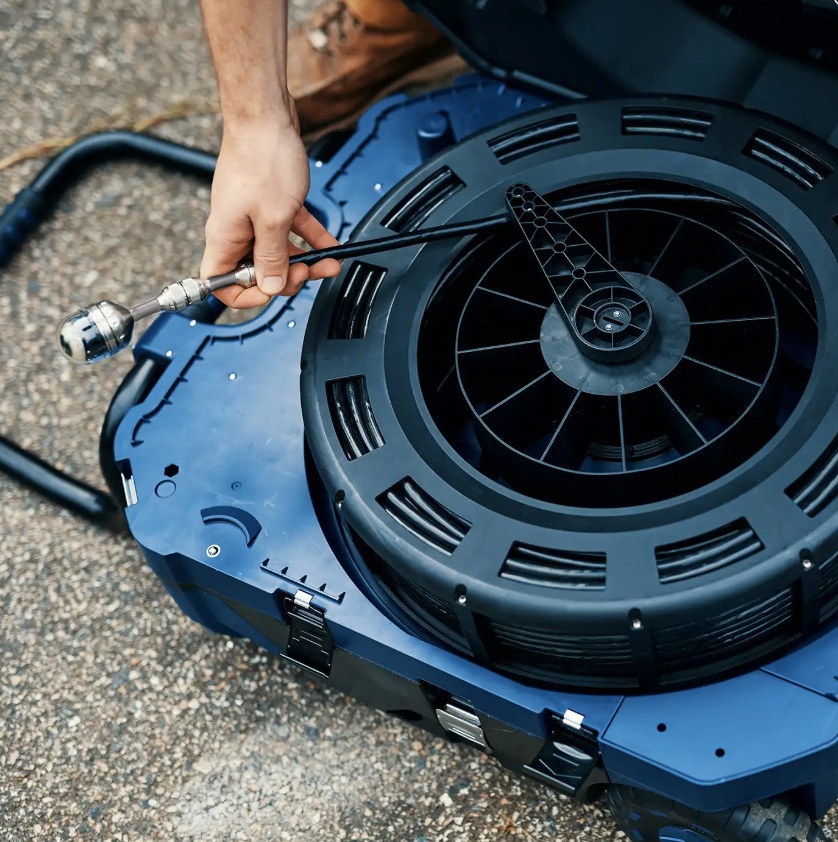

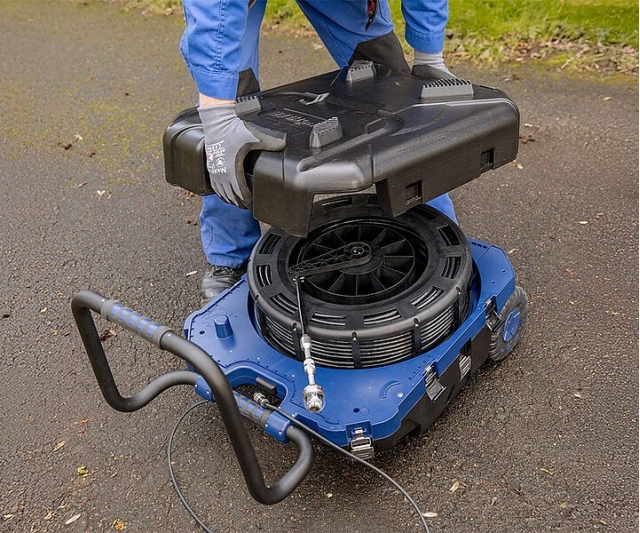

The 60 m black camera push rod offers full flexibility and is ideal for long distances, for example in sewer systems. It is suitable for pipe diameters ranging from 75 to 150 mm. For use in pipelines with multiple changes in direction, the blue push rod with a length of 40 m is the perfect choice. It is particularly recommended for smaller pipe diameters from 75 to 150 mm. Integrated into the practical trolley, the camera push rod is very easy to clean after use. For more thorough cleaning, the reel can be easily removed and rinsed with a water hose.

RELIABLE ASSISTANT

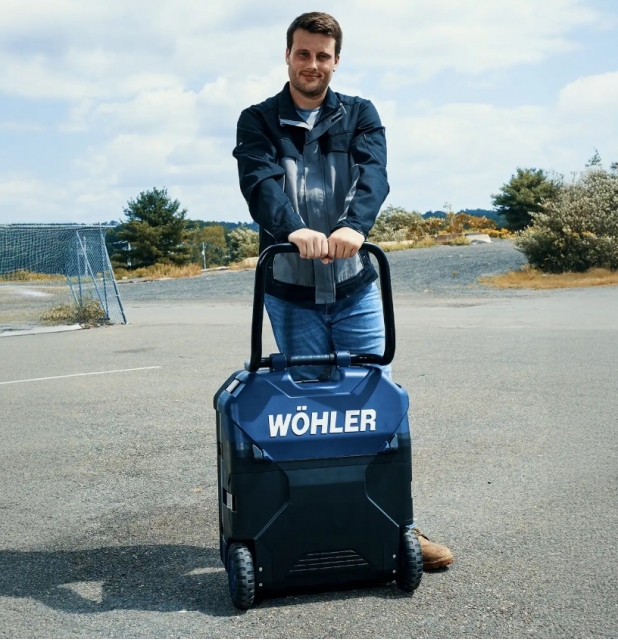

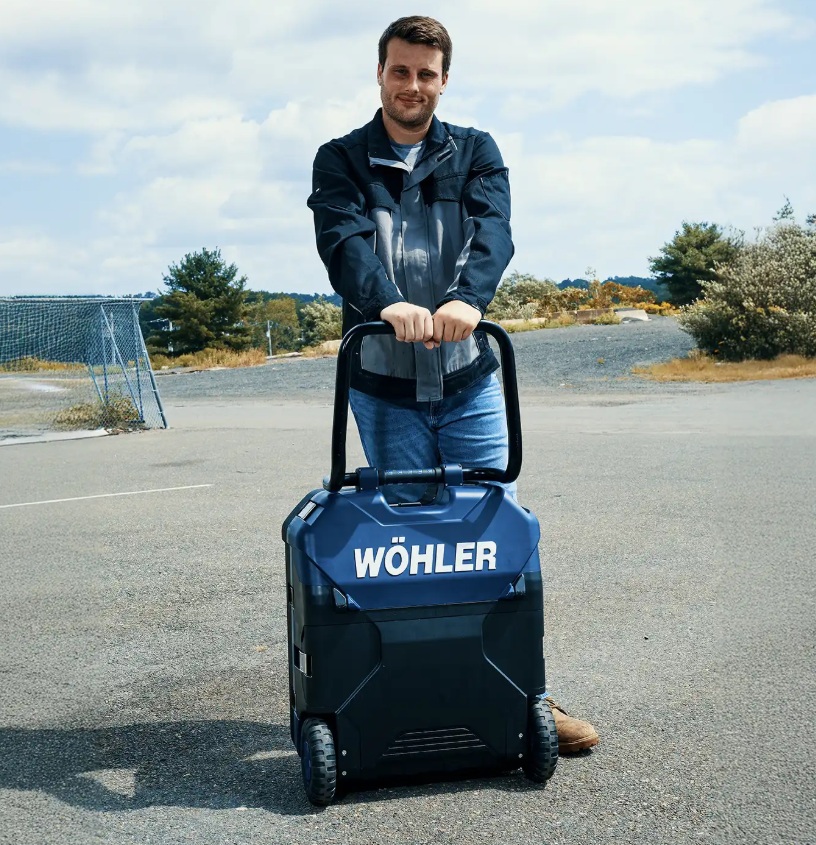

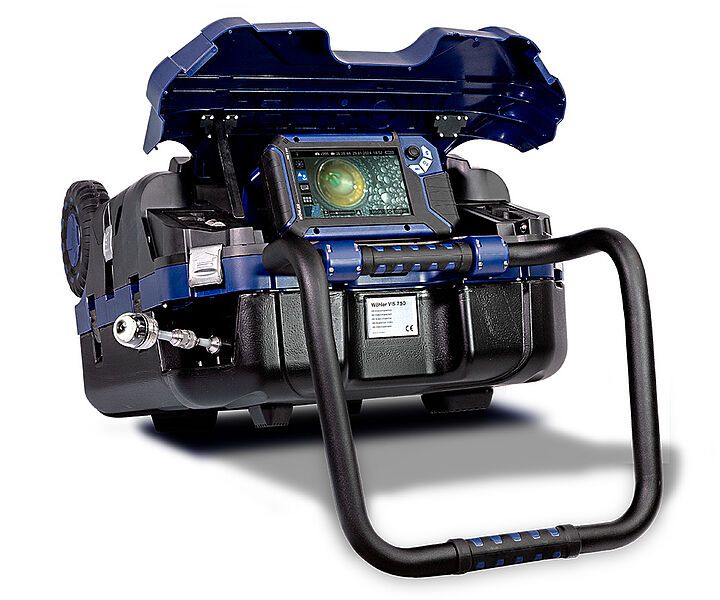

The Wöhler VIS 750 HD Inspection Camera offers optimum flexibility for every job thanks to its various set-up options. The flexible handle on the trolley also ensures easy and convenient transport. The trolley itself is a sturdy helper that reliably protects the technology during the inspection. The trolley's flaps are equipped with an anti-breakage system and can be easily removed.

EVERYTHING AT A GLANCE

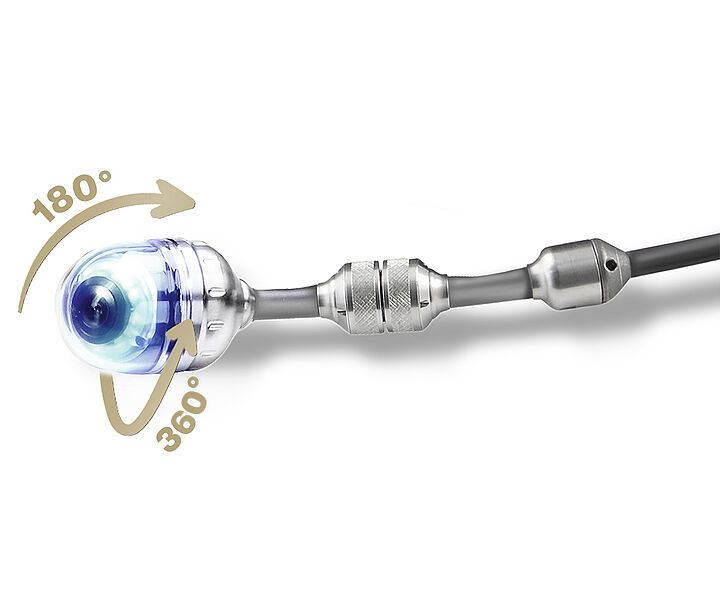

With the Wöhler VIS 750 HD inspection camera, you can detect even the smallest defects because bright, adjustable LEDs and optional additional lighting illuminate even the deepest areas. Thanks to self-leveling, the camera image always remains horizontal, ensuring perfect orientation even in complex pipe systems. The flexible interchangeable head system—either with the 40 mm camera head that can pan 360° and tilt 180°, or the 26 mm miniature camera head—adapts to any task, while the integrated transmitter, together with the Wöhler L 200 Locator, enables fast, precise location of any damaged area. With touch-based autofocus, you can bring every problem into sharp focus.

DIGITALLY ON THE MOVE
Discover the freedom of digital inspection using the free Wöhler Video Inspection App. View live inspection footage on your smartphone or tablet, tweak image settings within the app and easily generate digital reports that can be sent straight to clients, the office or the insurance company.

Video VOHLER VIS750 HD












More products WOHLER

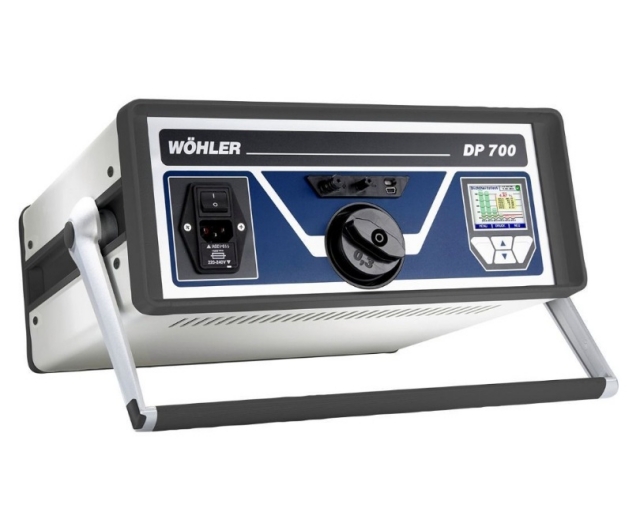

WOHLER DP700 AIR LEAKAGE TESTER FOR TESTING TIGHTNESS OF VAC SYSTEM

• Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m²
• Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
• Leakage testing of rooms
• On-site and laboratory measurements on structural components (e.g. OSB boards, windows)

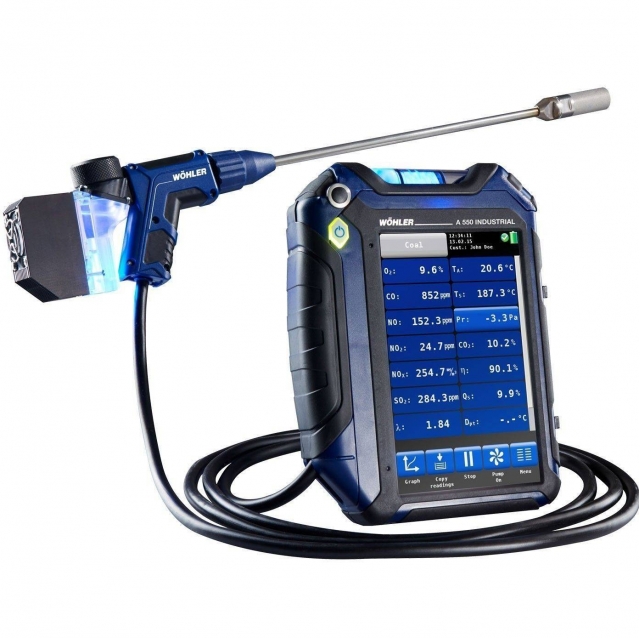

WOHLER A550 INDUSTRIAL FLUE GAS COMBUSTION ANALYZER

• Android iOS
• Flue Gas Analysis App
• Data transmission via USB, WiFi or infrared
• Robust Housing
• Printout on site
• CO-Sensor 100,000 ppm
• CO-Sensor 10,000 ppm (H2-compensated) 
• NO2-Sensor 1,000 ppm 
• SO2-Sensor 5,000 ppm
• CO2 NDIR-Sensor 0…40 Vol. %
• H2S-Sensor 350 ppm


WOHLER VIS300 & VIS350 VIDEO INSPECTION CAMERA FOR WATER WASTE, VENTILATION, FLUE GAS, DUCTWORK, PIPES

• CCS-image technology (Cristal Clear Screen)
• Optics pan 360° and tilt 180° - ensure even the smallest damage does not remain hidden from your view
• Save pictures and videos on a 4 GB SD card (Wöhler VIS 350)
• 20m or 30m Push rod Ø 6 mm

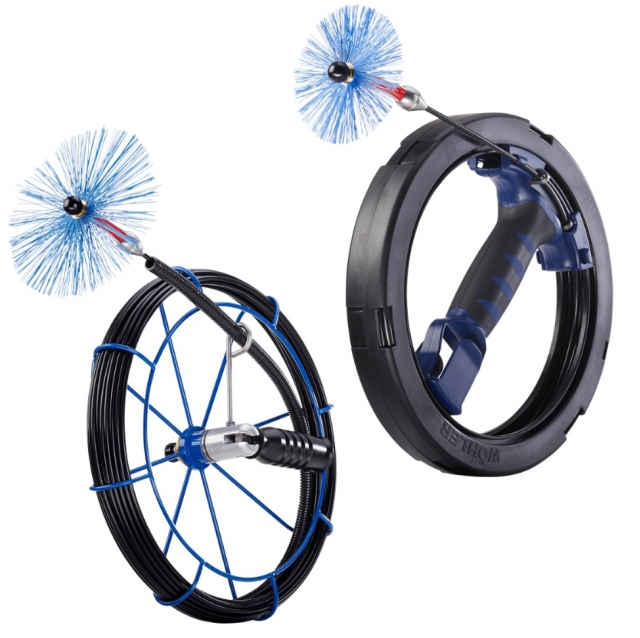

WOHLER VIPER S TOOL TO CLEAN FLUE GAS SYSTEMS, CHIMNEYS AS WELL AS DUCTS AND PIPEWORKS

• GRP Rod
• With resistant PA coat and distance marking
• Very light weigth
• Only 720 grams
• Very small diameter only 28 cm
• Ergonomic shape

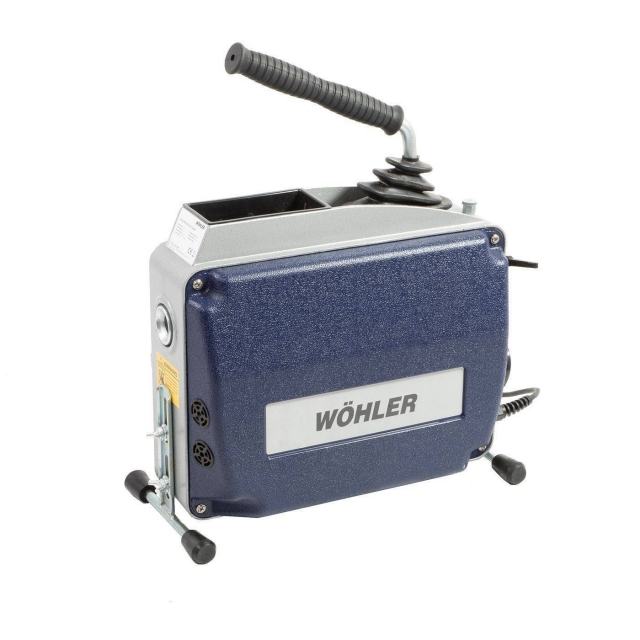

WOHLER RM200 DRAIN PIPES CLEANING MACHINE

• CLEANING OF WASTE WATER PIPES
• from Ø 40 mm to Ø 100 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable

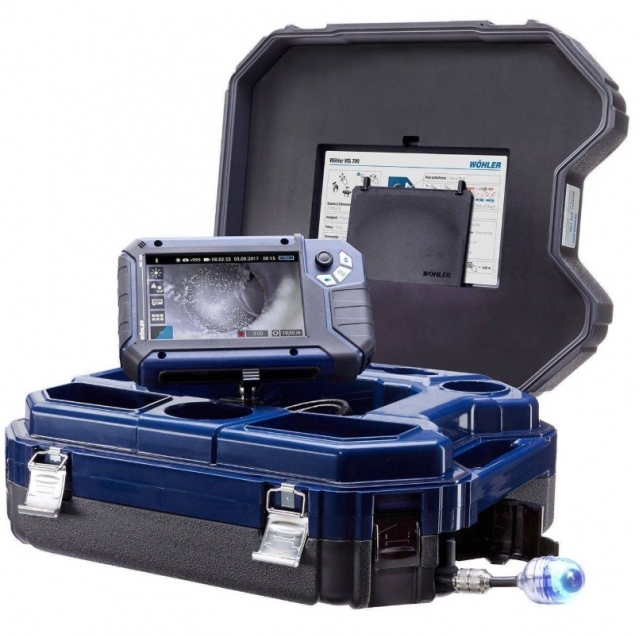

WOHLER VIS200 & VIS250 VIDEO INSPECTION CAMERA

• CCS-image technology (Cristal Clear Screen)
• Waterproof, light-sensitive camera head with a diameter of just 26 mm easily takes bends
• Save videos on a 4 GB SD card (Wöhler VIS 250)
• 20m or 30m Push rod Ø 6 mm

WOHLER VIS350PLUS VIDEO INSPECTION CAMERA WITH DETACHABLE HEAD

• Ø 40 mm camera head (detachable) or Ø 26 mm camera head (detachable)
• CCS-image technology (Cristal Clear Screen)
• Optics pan 360° and tilt 180° - ensure even the smallest damage does not remain hidden from your view
• Save pictures and videos on a 4 GB SD card (Wöhler VIS 350)
• 30m Push rod Ø 6 mm

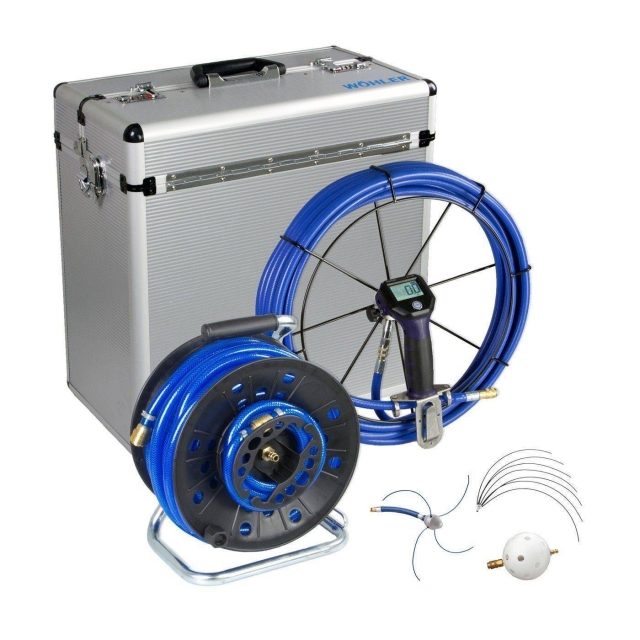

COMPRESSED AIR CLEANING SYSTEM FOR VENTILATION PIPES HVAC WOHLER

• Appropriate for small, round ventilation pipes up to 125 mm Ø.
• Backwards rotating helicopter nozzle causes a forward moving
• Easy operation
• Cleaning of pipes up to 7 m possible
• Professional Set
• Appropriate for round and angular ventilation pipes
• Easy operation of the Pneumatic Viper due to the belt holder
• Appropriate for small and big pipes

WOHLER VIS750 HD LONG DISTANCE VIDEO INSPECTION CAMERA SYSTEM

• Android iOS
• 60 or 40 m camera push rod
• For long distances or multiple changes of direction
• Self-leveling + HD quality
• Shake-free, crystal-clear images
• 360° rotation*
• Reaches every corner of the pipe's inner wall
• 180° pan function*
• For precise damage location, even in junctions

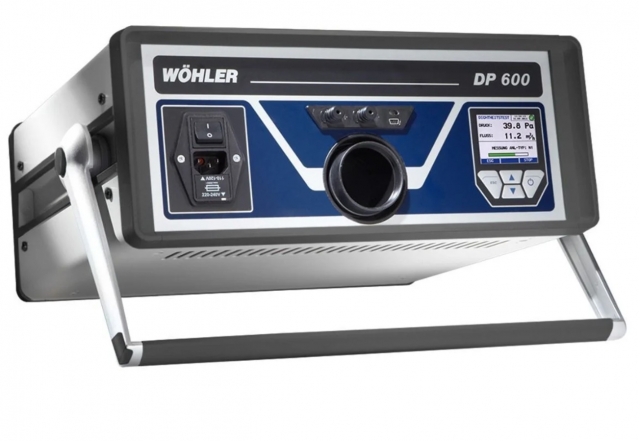

WOHLER DP600 LEAKAGE TESTER FOR TIGHTNESS TESTING OF ALL CHIMNEY CLASSES AND FLUE GAS SYSTEMS
