WOHLER DP600 Leakage Tester for Tightness testing of all chimney classes and flue gas systems

Code: DP600 2678J




Datasheet PDF, 0.32 Mb
Datasheet PDF, 0.04 Mb


Description

Woehler Leakage Tester
  • Tightness testing with leakage rates up to 200.00 m³/h
  • Tightness testing of all chimney classes and flue gas systems
  • Tightness testing of flue gas systems of combined heat and power plants
  • Confirmation of a sufficient combustion air supply according to TRGI sheet G 625 (simple and detailed procedure)
  • Stove tightness testing
  • Tightness testing is also possible with negative pressure
  • Tightness testing with leakage rates up to 200.00 m³/h
  • Extended pressure range up to ±7,000 Pa
  • Tightness classes preset for flue gas systems N, P and H according to EN 1443
  • 4 / 8 Pa-Test without any auxiliary measuring instrument

Tightness testing of all chimney classes and flue gas systems

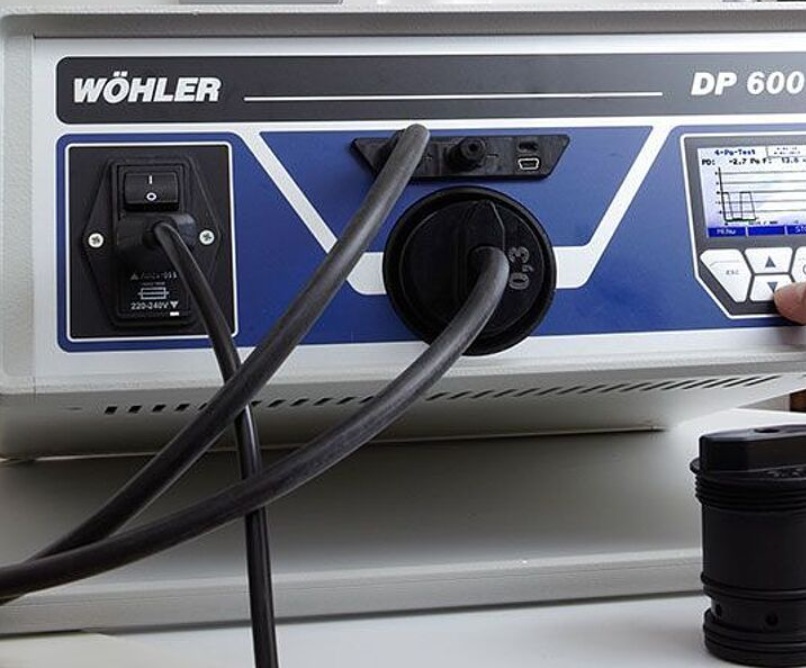

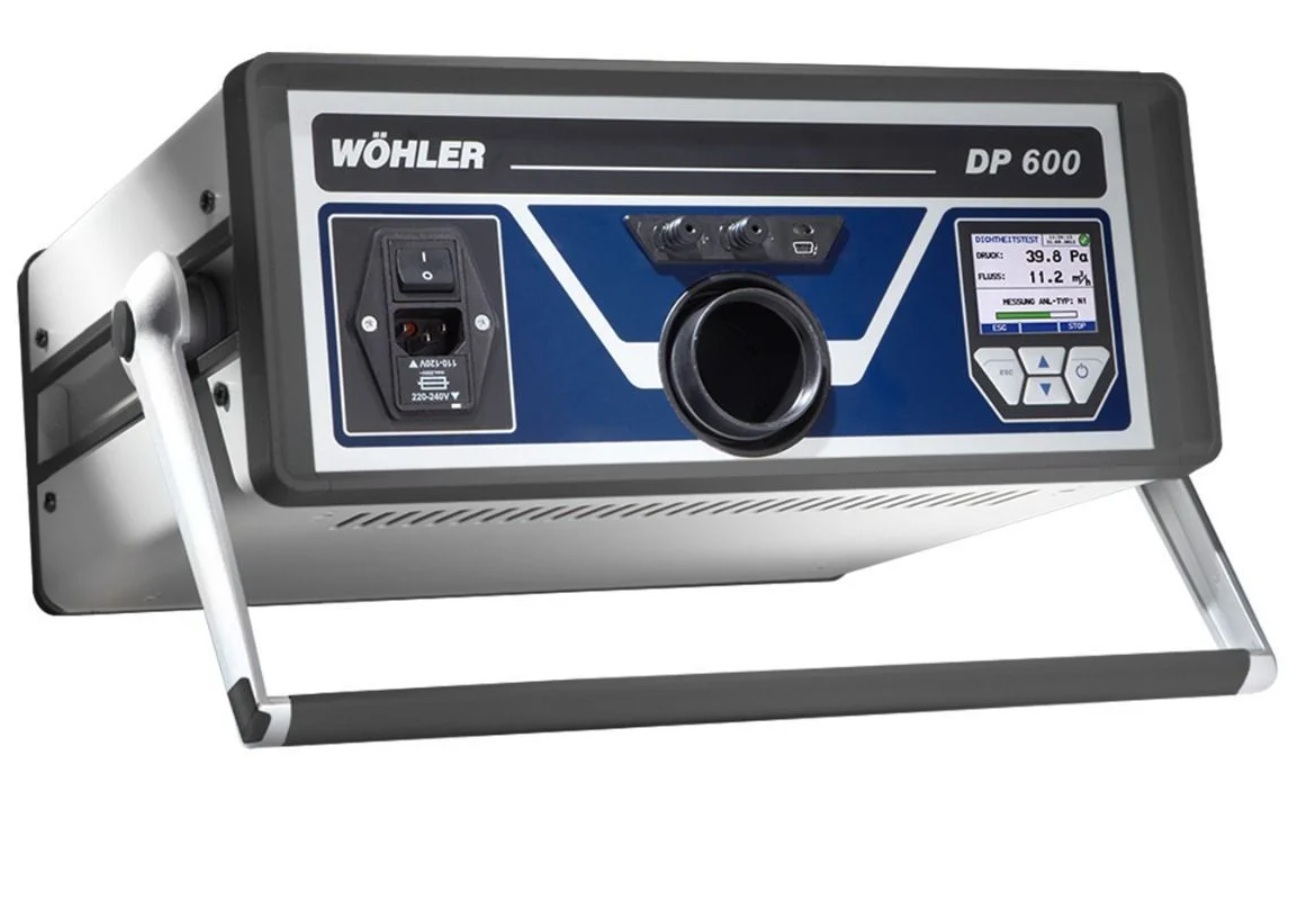

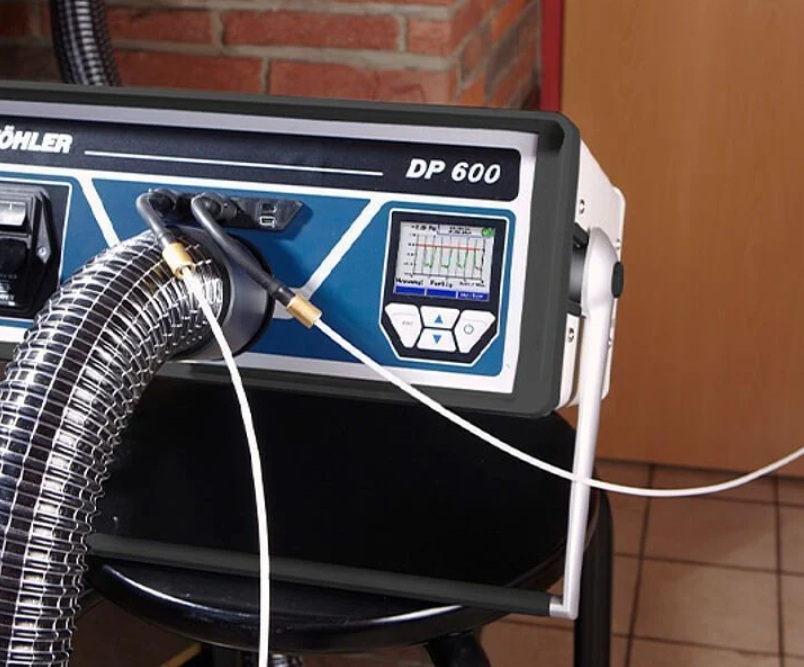

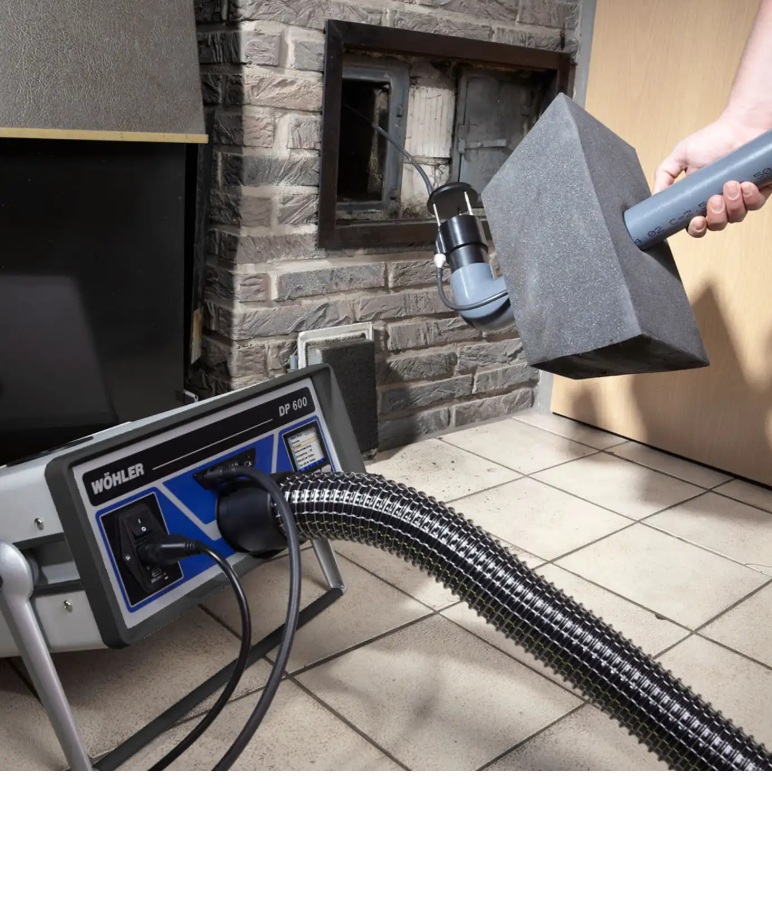

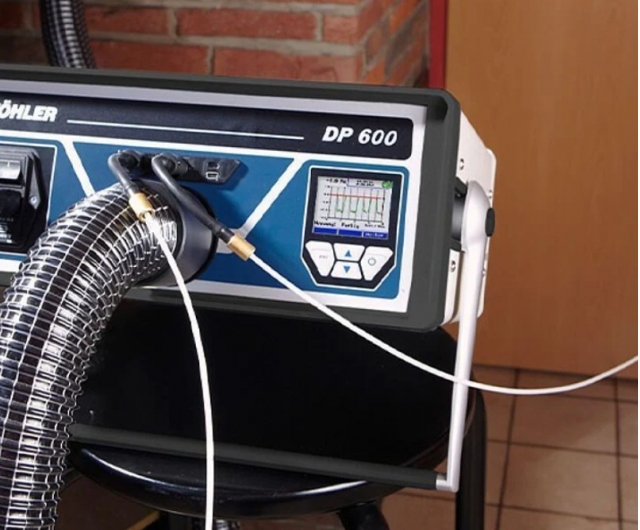

The Wöhler DP 600 checks the tightness of exhaust ducts and chimneys. The menu enables the user to select between the different installation types. The Wöhler DP 600 regulates automatically the pressure which is necessary for the flue gas systems type P1 (exhaust ducts), H1 (combined heat and power plants, exhaust ducts with high pressure), N1 and N2 (chimneys) and determines the leakage rate automatically.
It also disposes of a variable mode which allows the user to select the test pressure and the leakage rate. This way, tightness tests of ventilation systems or flue gas systems type P2 or H2 are also possible. A thermal fast printer can print all results.

Confirmation of a sufficient combustion air supply
New: Also suitable for the confirmation of a sufficient combustion air supply according to DVGW 625 („simple procedure" and „detailed procedure") with the necessary differential pressure test (4 Pa test). No auxiliary measuring instrument will be necessary.

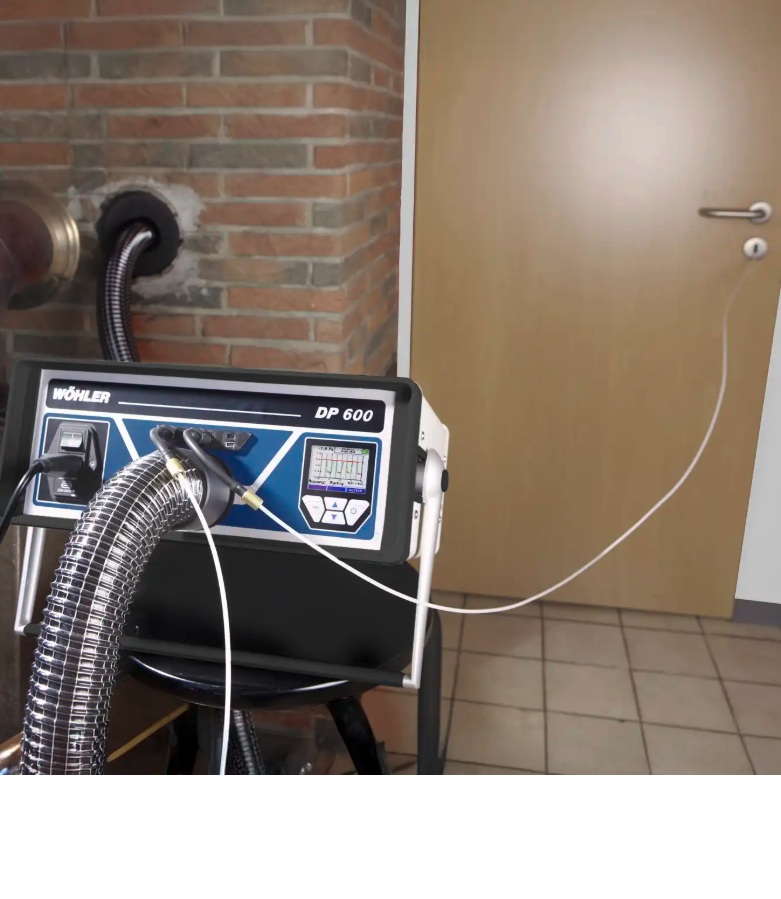

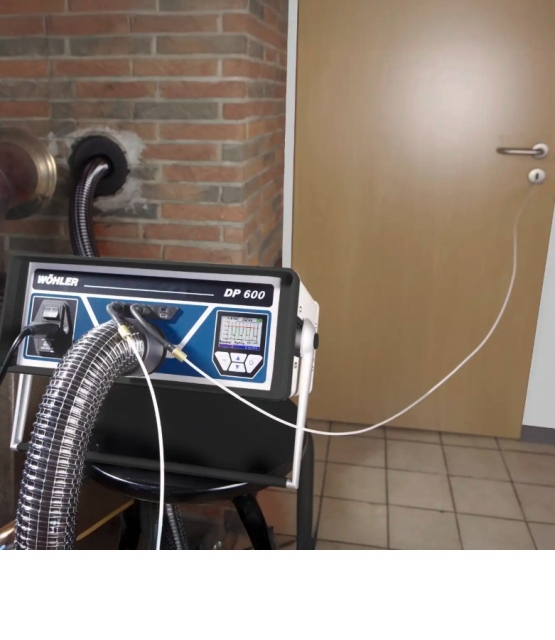

The Wöhler DP 600 simulates the combustion air inlet of a fireplace. After the user has entered the capacity of the fireplace, the Wöhler DP 600 will produce automatically the corresponding volume flow which passes through the chimney and will  register the pressure progression in the room.







More products WOHLER

WOHLER VIS200 & VIS250 VIDEO INSPECTION CAMERA

• CCS-image technology (Cristal Clear Screen)
• Waterproof, light-sensitive camera head with a diameter of just 26 mm easily takes bends
• Save videos on a 4 GB SD card (Wöhler VIS 250)
• 20m or 30m Push rod Ø 6 mm

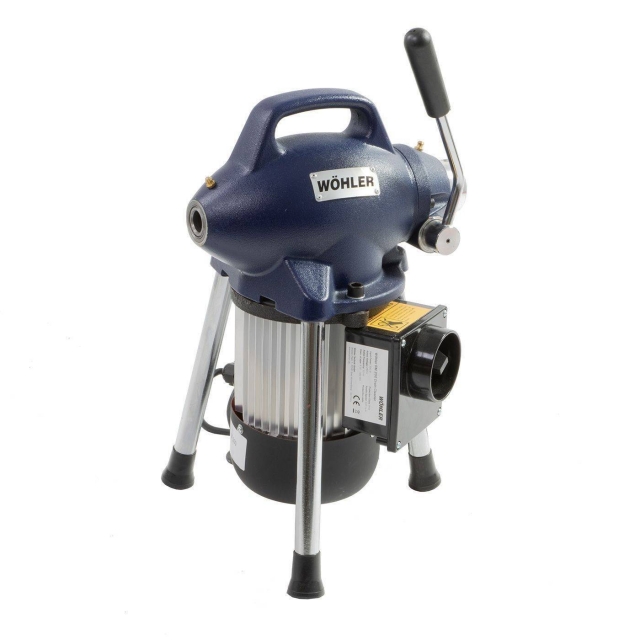

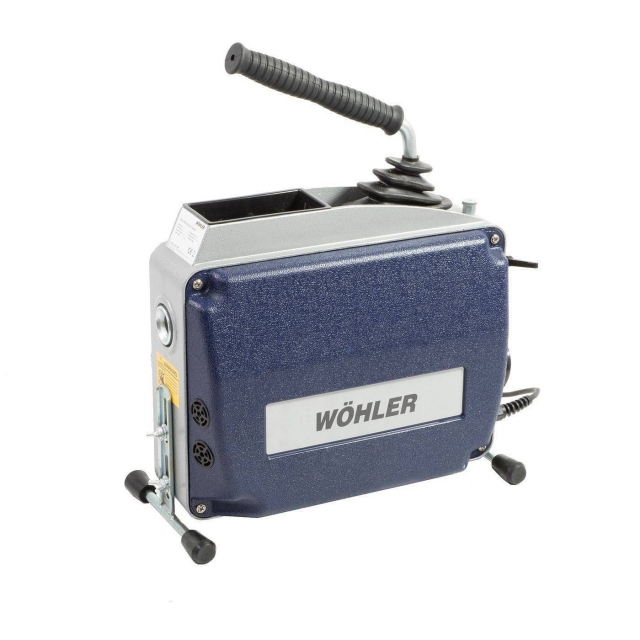

WOHLER RM200 DRAIN PIPES CLEANING MACHINE

• CLEANING OF WASTE WATER PIPES
• from Ø 40 mm to Ø 100 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable

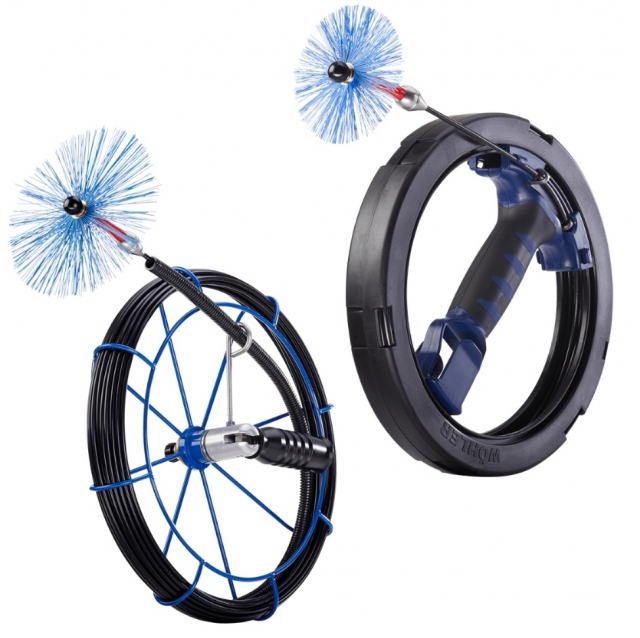

WOHLER VIPER S TOOL TO CLEAN FLUE GAS SYSTEMS, CHIMNEYS AS WELL AS DUCTS AND PIPEWORKS

• GRP Rod
• With resistant PA coat and distance marking
• Very light weigth
• Only 720 grams
• Very small diameter only 28 cm
• Ergonomic shape



WOHLER VIS350PLUS VIDEO INSPECTION CAMERA WITH DETACHABLE HEAD

• Ø 40 mm camera head (detachable) or Ø 26 mm camera head (detachable)
• CCS-image technology (Cristal Clear Screen)
• Optics pan 360° and tilt 180° - ensure even the smallest damage does not remain hidden from your view
• Save pictures and videos on a 4 GB SD card (Wöhler VIS 350)
• 30m Push rod Ø 6 mm

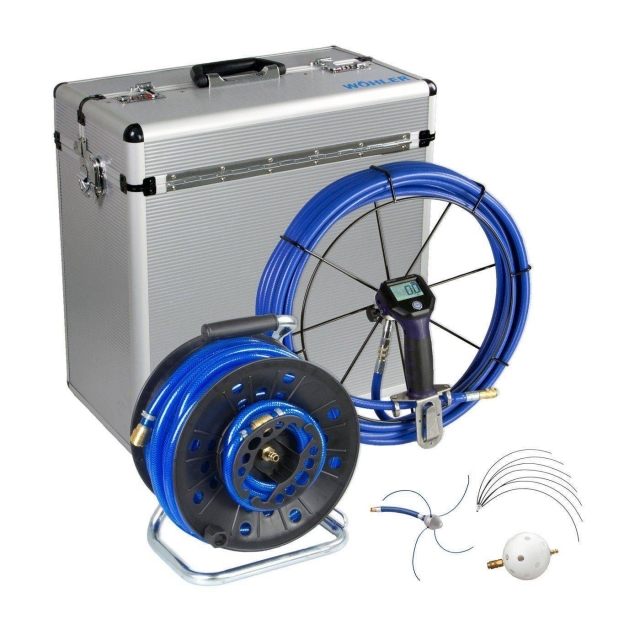

COMPRESSED AIR CLEANING SYSTEM FOR VENTILATION PIPES HVAC WOHLER

• Appropriate for small, round ventilation pipes up to 125 mm Ø.
• Backwards rotating helicopter nozzle causes a forward moving
• Easy operation
• Cleaning of pipes up to 7 m possible
• Professional Set
• Appropriate for round and angular ventilation pipes
• Easy operation of the Pneumatic Viper due to the belt holder
• Appropriate for small and big pipes


WOHLER DP600 LEAKAGE TESTER FOR TIGHTNESS TESTING OF ALL CHIMNEY CLASSES AND FLUE GAS SYSTEMS

• Tightness testing with leakage rates up to 200.00 m³/h
• Tightness testing of all chimney classes and flue gas systems
• Tightness testing of flue gas systems of combined heat and power plants
• Confirmation of a sufficient combustion air supply according to TRGI sheet G 625 (simple and detailed procedure)
• Stove tightness testing

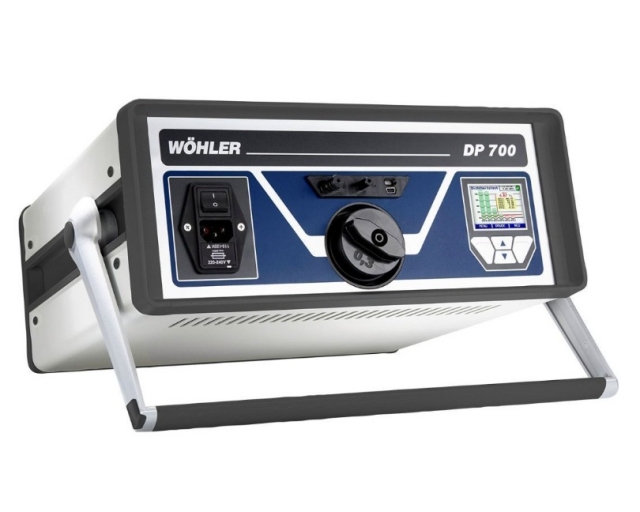

WOHLER DP700 AIR LEAKAGE TESTER FOR TESTING TIGHTNESS OF VAC SYSTEM

• Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m²
• Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
• Leakage testing of rooms
• On-site and laboratory measurements on structural components (e.g. OSB boards, windows)

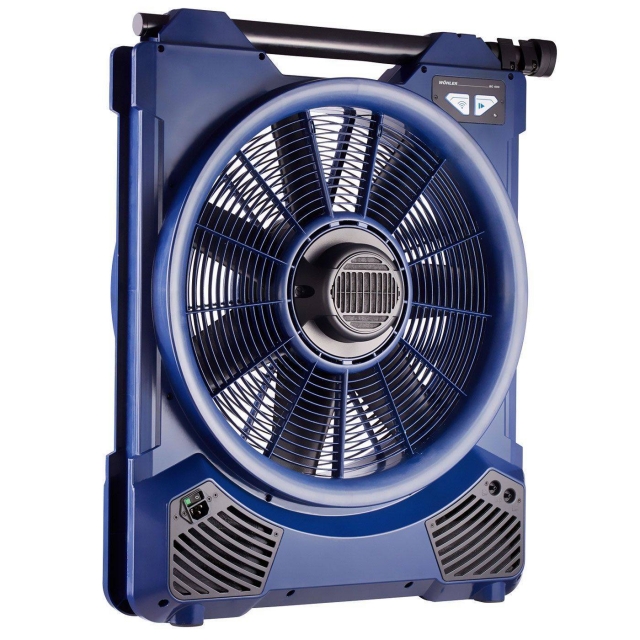

BLOWER DOOR WOHLER BC600 FULLY AUTOMATIC AIRTIGHTNESS CHECK OF THE BUILDING ENVELOPE
