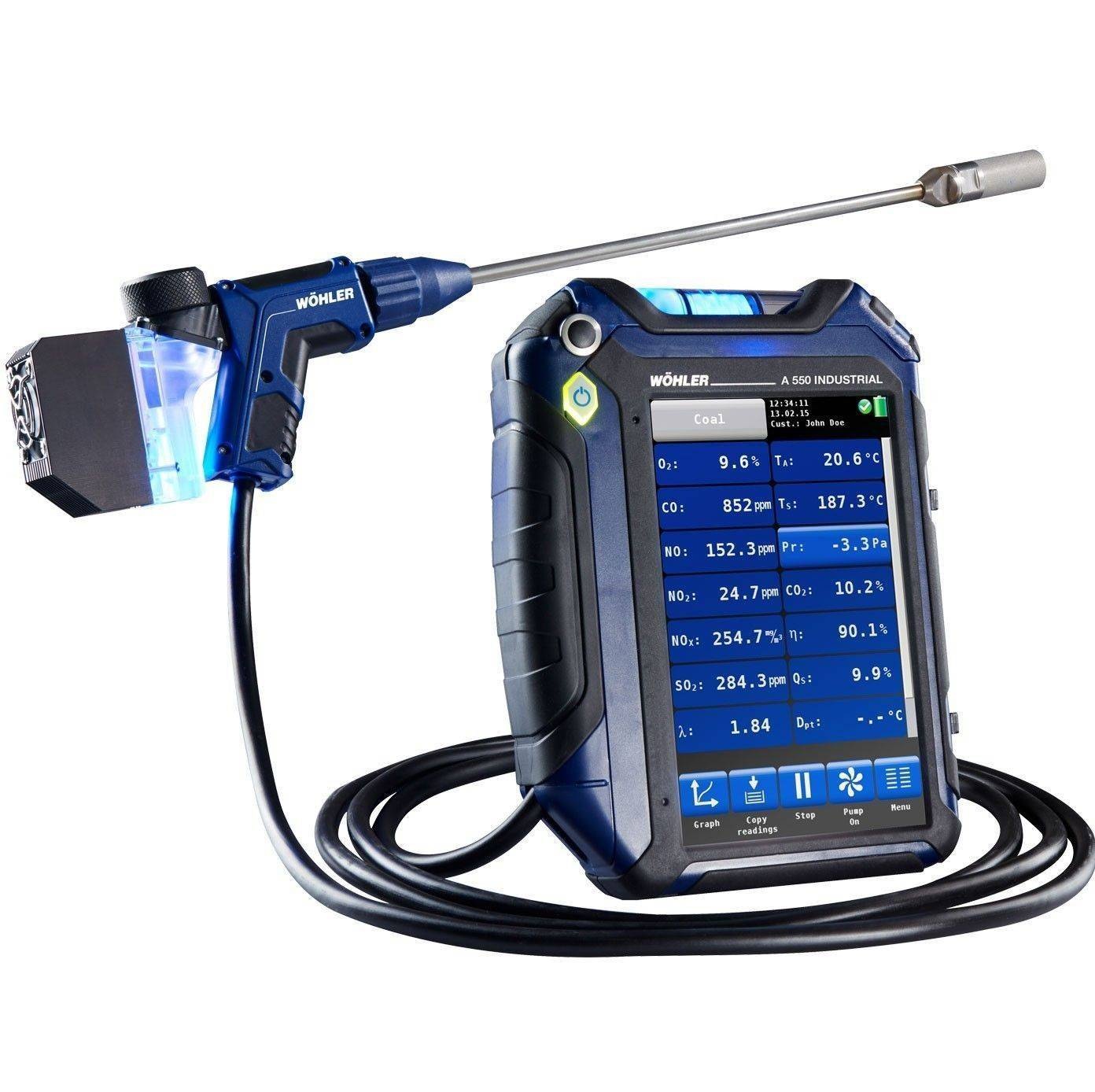

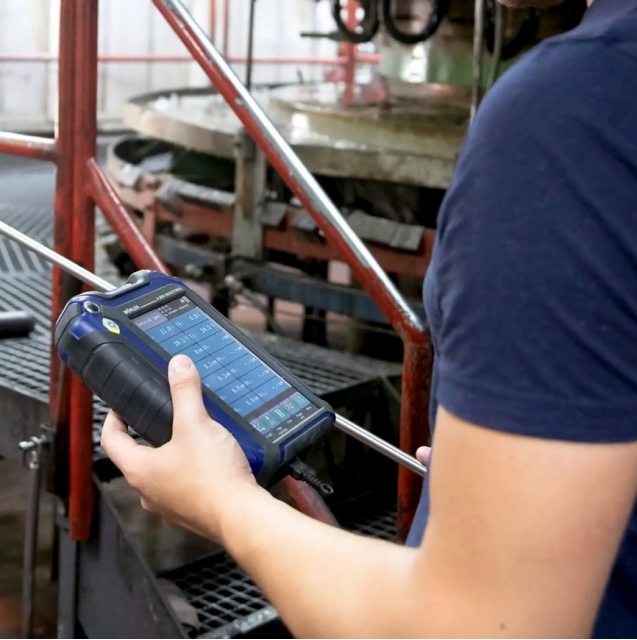

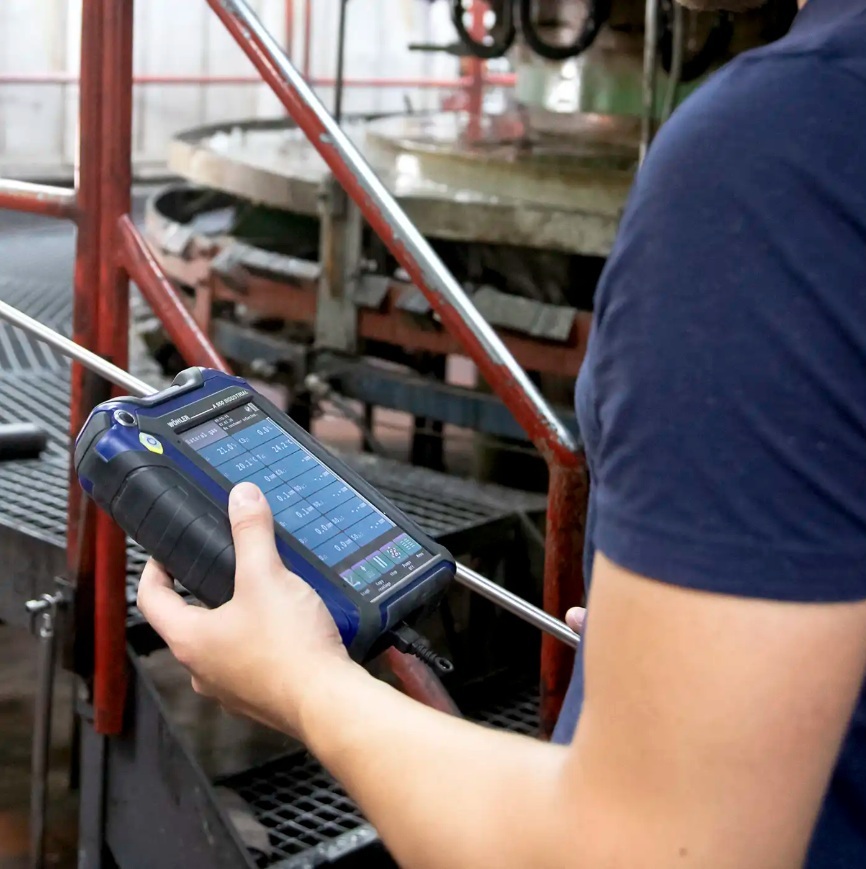

WOHLER A550 Industrial Flue Gas Combustion Analyzer

Code: A550 A550L 2948J 2947J 8702J



Datasheet PDF, 1 Mb
Datasheet PDF, 0.34 Mb


Description

Woehler Flue Gas Analyzer
As easy to operate as a smartphone – that‘s what Wöhler‘s Flue Gas Analyser feels like in your hand. Appropriately, the advantages are equally substantial: A tap with your finger on the Wöhler A 550 L/A 550 is all that is required to perform analyses, inspections and settings in accordance with EN 50379. The robust Wöhler A 550 Flue Gas Analyser offers a variety of measurements e.g. Efficiency-, Emission-, Supply Air-, CO Ambient- and Wood Moisture Testing. The outstanding performance of the analyser is approved and certified by international test house like TÜV and CPA.

  • Android iOS
  • Flue Gas Analysis App
  • Data transmission via USB, WiFi or infrared
  • Robust Housing
  • Printout on site

  • CO-Sensor 100,000 ppm
  • CO-Sensor 10,000 ppm (H2-compensated) 
  • NO2-Sensor 1,000 ppm 
  • SO2-Sensor 5,000 ppm
  • CO2  NDIR-Sensor 0…40 Vol. %
  • H2S-Sensor 350 ppm

Portable Flue Gas Analyzer with superior accuracy
No matter how you look at it, the new Wöhler A 550 INDUSTRIAL really is a „nifty piece of equipment": The individual functions can be launched as intuitively as using a smartphone via the large 7" color touchscreen. And the brightly lit monitor can be read anywhere. The large screen, the clear arrangement and the graphical presentation of readings allow excellent readability.

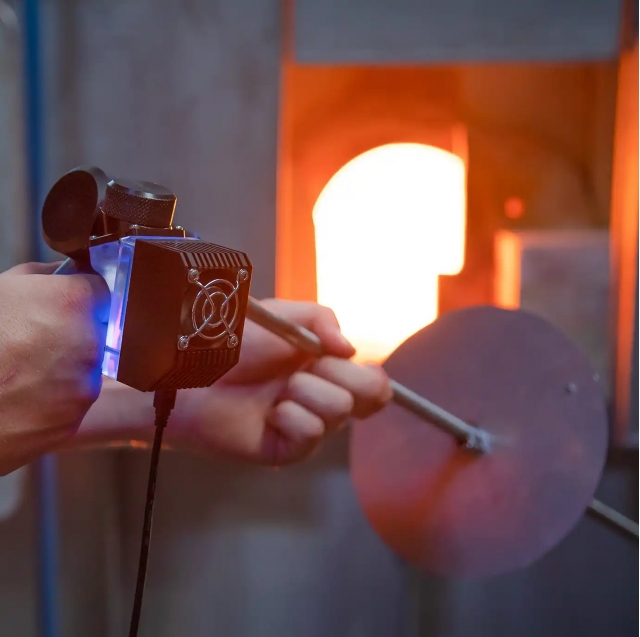

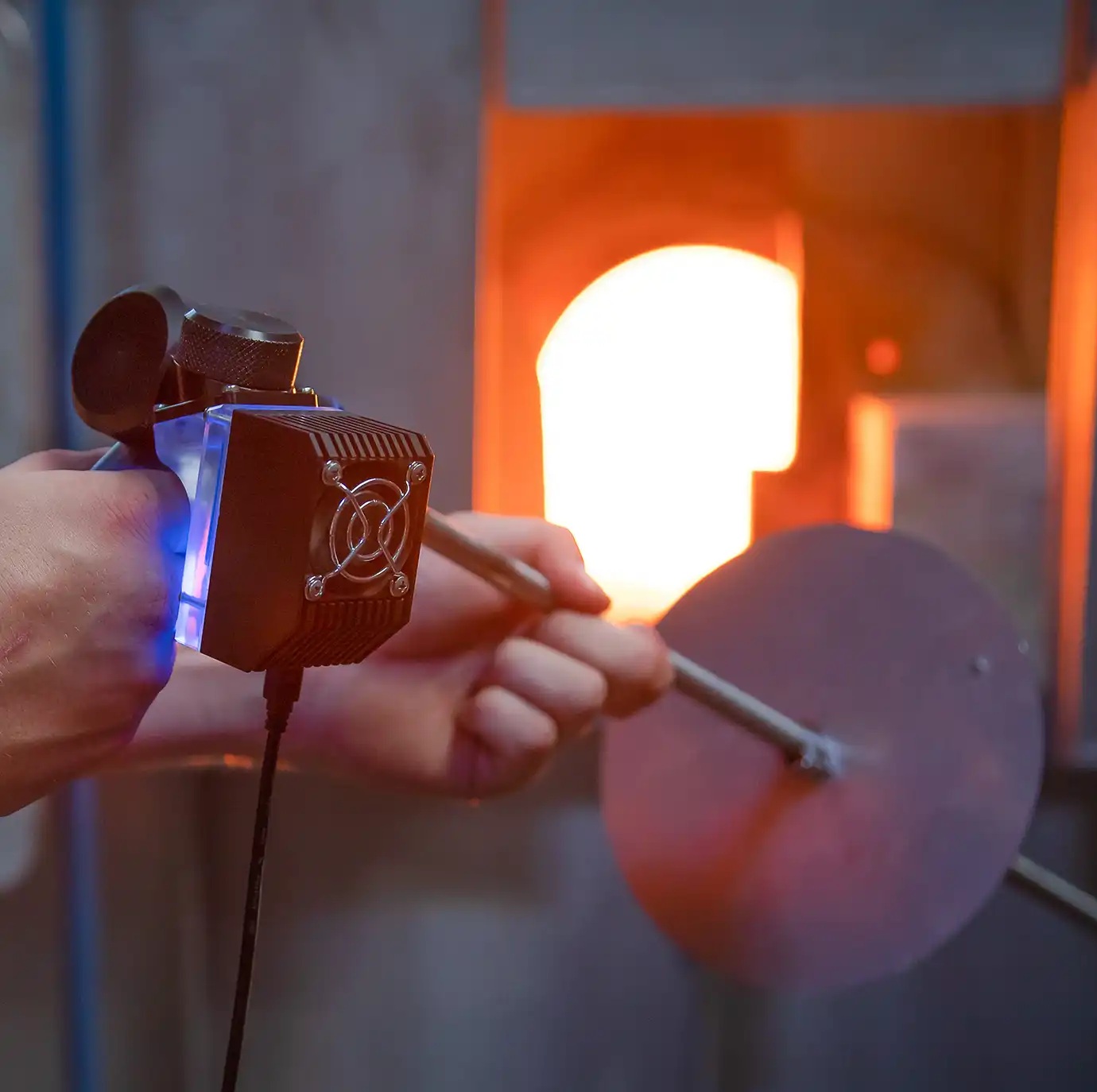

High temperature probe up to 1.200°C
With our new high temperature probe you can perform measurements in environments with a temperature up to 1.200°C. The high variety of different sensors makes the instrument suitable for all your applications.

Battery-driven Peltier cooler

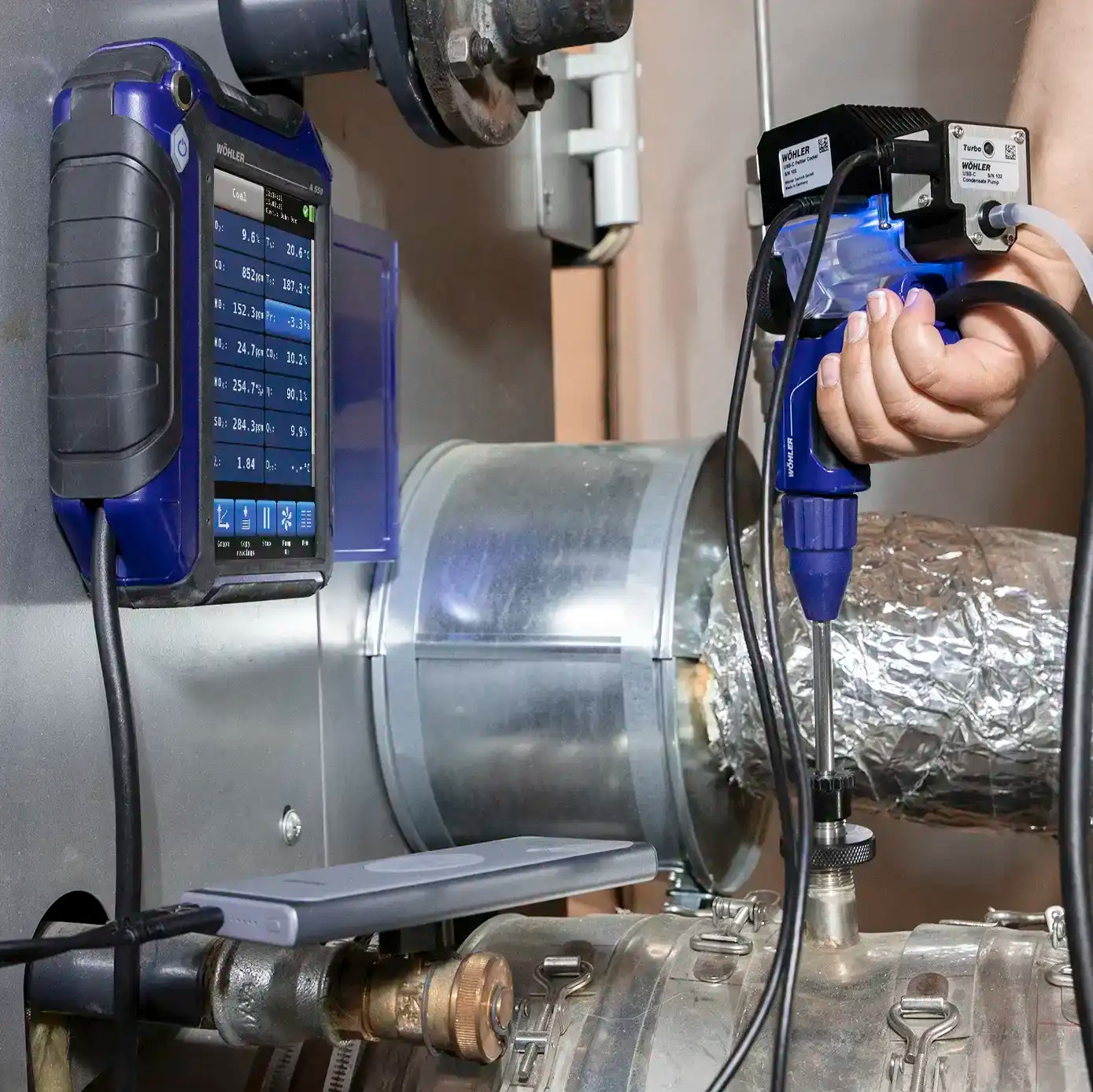

The new battery-driven Peltier cooler ensures both accurate NOX and SOX readings and off-grid flexibility. Filtering the flue gas right behind the probe the Peltier cooler prepares the gas so only dry flue gas will enter the device for a reliable and stable measurement.

Application
  • For industrial heating systems
  • For burner adjustment and determination of
  • combustion loss
  • For commercial and industrial applications
  • In-stack sinter-filter for heavy dust loaded samples
  • High temperature processes


Functionality
  • Simple to use: Switch on – read – off – done
  • Large, colour touchscreen: Displays up to
  • 14 measurement and calculation values
  • Intuitive to operate via on-screen keyboard
  • Calibration in the flue gas pipe via fresh air pump
  • Graphical hot spot search
  • 12 month warranty without maintenance contract 1)

Safety / Reliability
  • Effective dust and condensate protection
  • Analyser and sensor diagnostics
  • Sensor replacement – user-friendly
  • Rechargeable battery: more than 7 h with
  • Lithium-ion power
  • Hose assembly – robust and flexible

Data management
  • 1,000 measurement records
  • Compatible with the Flue Gas Analysis App for
  • Android and iOS
  • Data transfer via USB, WiFi or Infrare


Video WOHLER A550






More products WOHLER

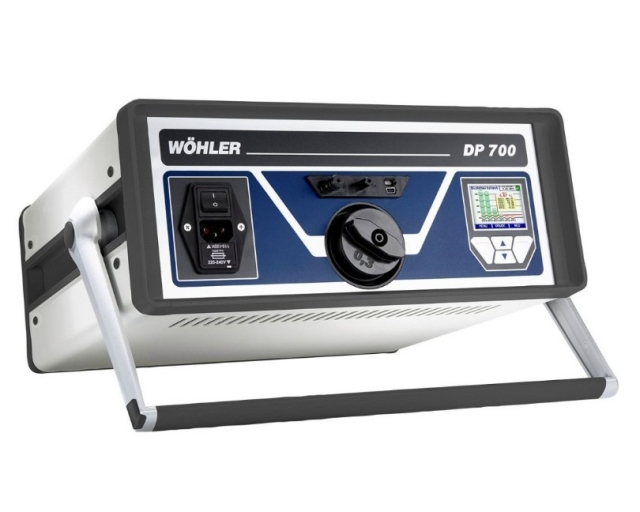

WOHLER DP700 AIR LEAKAGE TESTER FOR TESTING TIGHTNESS OF VAC SYSTEM

• Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m²
• Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
• Leakage testing of rooms
• On-site and laboratory measurements on structural components (e.g. OSB boards, windows)

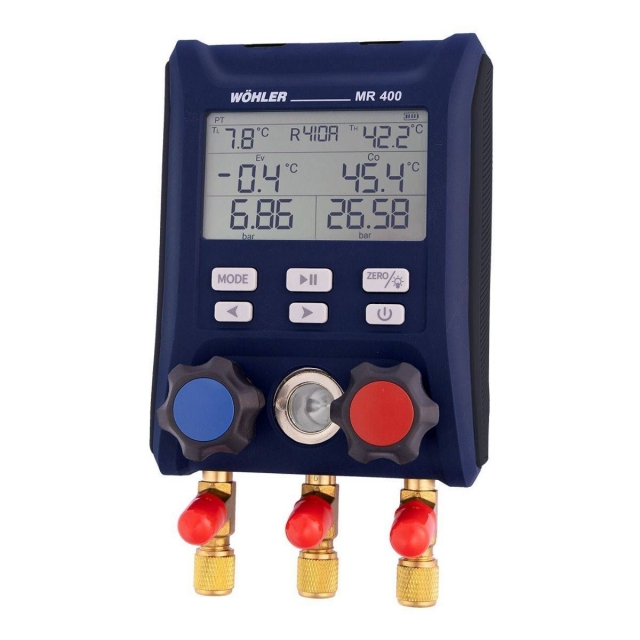

WOHLER MR400 REFRIGERANT MANIFOT TESTER

• Robust housing
• Large, digital display so everything is in view
• Rubber coating for slip resistance
• For all common refrigerants


WOHLER A550 INDUSTRIAL FLUE GAS COMBUSTION ANALYZER

• Android iOS
• Flue Gas Analysis App
• Data transmission via USB, WiFi or infrared
• Robust Housing
• Printout on site
• CO-Sensor 100,000 ppm
• CO-Sensor 10,000 ppm (H2-compensated) 
• NO2-Sensor 1,000 ppm 
• SO2-Sensor 5,000 ppm
• CO2 NDIR-Sensor 0…40 Vol. %
• H2S-Sensor 350 ppm

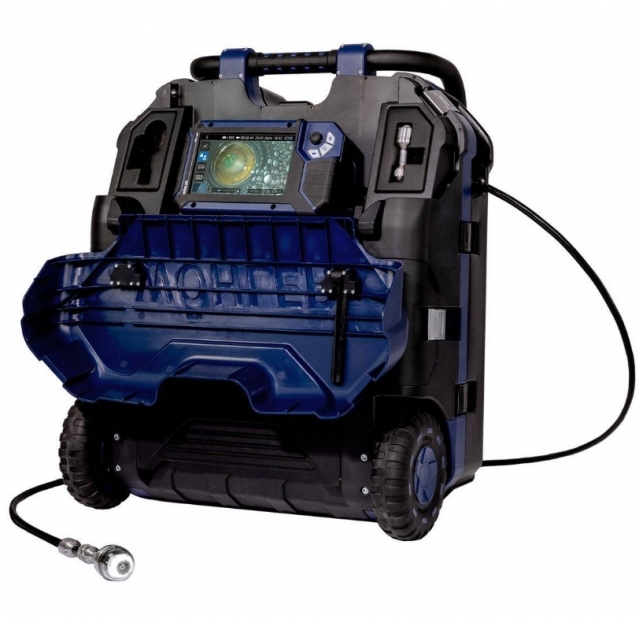

WOHLER VIS400 MODULAR VIDEO INSPECTION CAMERA SYSTEM PROFESSIONAL

• modular design allows combining the monitor with different camera heads, pushrods or soft cables
• Recording of still images, videos and voice support you to report your inspections properly
• Meter counting, home function, level indication and sonde for radio location
• the most advanced Wöhler VIS 400 video inspection system
• CCS-image technology (Cristal Clear Screen)

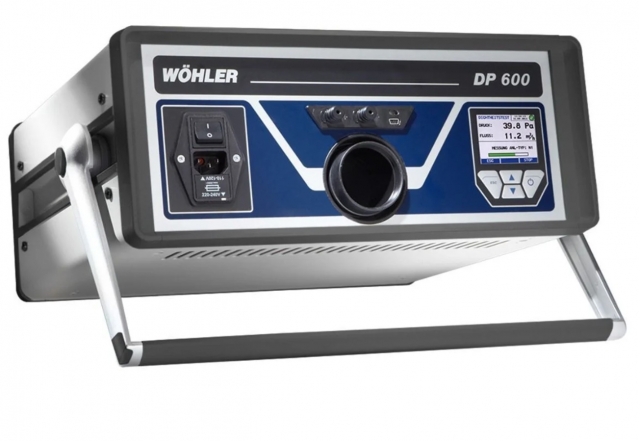

WOHLER DP600 LEAKAGE TESTER FOR TIGHTNESS TESTING OF ALL CHIMNEY CLASSES AND FLUE GAS SYSTEMS

• Tightness testing with leakage rates up to 200.00 m³/h
• Tightness testing of all chimney classes and flue gas systems
• Tightness testing of flue gas systems of combined heat and power plants
• Confirmation of a sufficient combustion air supply according to TRGI sheet G 625 (simple and detailed procedure)
• Stove tightness testing


WOHLER VIS200 & VIS250 VIDEO INSPECTION CAMERA

• CCS-image technology (Cristal Clear Screen)
• Waterproof, light-sensitive camera head with a diameter of just 26 mm easily takes bends
• Save videos on a 4 GB SD card (Wöhler VIS 250)
• 20m or 30m Push rod Ø 6 mm

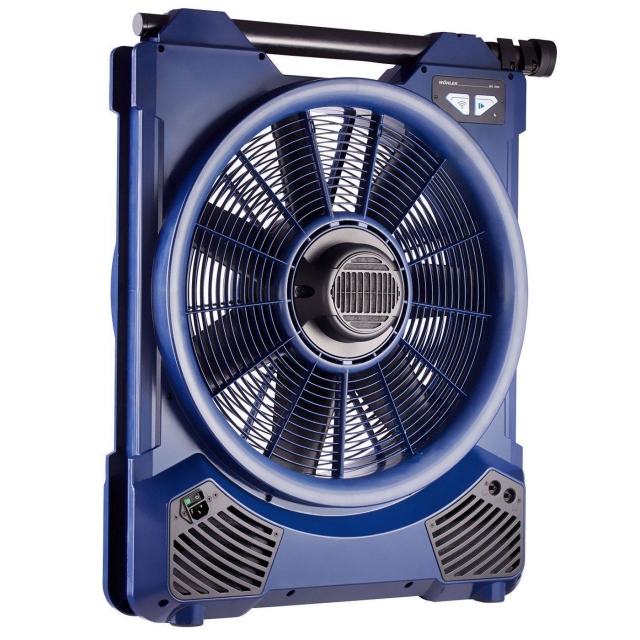

BLOWER DOOR WOHLER BC600 FULLY AUTOMATIC AIRTIGHTNESS CHECK OF THE BUILDING ENVELOPE

• Fully automatic airtightness check of the building envelope
• Completely on site
• Complete measurement, evaluation and documentation
• Innovative and time-saving installation concept
• For windows and doors
• Fully automatic Blower Door measurement
• Compliant with standards
• No turning of the device necessary
• Negative and positive pressure measurements

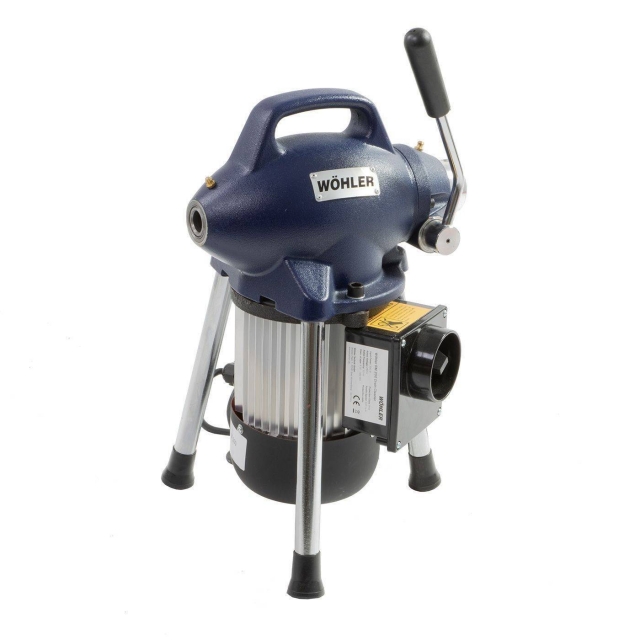

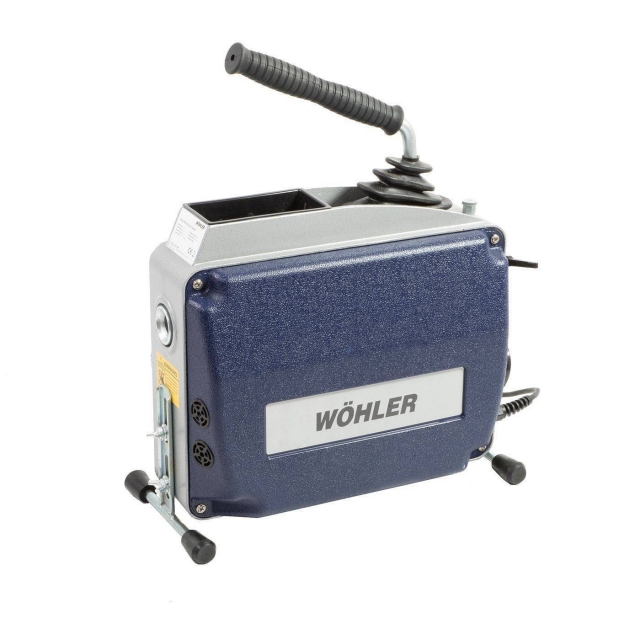

WOHLER RM200 DRAIN PIPES CLEANING MACHINE

• CLEANING OF WASTE WATER PIPES
• from Ø 40 mm to Ø 100 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable

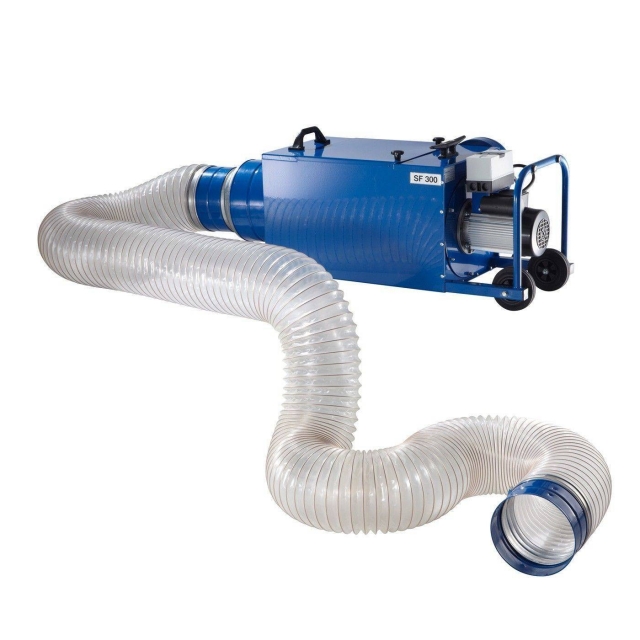

WOHLRE SF300 DUST COLLECTOR FOR VENTIALTION AIR SYSTEMS

• strong negative pressure to extract dirt and dust particles directly during the cleaning process
• Simultaneous connection of 2 hoses possible
• Easy to transport and simple set up
• Hose extension for hard to reach vents

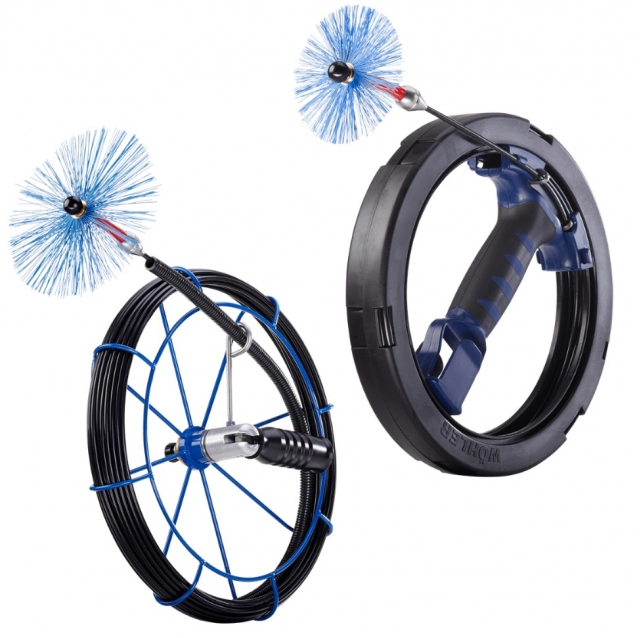

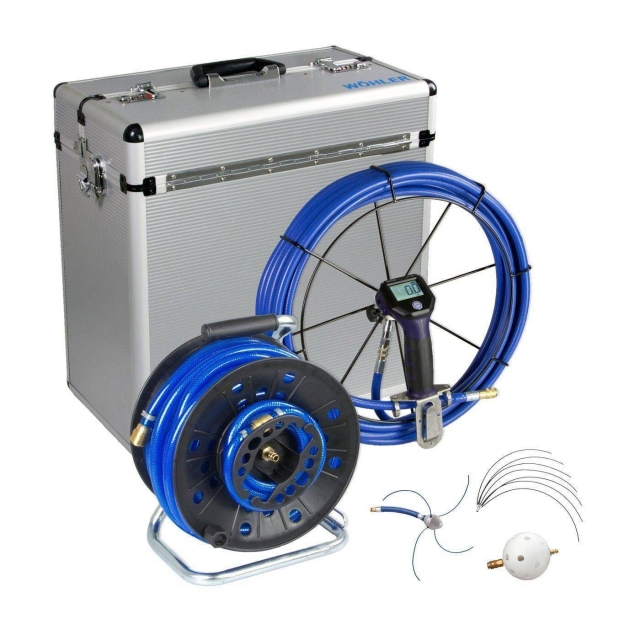

COMPRESSED AIR CLEANING SYSTEM FOR VENTILATION PIPES HVAC WOHLER
