STANDARD RESISTORS
On request various values and precision described below and boxes containing several values at your choice
Included certificate of calibration of our laboratory

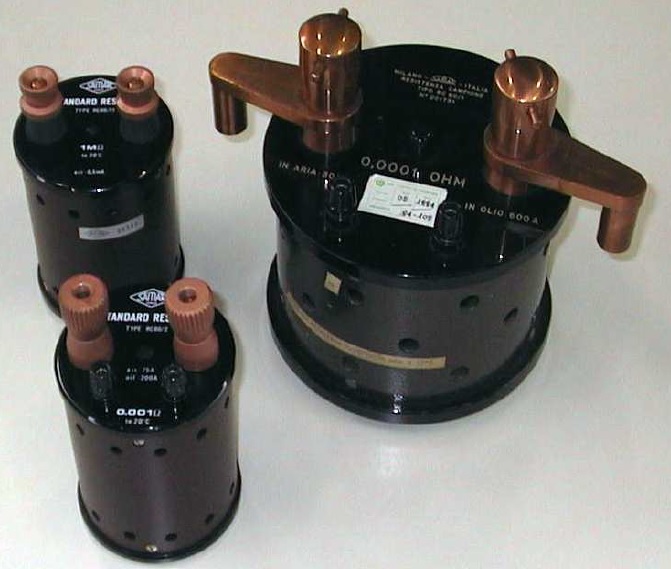

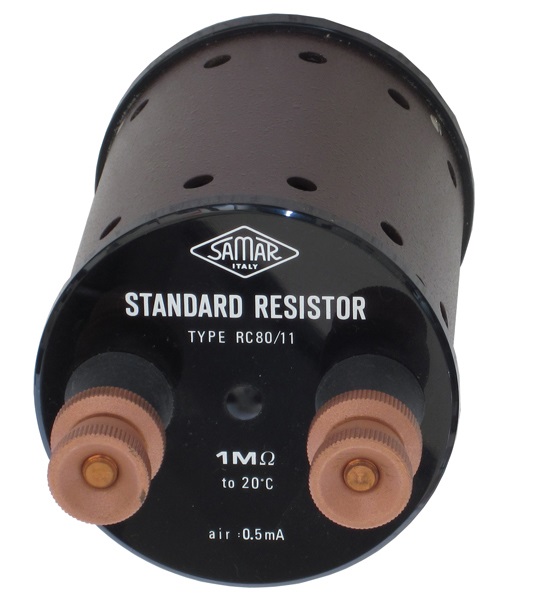

Fixed value standard resistances
high-accuracy used as standard in laboratory.
SAMAR certificate of calibration is supplied with each standard resistor.
The standard production includes sample resistances multiple of 10.
-
Long term stability: +/- 10 ppm per year
-
Resistances from 0.0001? to 10? are 4 terminals
-
Resistances from 100? to 10M? are two electrolytic copper terminals with 2 screws, one for current and one for voltage
-
The potential terminals are screwed with plug connection.
-
Current terminals are of electrolytic copper widely sizeable.
|
Type |
Nominal Value
O |
Max Current in Air, A |
Max Current in Oil, A |
Power dissipation in Air, W |
Precision %
t= 20 ± 0,5 °C |
Max deviation from nominal value
t= 20 ± 0,5 °C |
|
RC80/1 |
0,0001 |
300 |
600 |
9 |
± 0,01 |
± 0,05 |
|
RC80/2 |
0,001 |
75 |
200 |
5,6 |
± 0,01 |
± 0,02 |
|
RC80/3 |
0,01 |
30 |
70 |
9 |
± 0,005 |
± 0,01 |
|
RC80/4 |
0,1 |
5 |
15 |
2,5 |
± 0,002 |
± 0,005 |
|
RC80/5 |
1 |
1,5 |
4 |
2,25 |
±0,002 |
± 0,005 |
|
RC80/6 |
10 |
0,5 |
2,5 |
2,5 |
± 0,002 |
± 0,005 |
|
RC80/7 |
100 |
0,2 |
0,5 |
4 |
± 0,002 |
± 0,005 |
|
RC80/8 |
1.000 |
0,07 |
0,15 |
5 |
± 0,002 |
± 0,005 |
|
RC80/9 |
10.000 |
0,015 |
0,03 |
2,25 |
± 0,002 |
± 0,005 |
|
RC80/10 |
100.000 |
0,005 |
0,01 |
2,5 |
± 0,005 |
± 0,01 |
|
RC80/11 |
1.000.000 |
0,0005 |
0,01 |
0,25 |
± 0,005 |
± 0,02 |
|
More products SAMAR
INDUCTANCE PRECISION DECADE BOXE SAMAR CI
• certificate of calibration of our laboratory
• DECADES BOXES OF INDUCTANCE with switch
• Copper coils wrapped in air Precision to1.000Hz at terminals ±1%
• ON REQUEST BOXES AT VARIOUS SECTIONS AND TO 1 OR 2 DECADES
|
STANDARD CAPACITOR WITH FIXED VALUE FOR CALIBRATING SAMAR CC-E50
• Values from 1nF to 1µF
• ON REQUEST DIFFERENT VALUES FROM THE ONES SHOWN
• Nominal voltage : 500Vdc
• Temperature coefficient: - (100 ± 50) x 10-6 /°C
• Test voltage: 2,000Vdc
• Insulation resistance: 500,000 MW
• Precision: ± 0.5 % at 1,000 Hz, between terminals
|
RESISTANCE PRECISION DECADE BOXE SAMAR CR
• DECADES BOXES OF RESISTANCE with switch precision 0.05% at terminals
• Calibration precision: ± 0.02 %
• Thanks to an opportune seasoning process the long term stability is ensured: 10 ppm in the first year and max 20 ppm in three years.
• Switches have a resistance of contact lower than 0.001 W invariable in the time.
• certificate of calibration of our laboratory
|
RESISTANCE DECADE BOX SAMAR CR-B
• Power: 0.5 W permanent
• Resistances: 0.1W and 1 W to coil, from 10W to 1 MW metal film to 50ppm
• Security rule terminals
• Plastic box, panel of aluminium with serigraphy
• Double insulation
• Work frequency: 0 - 500 KHz
• Precision: 0.5 %
|
RESISTIVE PRECISION DECADE BOXE SAMAR CR-E
• DECADES BOXES OF RESISTANCE with switch precision 0.1% at terminals
• Calibration precision: ± 0.02 %
• The precision shown refers to the terminals and therefore is total resistance included the resistance of zero
• Resistors are in manganine wire (temperature coefficient ± 10 ppm/°C) wrapped in ant-inductive way.
• Thanks to an opportune seasoning process the long term stability is ensured: : 10 ppm in the first year and max. 20 ppm in three years
|
RESISTOR BOX IN STEPS HIGH VALUES AND HILGH VOLTAGE 5KV SAMAR CRC/4
• Decade box with spires
• studied to simulate high resistance
• suitable to check the insulation testers with test voltage up to 5000V d.c.
• Ranges that can be made with the 4 contact spires supplied: 10x1 M?, 10x10M?, 10x100M?, 10x1G?.
• Temperature coefficient: 100 ppm °C .
• Max power 2W for each element.
• Applicable max voltages : 1250V with 1M?, 2500V with 2M?, 3750V with 3M? and 5000V for values higher than 3M?.
|
RESISTANCE BOX IN STEPS VOLTAGE POTENTIAL DIVIDER SAMAR CRC/1
• Used as a potential divider or for calibration (for example insulation tester)
• Chemical resistances of high stability, with dissipation 1W
• Precision 1% dc and ac up to 1 MHz. (on request execution at 0.1% )
• Range: 0 to 500M? with terminals for the following values:
• 0.5 - 1 - 2 - 3 - 4 - 5 - 10 - 20 -30 - 40 - 50 - 100 - 200 - 300 - 400 - 500 K?
• 1 - 2 - 3 - 4 - 5 - 10 - 20 -30 - 40 - 50 - 100 - 200 - 300 - 400 - 500 M?
• Execution in reading-desk metal case.
|
|
