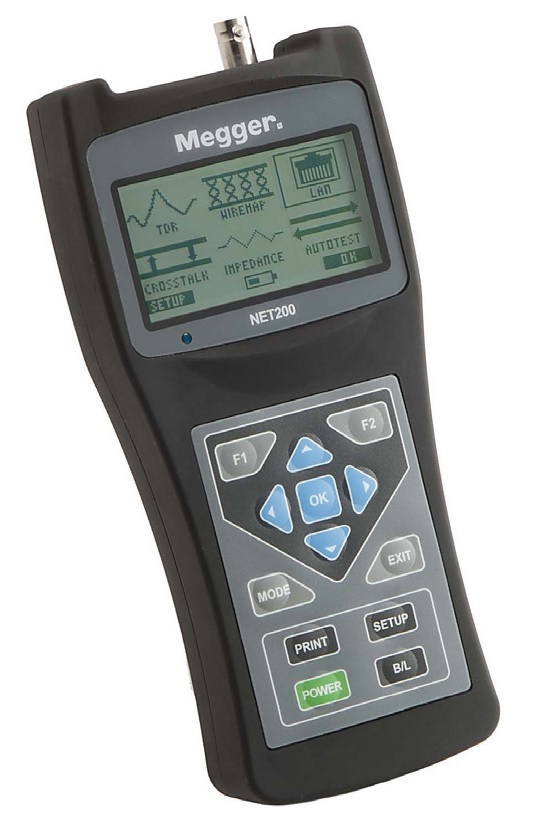

Megger NET200 MTDR 1002-856 cable network tester
OBSOLET PRODUCT ( * OUT OF USE )

Code: Megger NET200 MTDR 1002-856




Datasheet PDF, 0.16 Mb

Description

• Measures logical network performance
• Evaluate capability of link connections and locate faults up to 500 meters
• 1000BASE-T, auto measurement of signal performance, wiremap and length
• Large high resolution backlit display
• 1 kHz analogue tone signal output
• Built in TDR and TDX



  • Evaluate the capability of link connections and locate faults up to 500 meters
  • Detect Wiremap failure (Pass, Fail, full Wiremap details (extended test))
  • RJ45 and BNC connectors
  • 10 BASE-T and 100 BASE-TX Ethernet, half- or full- duplex support
  • 1000 BASE-T, Auto measurement of signal performance, wiremap and length
  • 1 kHz analogue tone signal output suitable for all probe sets





NET200 is an all-in-one and easy-to-use network testing unit measuring logical network performance and the physical condition of network cables. It is the tool of choice, allowing network engineers to install and efficiently maintain local area network (LAN) with 10BASE-T and/or 100BASE-TX based Ethernet protocol.

It provides round-trip time (RTT) testing to measure network speed under dynamic and static configuration protocols and IP scanning to show the information on all terminals connected with the local network. It can also evaluate the capability of link connections such as supported network speed (10BASE-T or 100BASE-TX) and duplexity (half- or full- duplex).

The device provides physical information for the LAN cable under tests such as cable length, faulty positions (open or short) and Wiremap (Pass/Fail).

With the novel high-resolution graphic TDR (Time-Domain Reflectometer) and TDX (Time-Domain Crosstalk), it is possible for the user to locate faulty positions along cables up to 500 meters in length.

The TDR and TDX can also be used with other types of cable, such as coaxial cables for cable TV and HFC networks and telephony cables.

The NET200 is supplied as a kit comprising a complete set of testing cables and adapters, and has one of the largest selection of functions available in its class. This makes the NET200 one of the best feature to value instruments on the market today.



Standard accessories

1 x NET200 MTDR 1002-856



Included accessories

1 x AC-DC Power adapter 2003-184

1 x BNC to F-connector 2003-181

1 x RS232 to USB adapter cable 2003-183

1 x DC Car charge lead 2003-200

1 x Portable bag 2003-189

3 x Power cord (US, EU, UK) 2003-187

1 x Remote identifier #1 2003-180



Optional accessories

Remote identifier #2 2003-193

Remote identifier #3 2003-194

Remote identifier #4 2003-195

Remote identifier #5 2003-196

Remote identifier #6 2003-197

Remote identifier #7 2003-198

Remote identifier #8 2003-199

Mobile printer 2003-201
