Megger FREJA 400 Programma Relay Test System FREJA400

Code: Megger FREJA 400 403 406 409 Programma FREJA400



Datasheet PDF, 2.12 Mb


Description

• FREJA 403 3x60 A at 300 VA per phase.

• FREJA 406 Up to 6 channels: 3 x 60 A and 3 x 15 A

• FREJA 409 Up to 9 channels: 6 x 60 A and 3 x 15 A

• Voltage outputs : Up to four channels 300 V at 150 VA

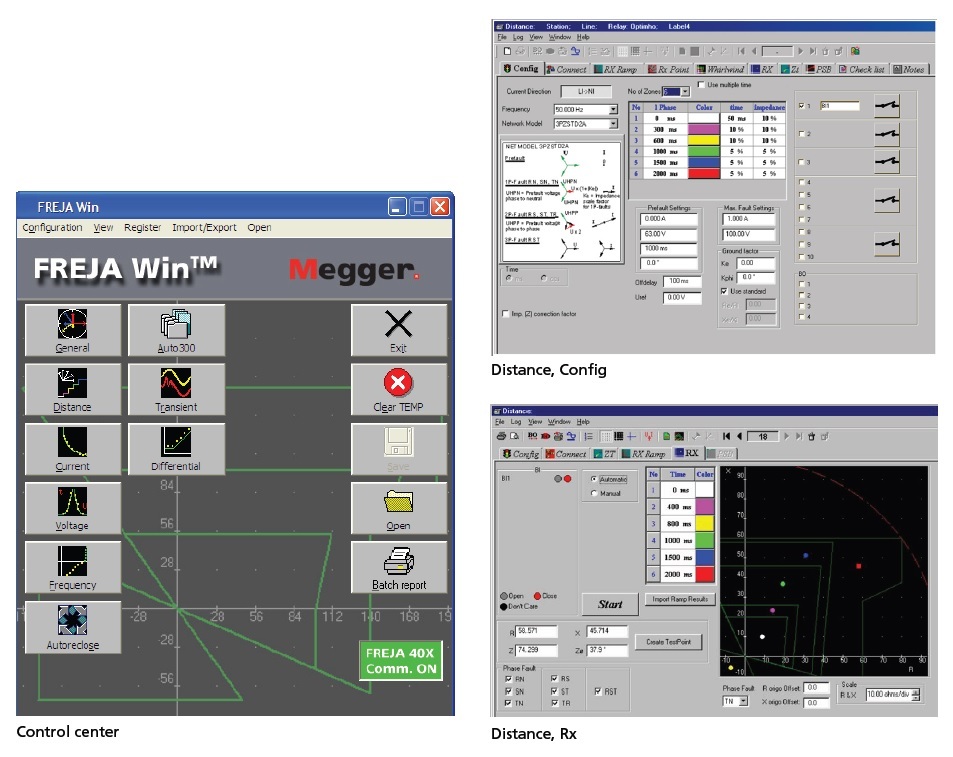

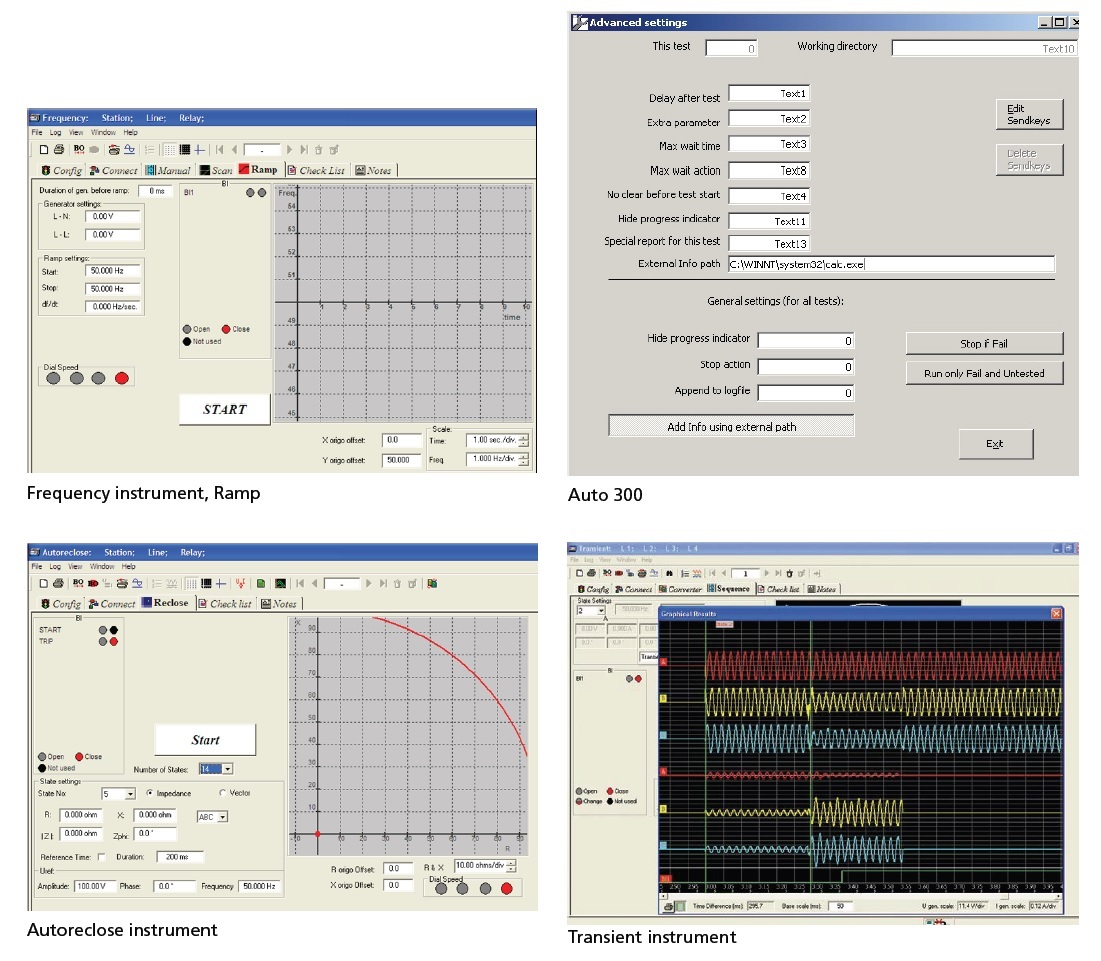

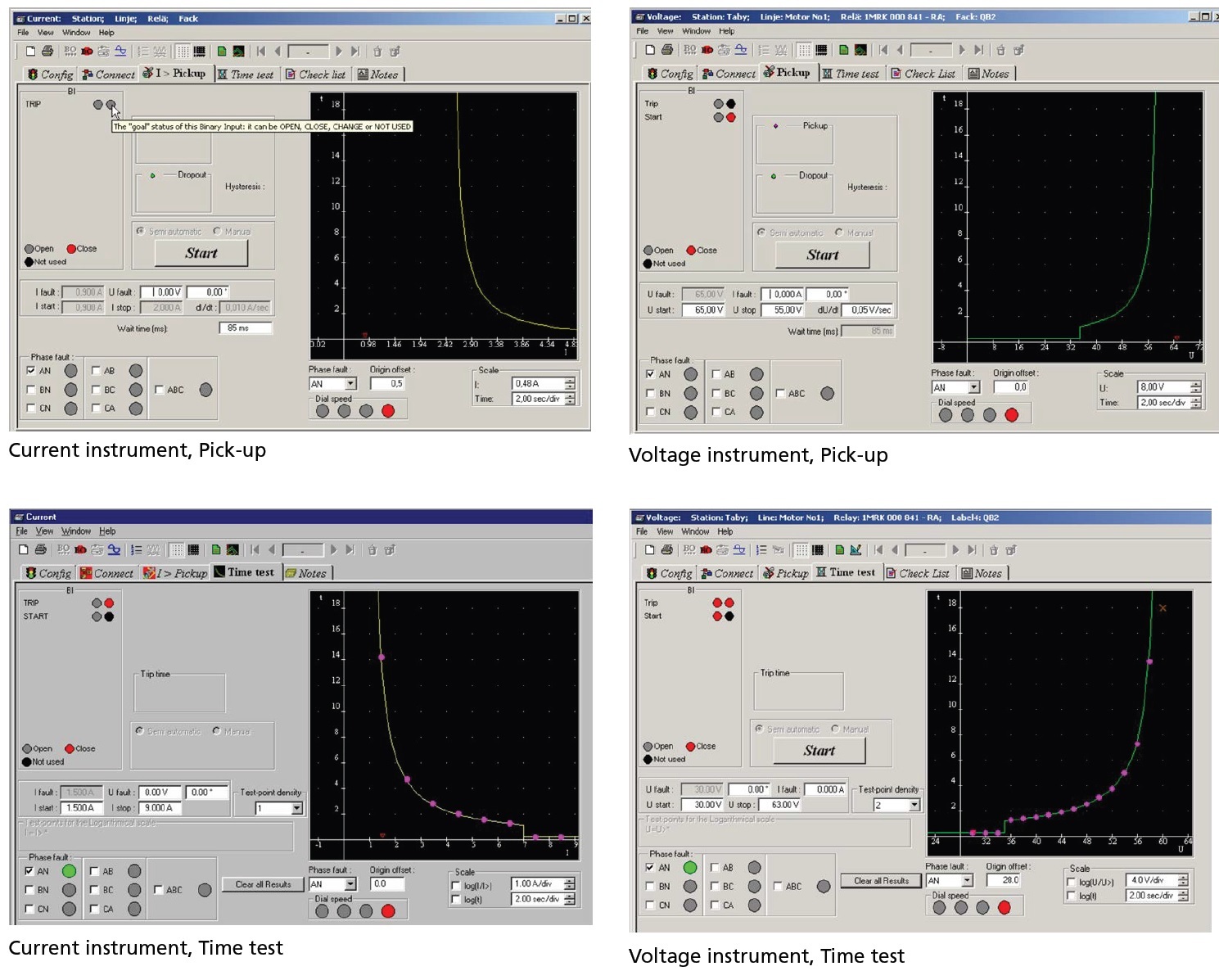

• Fully automated testing using FREJA Win software

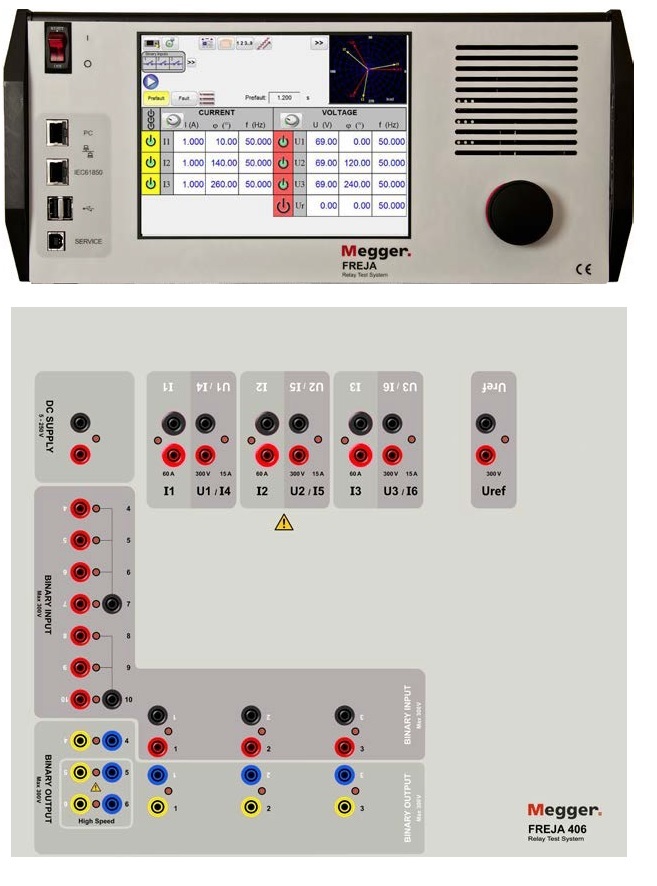

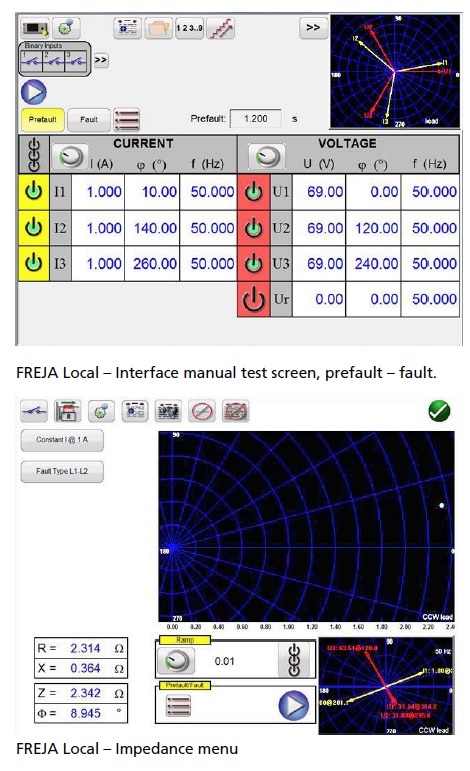

• PC operated or stand alone using the intuitive graphic touch screen
• High current, high power output (60 A / 300 VArms) per phase
• FREJA 409 provides 3 x 120 A in threephase configuration mode
• FREJA 406 provides 6 currents, and FREJA 409 provides 9 currents for transformer differential testing
• IEC 61850 test capabilities

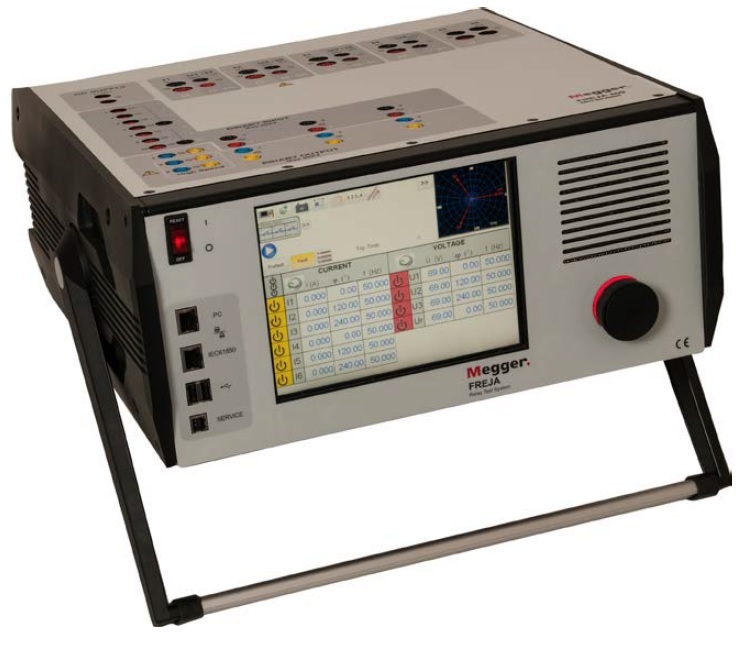

The FREJA 400-series is a new member of the relay testing equipment from Megger, quick and easy to use. The rugged hardware design is built for field use over a wide temperature range, with the possibilities of intelligent software to perform rapid testing.
The instruments have the "smart" combination of high compliance voltage and high current to test all electromechanical, solid-state and numerical-based overcurrent relays, including voltage controlled, voltage restraint and directional overcurrent.

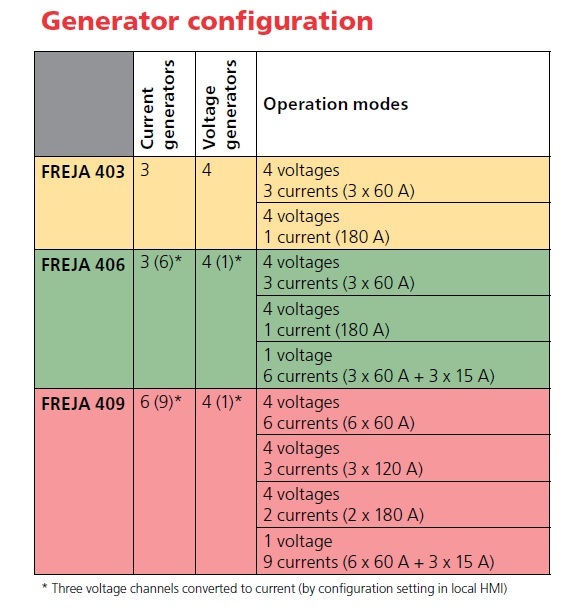

With three current generators and four voltage generators the instruments provides a complete three-phase test system for commissioning of three phase protection systems. The FREJA 406 can provide 6 current generation and FREJA 409 can provide 9 current generation by converting the voltage channels to currents. The generators also provide high power in both the voltage and current channels to test virtually all types of protection relays.



Standard accessories

FREJA 403 Standalone

Excl. FREJA Win, excl. soft case, excl. test leads CF-39000



FREJA 403 (with soft case)

Incl. FREJA Win, soft case, test leads (GA-00033) CF-39090



FREJA 403 (with flightcase)

Incl. FREJA Win, flightcase, test leads (GA-00033) CF-39091



FREJA 406 Standalone

Excl. FREJA Win, excl. soft case, excl. test leads CF-49000



FREJA 406 (with soft case)

Incl. FREJA Win, soft case, test leads (GA-00033) CF-49090



FREJA 406 (with flightcase)

Incl. FREJA Win, flightcase, test leads (GA-00033) CF-49091



FREJA 409 Standalone

Excl. FREJA Win, excl. soft case, excl. test leads CF-59000



FREJA 409 (with soft case)

Incl. FREJA Win, soft case, 2x test leads (GA-00033) CF-59090



FREJA 409 (with flightcase)

Incl. FREJA Win, flightcase, 2x test leads (GA-00033) CF-59091



Recommended options

Optional

FREJA Win

Software CF-8203X

FREJA Win upgrade CF-8282X

MGC IEC 61850 Megger GOOSE configuration software CF-8401X



Optional accessories

Multicable GA-00105

Flight case GD-00265

Soft case GD-00315



Test lead set

With touch-proof contacts.

4 x 0.25 m (0.8 ft) / 2.5 mm2

2 x 0.5 m (1.6 ft) / 2.5 mm2

10 x 2 m (6.5 ft) / 2.5 mm2

Weight: 1 kg (2.2 lbs). GA-00033



GPS200 - MGTR

The GPS receiver GPS200 - MGTR makes it possible

to synchronize two or more FREJA to conduct endto-

end testing. End-to-end testing provides quick,

reliable results showing how two or more protection

relay systems interact. The unit comes with a 15 m

(50 ft) cable and an allweather antenna. Longer

cables can be ordered. CF-90150



Cable organizer

Velcro straps, 10 pcs. AA-00100
