GOODWILL INSTEK GPS-Series

Code: GOODWILL INSTEK GPS-Series




Datasheet PDF, 1.11 Mb


Description

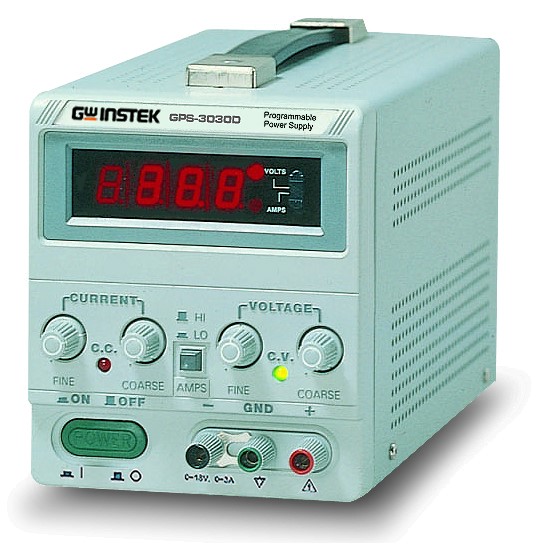

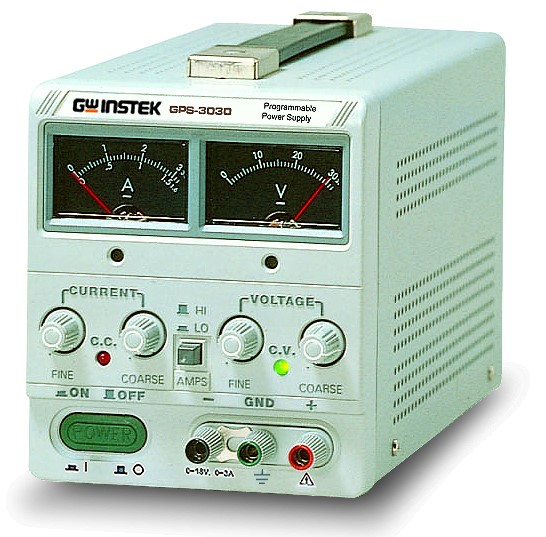

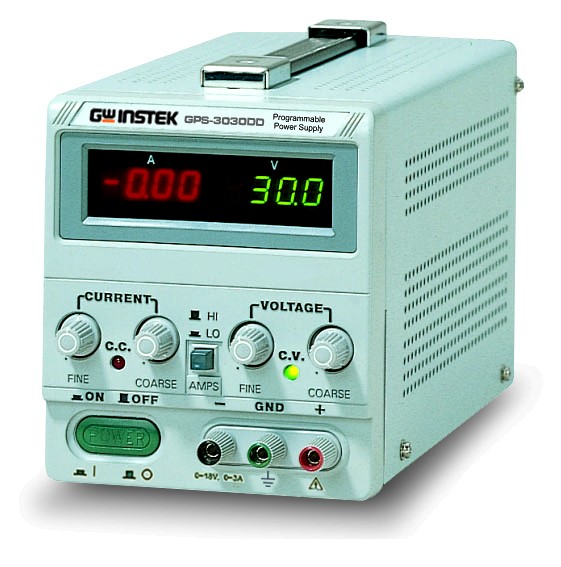

The GPS-Series are single output, 54 to 90W, linear DC power supplies. The GPS-Series include both analog and digital display meters with varying power outputs. The GPS-Series feature Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.



Features:

  • Light and Compact Design
  • 0.01% High Regulation
  • Constant Voltage and Constant Current Operation
  • Remote Control for External Programmability
  • Internal Select for Continuous or Dynamic Load
  • Low Ripple and Noise
  • Overload and Reverse Polarity Protection
  • Series or Parallel Operation
  • Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD
