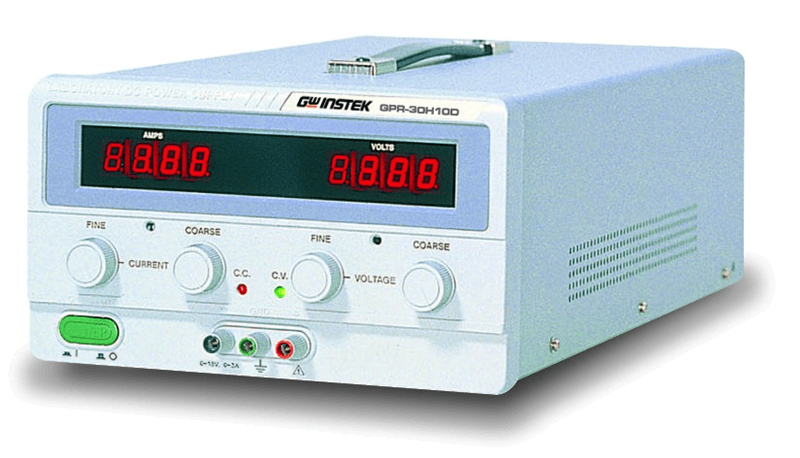

GOODWILL INSTEK GPR-H Series

Code: GOODWILL INSTEK GPR-H Series




Datasheet PDF, 0.48 Mb

Description

The GPR-H Series are single output, 240 to 375W, linear DC power supplies. Ranging from 8 to 300V, the GPR-H Series come in a number of different configurations to suit a variety of different needs.To protect loads, the GPR-H Series feature robust protection measures with overload and reverse polarity protection. Continuous or dynamic output is supported for pulsed current applications such as power amplifier testing. The high regulation and low ripple/noise make the GPR-H Series suitable for high-end bench-top applications requiring precision.



Features:

  • 0.01% High Regulation
  • Constant Voltage and Constant Current Operation
  • Internal Select for Continuous or Dynamic Load
  • Low Ripple and Noise
  • Overload and Reverse Polarity Protection
  • 3 1/2 Digit 0.5" LED Display
  • Internal Select for Continuous or Dynamic Load (for GPR-3510HD/GPR-6060D/GPR-7550D)
