GOODWILL INSTEK SPS-Series

Code: GOODWILL INSTEK SPS-Series




Datasheet PDF, 0.09 Mb


Description

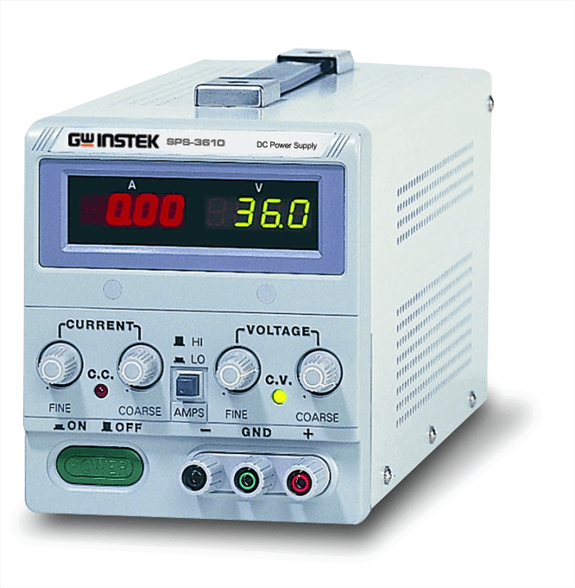

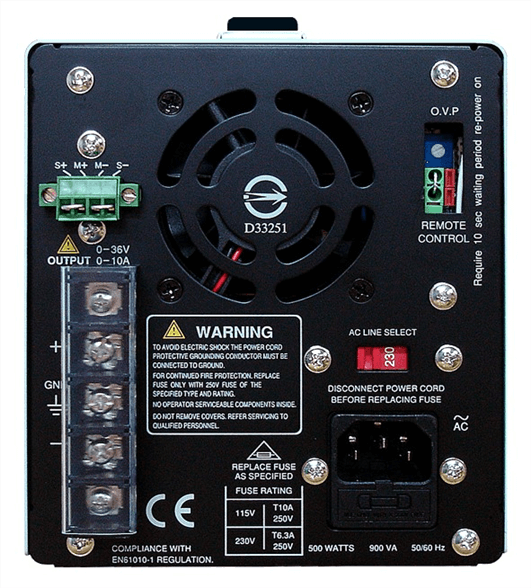

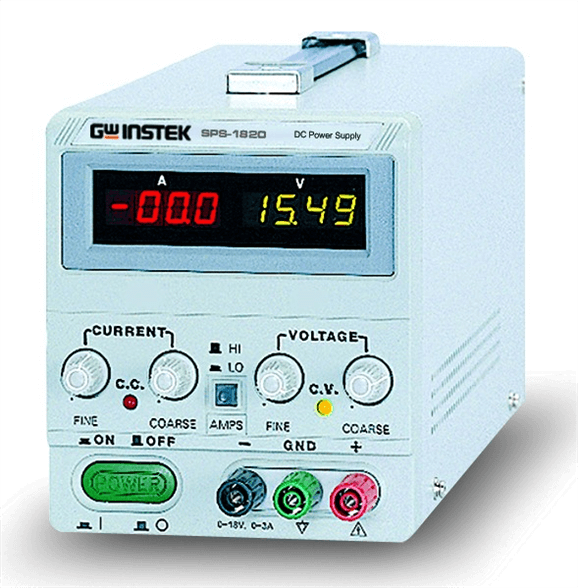

The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.



Features:

  • Dual Measurement Display
  • 0.01 % High Regulation
  • Constant Voltage and Constant Current Operation
  • High Efficiency
  • High Power Density
  • Over Voltage Protection
  • Remote Output ON/OFF Control
