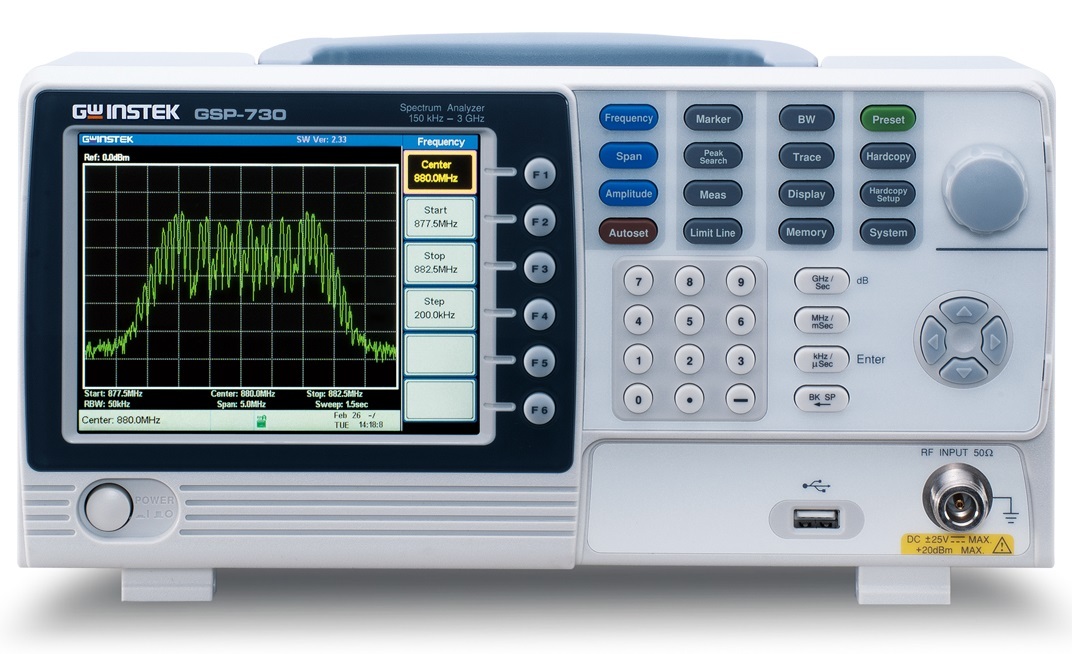

Cheap Spectrum Analyzer 150kHz..3GHz Instek GSP-730

Code: Goodwill Instek GSP-730




Datasheet PDF, 3.31 Mb


Description

  • Frequency Range : 150kHz ~ 3GHz
  • Autoset Function
  • Noise Floor: ?-100dBm
  • RBW Range : 30kHz, 100kHz, 300kHz, 1MHz
  • ACPR/CHPW/OCBW Measurement
  • 3 Traces in Different Colors
  • Split Window Function
  • Limit Line Function
  • Remote Control Software
  • Presentation Material for Training Courses

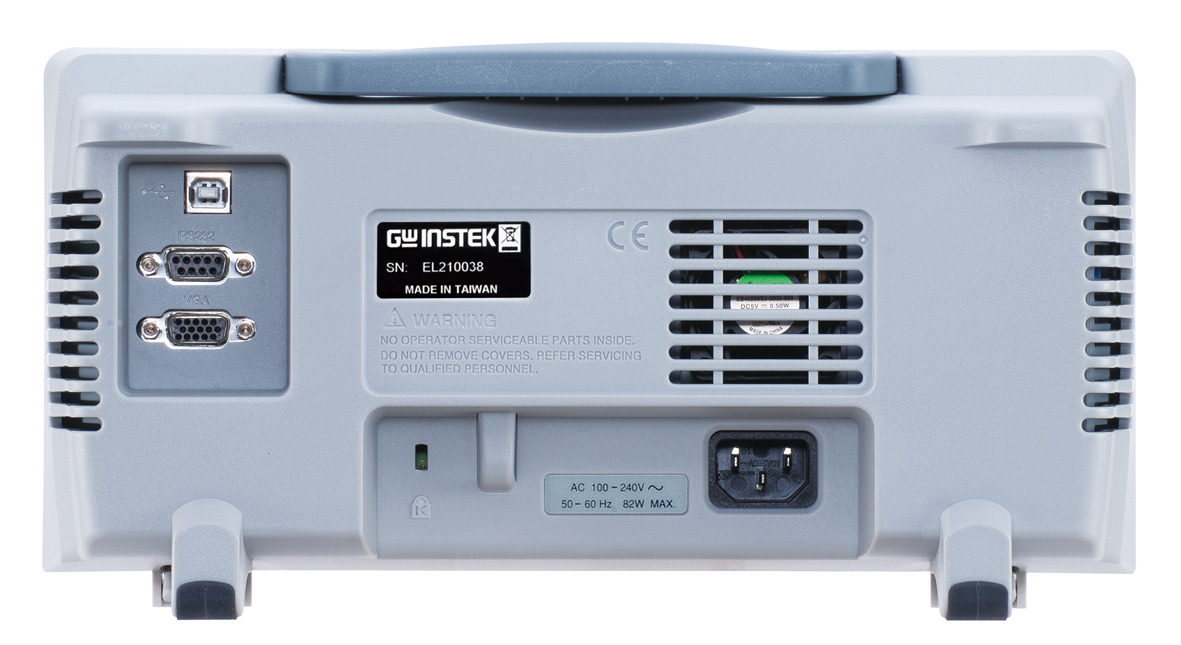

  • Support Interface : USB Device/Host, RS-232C
  • 5.6" TFT LCD with VGA Output

GW Instek GSP-730 is a 3 GHz Spectrum Analyzer mainly developed to fulfill the demands of RF Communication educations. Budget constraint and insufficient teaching tools are normally the two hurdles for schools to provide high-quality courses for RF communication experiments. A moderate spectrum analyzer, GSP-730, featuring full functions should provide, along with GRF-1300 training kit possesses a unique position in the field as an economic turn-key solution for 3GHz RF Communication Experiment courses.

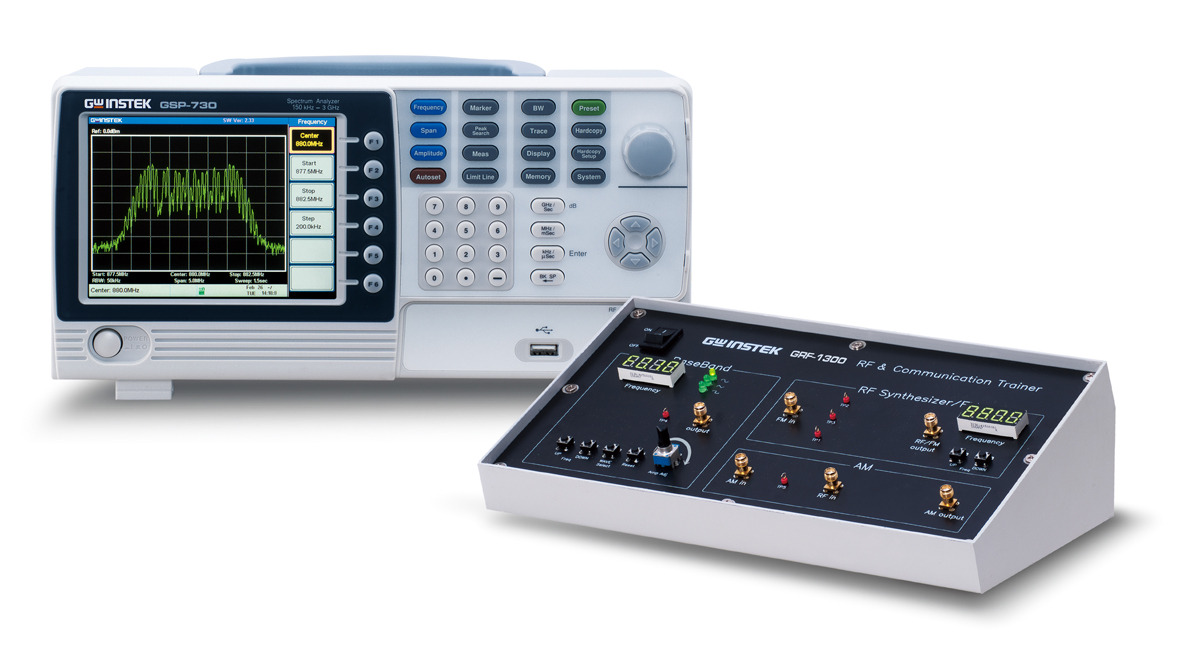

With its components, GSP-730 Spectrum Analyzer, GRF-1300 Trainer and a PC, properly connected, a tangible system is integrated for performing ongoing experiments while the lecture is given. Using a PC, the teacher can present teaching material with PowerPoint slide and simultaneously control GSP-730 and GRF-1300 to perform experiments and get spectrum displays and parameter readings on the PC screen. GSP-730 and GRF-1300 easily transferred the current teaching materials, including the PowerPoint slides, textbook, and a remote control software, into electronic-teaching system.





Standard accessories

GSP-730
Quick Start manual *1, User Manual CD *1, Power Cord *1



Recommended options

GRF-1300
Experiment test book of student version, Remote control software CD, RF Cable *3, Antenna *1, N to SMA adaptor connector, Power Cord *1



Option
Experiment text book of teacher version



Free Download
PC Software Remote Monitor Software
