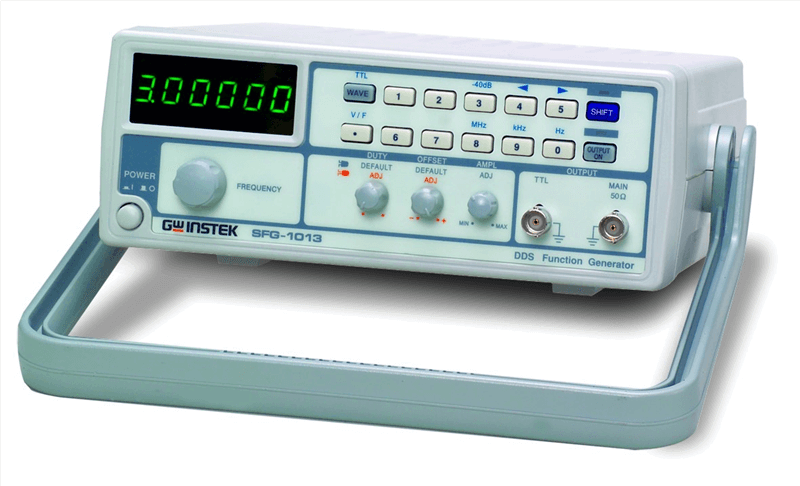

GOODWILL INSTEK SFG-1000 Series

Code: GOODWILL INSTEK SFG-1000 Series




Datasheet PDF, 0.07 Mb


Description

The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.



The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications.



Features:

  • DDS Technique and FPGA Chip Design
  • Frequency Range:0.1Hz~3MHz
  • High Frequency Accuracy : ½ 20ppm
  • High Frequency Stability : ½ 20ppm
  • Max. Frequency Resolution : 100mHz
  • Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
  • Voltage Display (Only SFG-1013)


More products INSTEK

GOODWILL INSTEK GDM-8245

• Dual Display Indicate ACV and Hz,or DCV(ACV) and dBm
• Manual or Auto Ranging
• 0.03% DCV Accuracy
• ACV Measuring Frequency Up to 50kHz

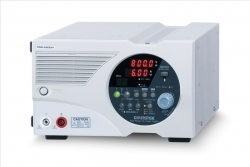

GOODWILL INSTEK PSW-SERIES
