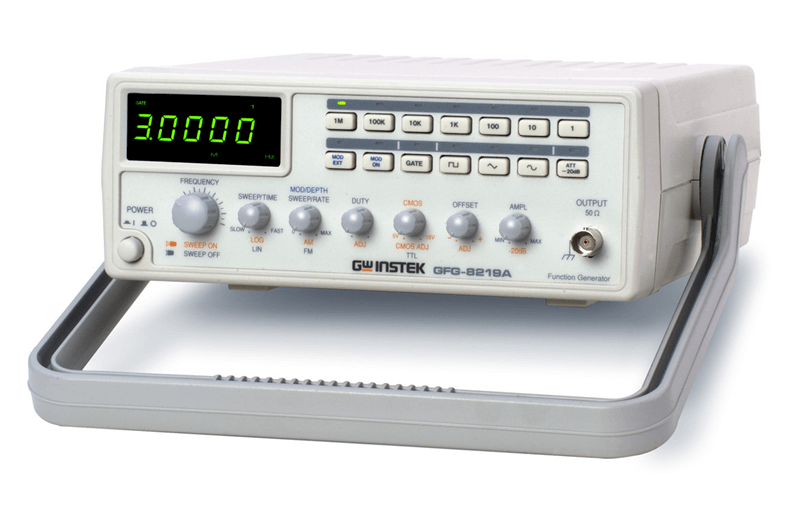

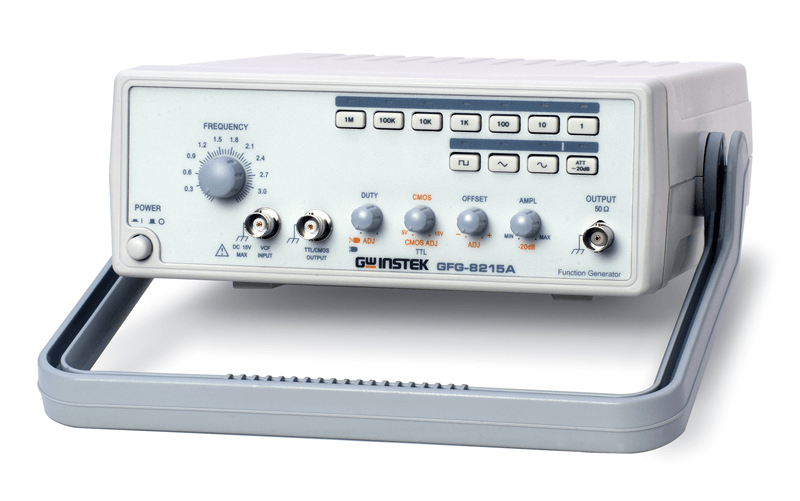

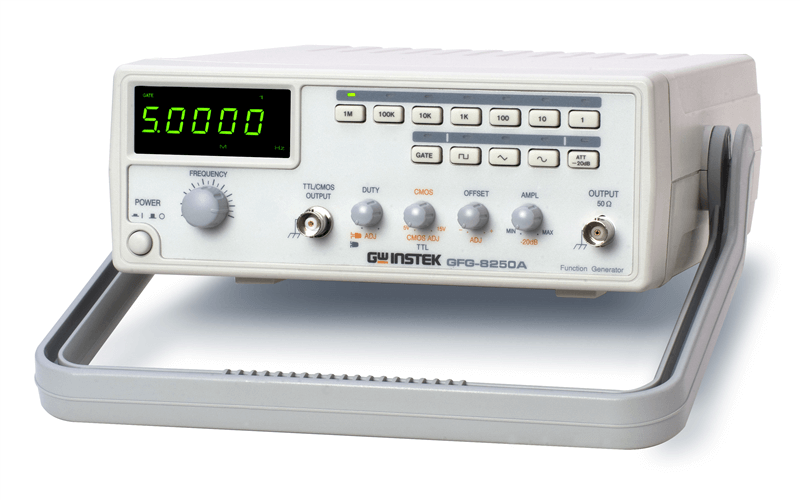

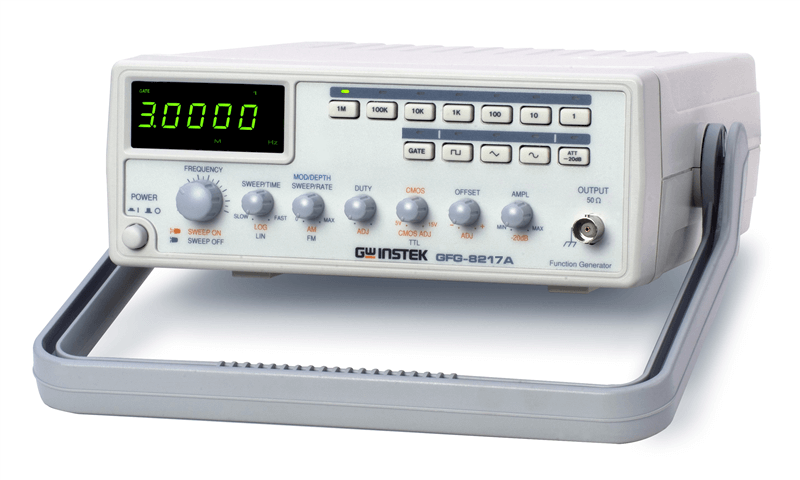

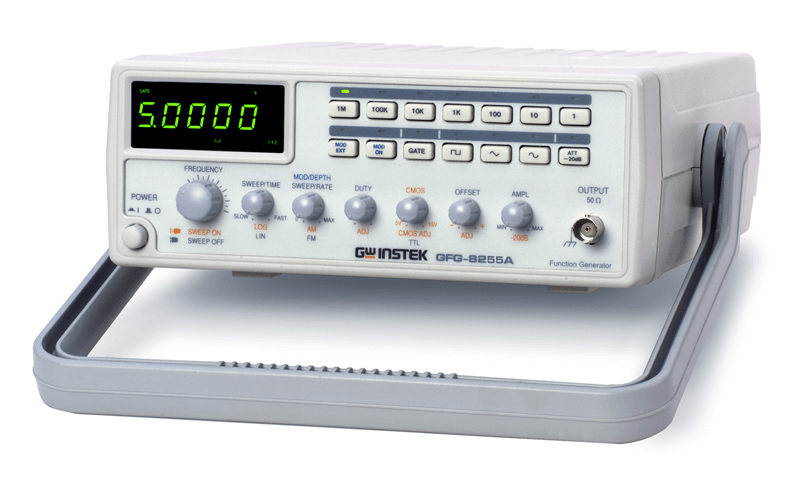

GOODWILL INSTEK GFG-8200A Series

Code: GOODWILL INSTEK GFG-8200A Series



Datasheet PDF, 0.88 Mb


Description

The GFG-8200A product family offers a complete solution in generating signals at the 3MHz/5MHz ranges. All models are embedded with standard functions such as TTL/CMOS/Ramp output, External Voltage Controlled Frequency (VCF), and built-in 6-digit counter (except for GFG-8215A).



Further versatility of Logarithmic and Linear sweep is added into GFG-8255A/8219A/8217A, while GCV output feature and AM/FM modulation are available in GFG-8255A/8219A. All these integrated functions and user-friendly operations of the GFG-8200A series are made to accommodate the applications in audio response testing, vibration testing, servo system evaluation, ultra sound application, etc



Features:

  • Frequency Range: 0.3Hz ~ 3MHz (GFG-8215A/8216A/8217A/8219A)
  • Frequency Range: 0.5Hz ~ 5MHz (GFG-8250A/8255A)
  • Waveforms: Sine, Triangle, Square,Ramp, TTL and CMOS Output
  • External Voltage Controlled Frequency (VCF) Function
  • Two-Steps (-20dBx2) and Variable Attenuator
  • Built-In 6 Digits Counter with INT/EXT Function up to 150MHz(Except GFG-8215A)
  • INT/EXT AM/FM Modulation (GFG-8219A/8255A)
  • GCV Output for Synchronization (GFG-8219A/8255A)
