Digital Oscilloscope Dual Independent Floating Isolated Channels 20MHz Instek GDS-122

Code: Gw Instek GDS-122




Datasheet PDF, 0.18 Mb

Description

  • 20MHz Bandwidth
  • 100MS/s Real-Time Sampling Rate
  • True RMS Multimeter: Volt, AMp, Ohm, Continuity, Diode
  • Dual Independent Floating Isolated Channels
  • Trigger Mode: Free Run, Single Shot, Edge, Video
  • USB Interface
  • 6 Hour Capacity Li-ion Rechargeable Battery
  • 3.8" Color LCD, Resolution: 320 x 240
  • Light Weight: 690g

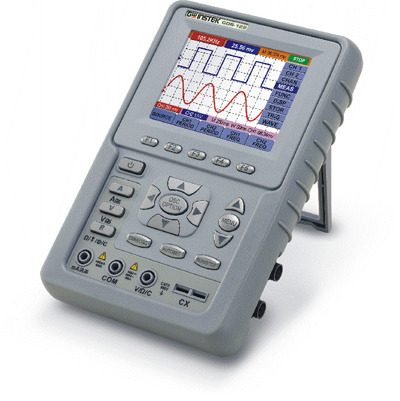

The GDS-122 is a reliable and handy instrument for all test and electronic engineers. This model is designed to carry out complicated on-site tests. The Dual-channel unit features 20MHz of bandwidth with a sampling rate of 100MS/s along with multimeter functionality. The color LCD display with a resolution of 320 x 240 helps you to read waveforms easily, especially when displaying a lot of data or multiple waveforms. The compact design with the total weight of 690g allows engineers to carry it around easily. The protective cover of the unit is insulated and specially designed to guarantee endurance and reliability in tough environments. The rechargeable Li-ion battery ensures convenience for on-site testing.



Standard accessories

User manual x1

AC-DC Adaptor x1

Probe-T5060: 60MHz (10:1/1:1) switchable passive probe (one per channel)

Multimeter test lead x1

Serial data communication cable x1

Extension module for small capacitance measurement x1

Extension module for large current measurement x1
