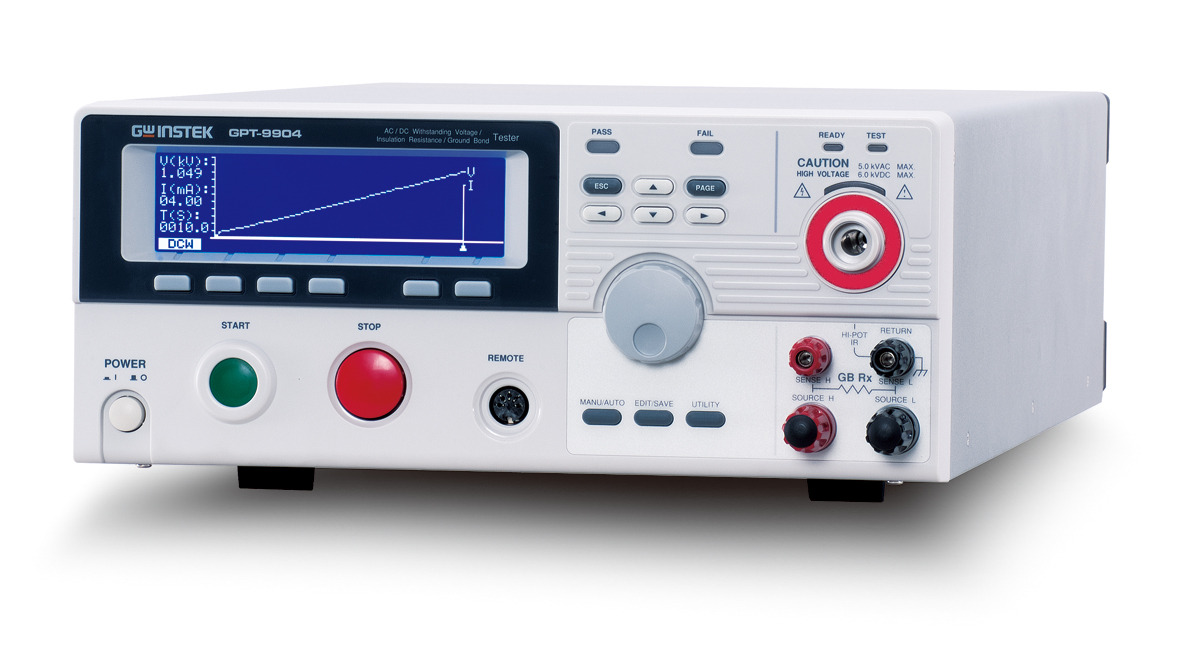

Gw Instek GPT-9901A GPT-9902A GPT-9903 GPT-9904 Hipot Withstanding Tester

Code: Goodwill-Instek GPT-9901A GPT-9902A GPT-9903 GPT-9904 GPT9901A GPT9902A GPT9903 GPT9904




Datasheet PDF, 1.05 Mb

Description

  • 500VA AC Test Capacity
  • 240x64 Ice Blue Dot matrix LCD
  • Sweep Function for DUT characteristic analysis
  • Insulation resistance measurement up to 50GO(GPT-9903/9904)
  • Manual/Auto Mode
  • Function Key for quick selection
  • High intensity flash for caution & Status indication
  • Safety INTERLOCK function
  • Zero Crossing Turn-on Operation
  • Controllable Ramp-up Time
  • True RMS Current Measurement
  • High resolution: 1uA for measuring current, 2V for setting voltage
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Max. 100 memory block for test condition (step) setting. And each step can be named individually.
  • Remote terminal on the front panel for ½start½ and ½stop½ control
  • Rear panel output available
  • Interface : RS-232C, USB device, Signal I/O and GPIB (optional)


GPT-9904  AC 500VA AC/DC Withstanding Voltage / Insulation Resistance / Ground Bond Tester

GPT-9903  AC 500VA AC/DC Withstanding Voltage / Insulation Resistance Tester

GPT-9902A  AC 500VA AC/DC Withstanding Voltage Tester

GPT-9901A  AC 500VA AC Withstanding Voltage Tester



Standard accessories

Quick Start Guide x 1,

CD x1(completed user manual)

Power cord x 1,

Interlock key x 1,

Remote terminal male plug x 1,

Test lead GHT-114 x 1 for GPT-9903/9902A/9901A

Test lead GHT-114 x 1, GTL-115 x 1 for GPT-9904



Recommended options



Option

Opt.1 GPIB card



Optional Accessories

GHT-113   High Voltage Test Pistol

GHT-205   High Voltage Test Probe

GTL-232   RS232C Cable, 9-pin Female to 9-pin, null Modem for Computer

GTL-247   USB Cable, A-A type, approx. 1.8m

GTL-248   GPIB Cable, approx. 2m

GRA-402   RACK Adapter Panel (19½, 4U)
