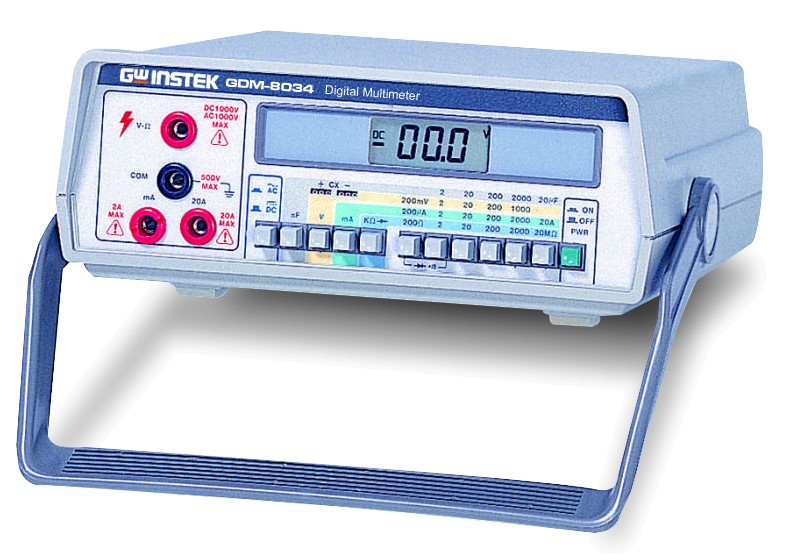

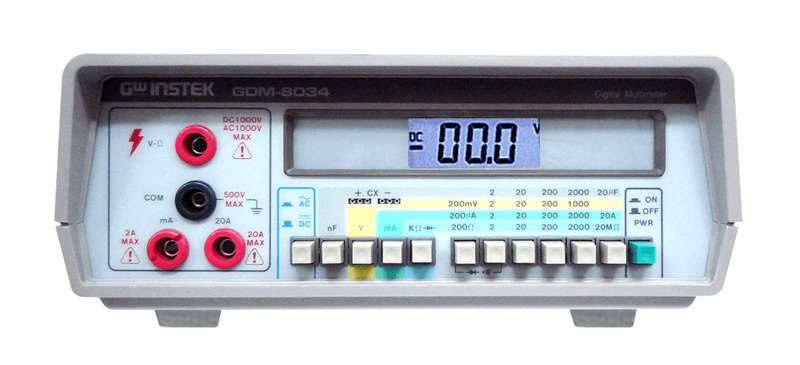

GOODWILL INSTEK GDM-8034

Code: GOODWILL INSTEK GDM-8034




Datasheet PDF, 0.57 Mb


Description

The GDM-8034 is the most affordable and cost-effective bench-top digital multimeter in the GW Instek range. A large 0.5" LCD with 3 1/2 digits always provides a crisp display of the measurement results. A series of powerful built-in functions, such as AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test, and an Audible Continuity Beeper, make application measurements simpler and easier. A compact profile, sufficient functionality, and excellent cost to performance make the GDM-8034 best suited for educational institutions such as schools and training centers.



Features:

  • 8 Functions AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test and Audible Continuity Beeper
  • High Voltage 1000V and 20A Current Range
  • 0.5% Basic DCV Accuracy
  • LCD Display
