THT70 Infrared Thermal Camera 388x284 pixels resolution
OBSOLET PRODUCT ( * OUT OF USE )

Description

THT70 is a powerful advanced user-friendly infrared thermal camera designed for detailed analysis to be performed by thermography operators. The instrument's core is the icon structure menu available through a capacitive TFT high brightness touchscreen LCD allowing really intuitive operations with finger touch selections. THT70 saves thermal and visual images into micro-SD cards under a standard JPG format also allowing data transfer to PC via USB interface. Live active IR data video recording is also available. THT70 has an IR sensor with wide resolution (384x288pxl) which makes it perfectly suitable for preventive maintenance operations on any industrial application. The instrument has a wide temperature range (max 400°C) and a lot of internal features such as the possibility to perform advanced analysis including spots, lines, areas and isothermal on each image. This instrument is ideal to check mechanical devices, detect electric problems, check hydraulic systems, verify forced ventilation circuits, etc.

Function

• Measurement range from -20°C to 400°C
• Readout in °C, °F, °K
• Wide color LCD display with capacitive touch-screen
• 8 color standard palette
• 10 customized color palette
• Manual image focusing

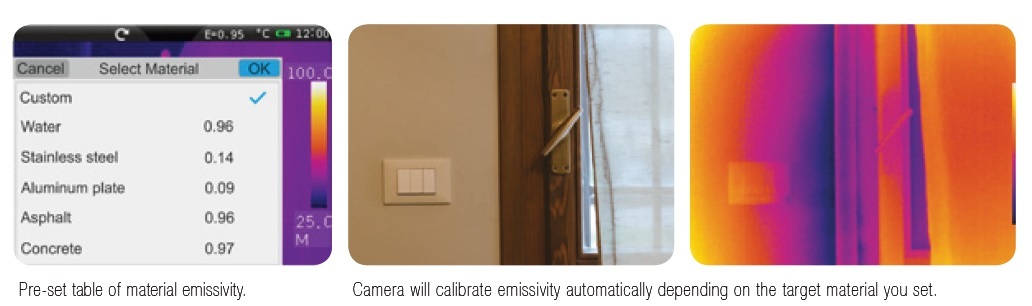

• Selectable emissivity values
• Integrated emissivity table of most common materials
• Correction by reflection temperature, distance and relative humidity
• 3 movable cursors
• Laser pointer (Class 2)
• Integrated illuminator
• Integrated visible image camera
• Advanced analysis: Spot, Lines, Areas and Isotherms
• Alarm thresholds on temperature
• Resolution of IR sensor: 388x284 pixel
• Fusion PiP feature to combine infrared and visible images
• Voice and text notes
• IR pictures saved on SD card under JPG format
• IR videos saved on SD card under MPEG4 format
• Recording real-time IR videos with USB PC connection
• Video output (PAL/NTSC)
• Micro SD card memory
• Rechargeable Li-ION battery
• USB port for PC connection

A very gifted one.

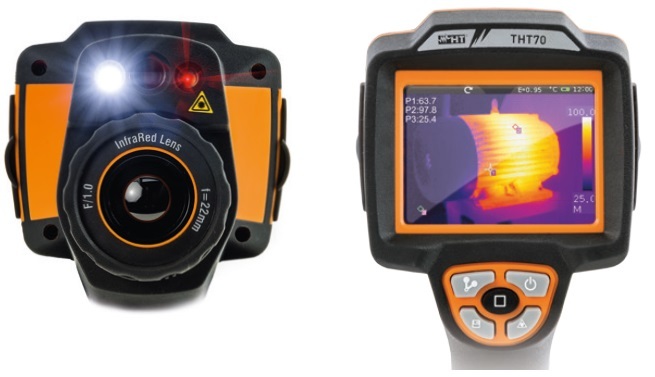

> 1. Optional Interchangeable Lenses

> 2. LED Flash

> 3. Camera for visual images

> 4. Laser Pointer

THT70 thermal imaging camera can perform all inspections in all conditions up to 400°, providing maximum flexibility with optional interchangeable lenses from 11mm, 22mm, 38mm. The LED flash, the Laser Pointer and Camera Visual will help you to orient yourself even in low light conditions.

Best display ever.

›  3,5" Capacitive touchscreen

›  Wide ed extra bright

›  Superior sharpness and image quality

›  Oversampling tecnology

New THT thermal imaging cameras are provided with capacitive touch-screen LCD of the latest generation. Thanks to "oversampling" technology pictures will be always clear with a degree of detail, with the best display even in the full light

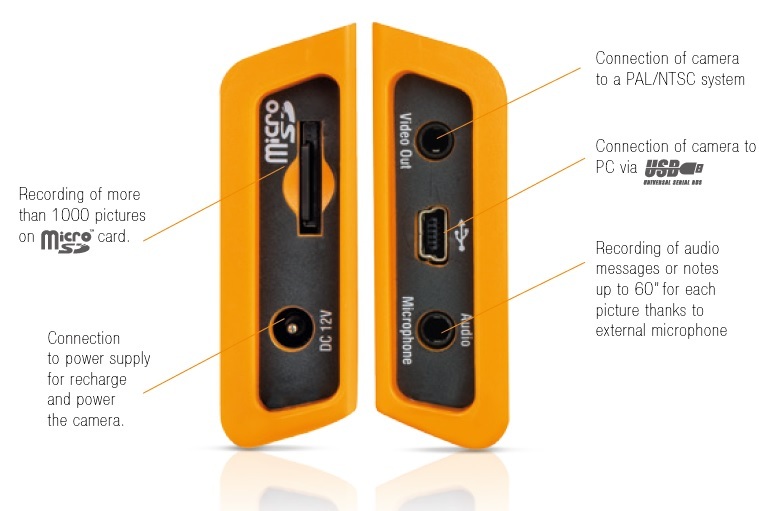

Stay Connected.

›  USB 2.0 PC connection

›  Microphone input for audio notes

›  Video output

›  MicroSD data saving

›  DC 12V plug for recharge/power supply.

With the new THT thermal imaging cameras you’ll be able to effect simultaneously:

•  Inspections while camera is powered by plug.

•  Projection of videos in real time through Video Out.

•  Saving hundreds of photos on 4GB MicroSd card.

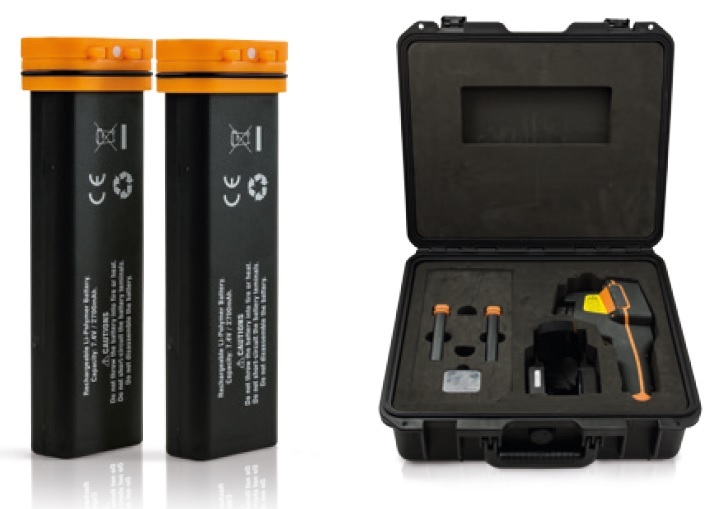

Unstoppable. Unbreakable.

›  Two 4V 2700mAh Li-ION rechargeable batteries**

›  Up to 4 and a half hours of continuous use per pack

›  Built-in charger and external charger

›  Hard carrying case* to carry both camera and

   accessories

Continuous use is possible. Camera is provided with 2 Li-ION batteries each granting 4.5 hours of continuous use. A 12 volt input can anyway be used both for charging the battery while it is inserted, and for longer duration (for example using a tripod).

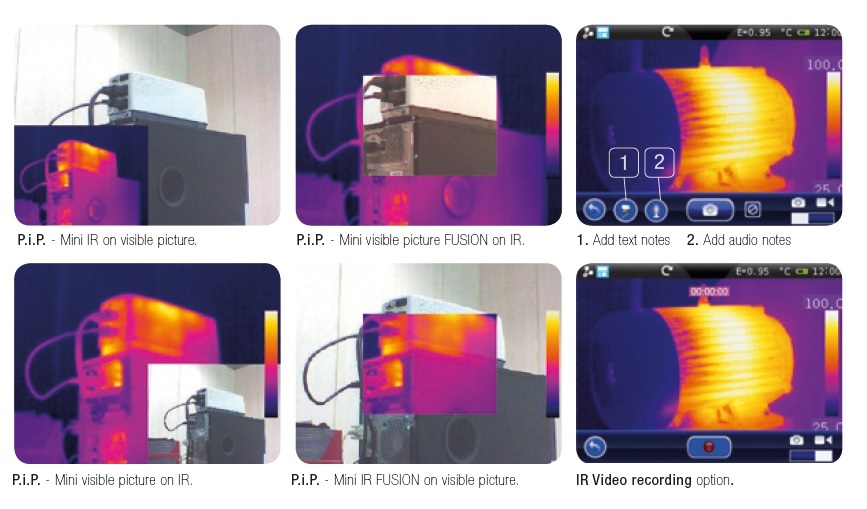

Not just infrared.

› Picture in Picture tecnology*

› Visible spectrum

  thermal imaging overlap*

› Video IR recording*

› Audio notes

› Text notes

Finding a way? It is no longer troublesome.

Thanks to PiP technology thermal and visual pictures can be overlapped and mixed.

Sound and text notes can be added, making each test complete and thorough.

You can test easily as you are using a high performance tester.

IR video recording will enable you to monitor quickly and effectively temperature over a some period of time.

So, so sensitive.

› Thermal sensitivity 0,06°C*

› Temperature range -20/+400°C

› Temperature alarm setting

› Picture frequency 50Hz

Thermal sensitivity?

It’s hot today, temperature is 35.06°C.

Never been so accurate! Temperature range from -20°C to 400°C with thermal sensitivity of 0.06°C is very powerful thanks to a 50Hz updating frequency. After setting an alarm temperature threshold THT camera will warn user as soon as such a threshold is overcome.

Simply smart.

› Innovative display

› New icon menu

› Simple and smart interface

› Fast access to all commands

› Easy and fast updates

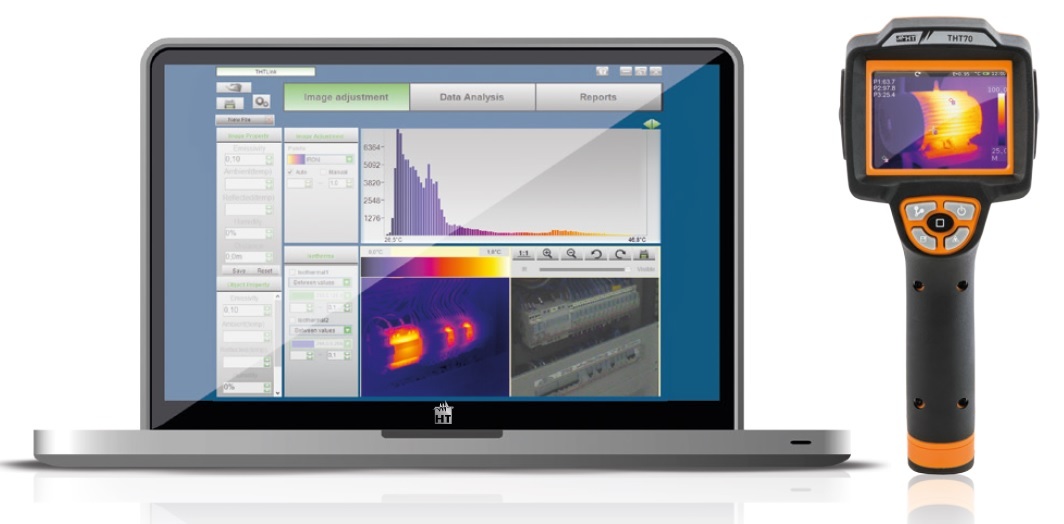

THTLink. That’s it.

› Thorough analysis

› Picture Adjustment

› Creation of professional reports

New software THT Link will enable you to make out thorough and professional reports quickly and easily. Adding pointers, creating areas, lines, polygons will be extremely easy and this thanks to new THT Link interface.
