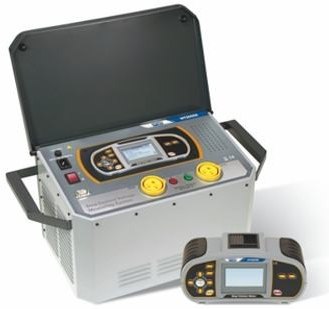

The HT2055 model is composed by a station unit and a meter unit in way to perform step/contact voltage measurements on electrical installations (typical HV power station) with nominal test current up to 50A according to the international guidelines. Both units, initially synchronized in time and current, can perform an exact calculation of step and contact voltage applying the real test current measured by the station unit. A internal DSP filtering also perform the automatically compensation of the noise voltage disturb on the earth system. The instrument permits also the earth resistance measurement with 3-wire method and the ground resistivity with 4-wire Wenner method. All results can be saved inside internal memory of the meter unit and download to PC with supplied Windows dedicated software

STANDARD

CE mark
EN 61010-1
LVD Directive 2006/95/EEC
EMC Directive 2004/108/EEC

FUNCTION

Step/Contact voltage with separated units
Synchronization between units
Test current up to 50A
LCD dot matrix display on both units
Earth resistance measurement
Ground resistivity measurement
Internal memory for saving results
USB and RS-232 ports for communication between units and PC
DSP filtering for compensation noise disturb
Dedicated Windows software

Standard accessories

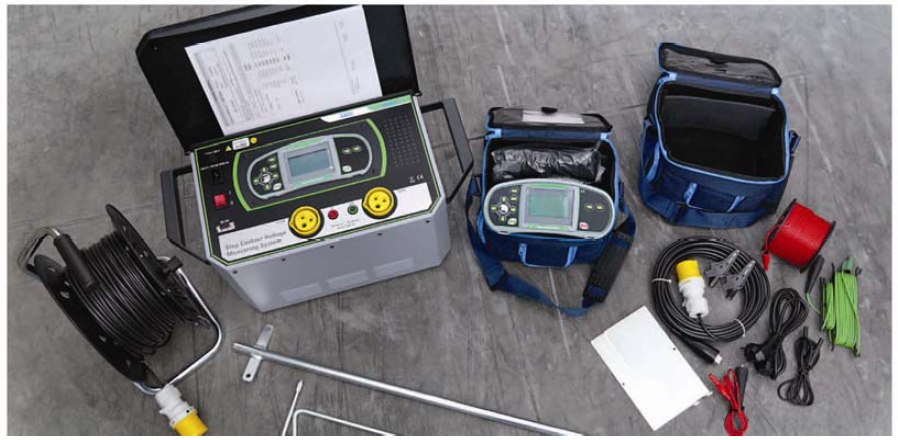

Included accessories:

Station unit HT2055S
Meter unit HT2055M
Power cord for HT2055S unit
Metal current probe, 1m length
Metal voltage probe, 60cm length
Metal plate (200x100mm), 2 pcs
Test cable black, 50m, 10mmq, with alligator clip, with industrial plug, on wheel
Test cable black, 10m, 10mmq, with alligator clip, with industrial plug
Test cable red, 50m, on wheel
Test cable green, 10m, with alligator clip, on wheel
Test cable red, 1m, with alligator clip
Test cable black, 1.5m
Test cable black, with plug for HT2055M, 2x3m
Alligator clip black, 4 pcs
6 x 1.2V rechargeable batteries NiMH type AA, LR03
External adapter 100-240V AC / 12V DC
USB cable
RS-232 - PS/2 cable
"TeraView" software on CD-ROM
Soft carrying bag, 2 pcs
Belt for use of HT2055M unit on neck
User manual
ISO9000 calibration certificates
Wood carrying case

Recommended options

Optional accessories:

Metal current probe, 1m length
Metal voltage probe, 60cm length
