I-V600 Advanced multifunction instrument for I-V curve measurements up to 1500V and 40A

Code: HT I-V600 IV600 IV-600 HV0IV600



Datasheet PDF, 1.46 Mb


Description

I-V600
Advanced multifunction instrument for I-V curve measurements up to 1500V and 40A

I-V600

I-V curve tracer for maintenance and troubleshooting of photovoltaic systems up to 1500V and 40A

Performs tests and measurements on PV modules using the most widespread technologies, including the latest high-efficiency models*

  • I-V curve tracing of mono-facial and bi-facial PV modules and strings up to 1500V/40A according to IEC/EN60891
  • SOLAR03 remote unit with Bluetooth connection
  • Up to 3 reference cells to measure front-side and rear-side radiation according to IEC TS 60904-1-2
  • Database of over 30,000 photovoltaic modules manageable via connection with the new HT AGORÀ software (downloadable in the Download Area)
  • Measurement throughput up to 6.5 MW/hr with NO cool-down required, independently on the environmental temperature
I-V600 allows field tracing of I-V curve of modules and strings up to 1500V and 40A. Once traced the I-V curve, thanks to the user updatable database of modules, I-V600 compares the measured data to the nominal values as provided by the manufacturer of the module/string under test to return a clear OK/NOT OK response. Communication to the remote unit SOLAR-03 is granted up to 100m (in free field), and the logging function in case the communication was impossible (obstacles such as floor, concrete structures, etc.), it is always possible to trace the I-V curve regardless the environment the installation is in.
I-V600 traces the I-V curve of mono-facial and bi-facial modules. According to IEC technical specification TS 60904-1-2, in addition to the front-side radiation, I-V600 measures the back-side radiation by two different sensors (to consider the rear side irradiance non-uniformity).
I-V600 drives up to 3 solar radiation reference cells, but no more tons of parameters to set and high risk of misconfiguration. I-V600 automatically recognizes the calibration parameters of the reference cells connected.
Running out of battery power is every professional's worst nightmare. Finding yourself without battery power in the middle of nowhere with a job to be delivered within hours would put anyone in trouble.



*please refer to the user manual and the technical specifications of the device

Functions
  • I-V curve tracing of PV modules and strings1500V/40A
  • Open circuit voltage Voc of PV modules and strings1500V
  • Short circuit current Isc on PV modules and strings40A
  • Quick IVCK test for measuring Voc and Isc on PV modules and strings1500V/40A
  • Use of SOLAR-03 remote unit with Bluetooth connection
  • Measurement of direct (front side) irradiation with reference cellwith SOLAR03 remote unit (standard accessory)
  • Measurement of albedo (back side irradiation) with up to 2 reference cellswith SOLAR03 remote unit (standard accessory)
  • Temperature measurement of cell and environmentwith SOLAR03 remote unit (standard accessory)
  • Rechargeable or alkaline AA battery powered
  • Mains power supply and battery charger
  • PV power supplyvia the measuring inputs
  • Measurement categoryCAT III 1500VDC, max 1500VDC among inputs
  • Customizable PV module database> 40000 internal memory
  • Measurement Throughput6.5 MWh/hr (@ Voc=1500V, Isc=40A), NO cool-down required, independently on the environmental temperature
  • Backlit LCD color display with touchscreen
  • Display rotation to use the instrument upside down
  • Intuitive icon menu
  • Internal memory9999 I-V curves
  • External memorymicroSD
  • PC interface with software for Windows and Mac
  • Integrated WiFi for connection to smartphones and tablets
  • Auto power off
  • Help on line on the display
  • Size (LxWx H) (mm)335 x 289 x 155
  • Weight in kg (batteries included)6





Standard accessories

Codmetel: HV0IV600
STANDARD ACCESSORIES
Quick Guide and Downloadable Manual
Quick Guide and Downloadable Manual
Calibration report
Calibration report
M304
M304
YABAT0004001
YABAT0004001

A0061
A0061

HT professional backpack
HT professional backpack

SOLAR03
SOLAR03

PT305
PT305

HT305
HT305

SP-2003
SP-2003

C2010
C2010

HTAgorà software downloadable online (Support and Downloads Area)
HTAgorà software downloadable online (Support and Downloads Area)
KITPVMC415
KITPVMC415

YABAT0003000 (18 pieces)
YABAT0003000 (18 pieces)



Recommended options

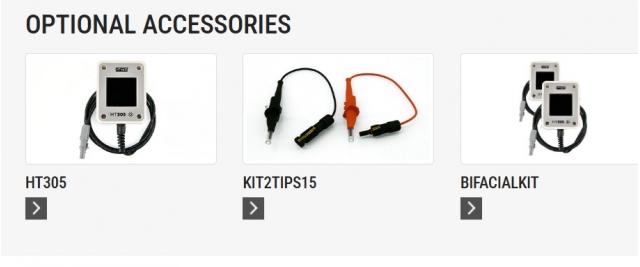

OPTIONAL ACCESSORIES
HT305
HT305

KIT2TIPS15
KIT2TIPS15

BIFACIALKIT
BIFACIALKIT
