Brand: Hameg

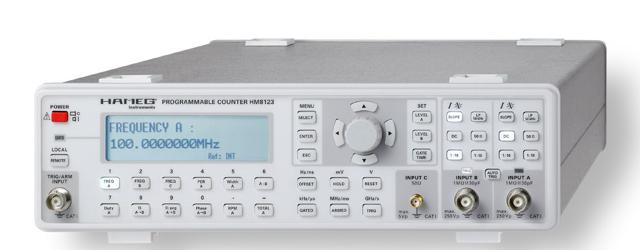

Universal Digital Frequency Counter 3 GHz Hameg HM8123

Code: Hameg HM8123




Datasheet PDF, 0.41 Mb

Description


    • Measurement Range 0Hz-3GHz
    • 2 Measurement Inputs DC-200MHz, 1 Measurement Input 100MHz-3GHz
    • Input Impedance A/B: 1MO/50O (switchable), Sensitivity 25mVrms
    • Input Impedance C: 50O, Sensitivity 30mVrms
    • 400 MHz Time Base with 0.5ppm Stability
    • 10-Digit Resolution at 10s Gate Time
    • 9 Measurement Functions, external Gate and Arming
    • Input for external Time Base (10MHz)
    • Standard: TCXO (Temperature Stability: ±0.5 x 10-6)
    • Optional: OCXO (Temperature Stability: ±1 x 10-8)
    • Intuitive One-Pushbutton Operation each Function directly addressable
    • Galvanically isolated USB/RS-232 Interface, optional IEEE-488 (GPIB)


Standard accessories

  • Operator’s Manual


Recommended options

  • HZ20 Adapter, BNC to 4mm banana
  • HZ24 Attenuators 50 O (3/6/10/20 dB)
  • HZ33 Test Cable 50 O (BNC-BNC) 0.5 m
  • HZ34 Test Cable 50 O (BNC-BNC) 1.0 m
